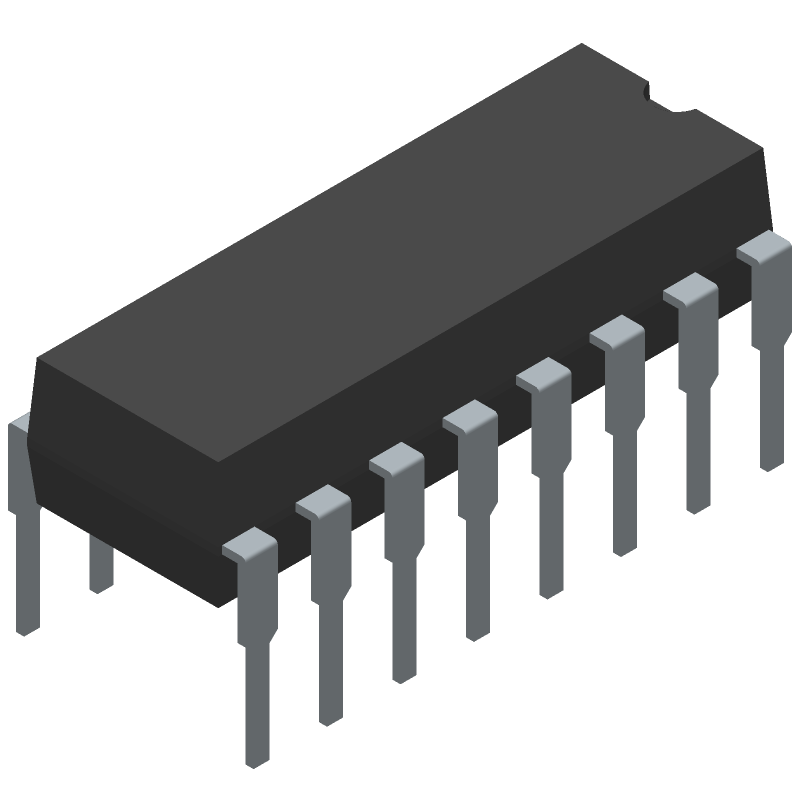

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HIN232IPZ by Renesas Electronics Corporation
Results Overview of HIN232IPZ by Renesas Electronics Corporation
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Industrial Automation
Audio and Video Systems
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
HIN232IPZ Information
HIN232IPZ by Renesas Electronics Corporation is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for HIN232IPZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73K3920
|
Newark | Transceiver Dual Rs232, Dip16, 232, Ic Type:Rs232 Transceiver, No. Of Receivers:2Receivers, No. Of Transmitters:2, Communication Mode:Full Duplex, Data Rate Max:120Kbps, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Fail Safe:- Rohs Compliant: Yes |Renesas HIN232IPZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 4079 |
|
$0.6370 / $0.9560 | Buy Now |
|
DISTI #
HIN232IPZ-ND
|
DigiKey | IC TRANSCEIVER FULL 2/2 16PDIP Min Qty: 1 Lead time: 12 Weeks Container: Tube |
1092 In Stock |
|
$0.6375 / $2.4100 | Buy Now |
|
DISTI #
73K3920
|
Avnet Americas | Dual Transmitter/Receiver RS-232 16-Pin PDIP - Bulk (Alt: 73K3920) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 4 Days Container: Bulk | 177 Partner Stock |
|
$0.7430 / $1.4200 | Buy Now |
|
DISTI #
HIN232IPZ
|
Avnet Americas | Dual Transmitter/Receiver RS-232 16-Pin PDIP - Rail/Tube (Alt: HIN232IPZ) RoHS: Compliant Min Qty: 4000 Package Multiple: 500 Lead time: 12 Weeks, 0 Days Container: Tube | 3425 Factory Stock |
|
$0.8100 | Buy Now |
|
DISTI #
968-HIN232IPZ
|
Mouser Electronics | RS-232 Interface IC RS232 5V 2D/2R 1UF CAPS 16PDIP IND RoHS: Compliant | 1381 |
|
$0.6370 / $2.1100 | Buy Now |
|
DISTI #
HIN232IPZ
|
TME | IC: interface, transceiver, full duplex,RS232, 120kbps, DIP16 Min Qty: 1 | 0 |
|
$0.8700 / $1.0900 | RFQ |
|
DISTI #
HIN232IPZ
|
Avnet Silica | Dual TransmitterReceiver RS232 16Pin PDIP (Alt: HIN232IPZ) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for HIN232IPZ
HIN232IPZ CAD Models
HIN232IPZ Part Data Attributes
|
|
HIN232IPZ
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
HIN232IPZ
Renesas Electronics Corporation
+5V Powered RS-232 Transmitters/Receivers, PDIP, /Tube
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | PDIP | |
| Package Description | DIP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | E16.3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 16 Weeks, 4 Days | |
| Date Of Intro | 2017-10-26 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Differential Output | NO | |
| Driver Number of Bits | 2 | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | V.28; EIA-232-E | |
| JESD-30 Code | R-PDIP-T16 | |
| JESD-609 Code | e3 | |
| Length | 19.17 mm | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 5.33 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for HIN232IPZ
This table gives cross-reference parts and alternative options found for HIN232IPZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of HIN232IPZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HIN232ECP | Rochester Electronics LLC | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16, PLASTIC, MS-001BB, DIP-16 | HIN232IPZ vs HIN232ECP |
| HIN232ECPZ | Renesas Electronics Corporation | Check for Price | ±15kV, ESD-Protected, +5V Powered, RS-232 Transmitters/Receivers, PDIP, /Tube | HIN232IPZ vs HIN232ECPZ |
| HIN232ACP | Rochester Electronics LLC | Check for Price | Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16, PACKAGE-16 | HIN232IPZ vs HIN232ACP |
| MAX232EPE+ | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16, ROHS COMPLIANT, PLASTIC, DIP-16 | HIN232IPZ vs MAX232EPE+ |
| HIN232IP | Harris Semiconductor | Check for Price | Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16 | HIN232IPZ vs HIN232IP |
| HIN232CP | Harris Semiconductor | Check for Price | Line Transceiver, 1 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16 | HIN232IPZ vs HIN232CP |
| MAX232CPE | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16, PLASTIC, DIP-16 | HIN232IPZ vs MAX232CPE |
| MAX232EPE+T | Maxim Integrated Products | Check for Price | Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, PDIP16, DIP-16 | HIN232IPZ vs MAX232EPE+T |
HIN232IPZ Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the HIN232IPZ is -40°C to 85°C.
-
To ensure reliable communication, use a shielded cable, keep the cable length as short as possible, and use a common ground between the transmitter and receiver. Additionally, consider using a ferrite bead or common-mode choke to reduce electromagnetic interference (EMI).
-
The maximum cable length supported by the HIN232IPZ is approximately 50 feet (15.24 meters) at a data rate of 115.2 kbps. However, the actual cable length may vary depending on the specific application and environment.
-
Yes, the HIN232IPZ can be used in a multi-drop configuration. However, it's essential to ensure that the total capacitance of the bus does not exceed 250 pF to maintain signal integrity.
-
The HIN232IPZ has built-in error detection and correction mechanisms, such as parity and stop bits. Implement a robust error-handling mechanism in your application code to detect and recover from errors, such as timeouts, framing errors, and overrun errors.
