HIN232CBZ-T Information

HIN232CBZ-T by Renesas Electronics Corporation is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.

A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.

Price & Stock for HIN232CBZ-T

Part # Distributor Description Stock Price Buy
DISTI # 84AC6717
Newark Rs232 Transceiver, 0 To 70Deg C, Ic Type:Rs232 Transceiver, No. Of Receivers:2Receivers, No. Of Transmitters:2, Communication Mode:Full Duplex, Data Rate Max:120Kbps, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Esd Protection:-Rohs Compliant: Yes |Renesas HIN232CBZ-T RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 2971
  • 1 $2.1700
  • 10 $1.3600
  • 25 $1.1400
  • 50 $1.0200
  • 100 $0.9010
  • 250 $0.7820
  • 500 $0.7090
$0.7090 / $2.1700 Buy Now
DISTI # 11J8728
Newark Ic, line Transceiver, cmos,2 Driver,2 Rcvr, sop,16Pin, plastic Rohs Compliant: Yes |Renesas HIN232CBZ-T RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # HIN232CBZ-TCT-ND
DigiKey IC TRANSCEIVER FULL 2/2 16SOIC Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 4894
In Stock
  • 1 $2.1700
  • 10 $1.3560
  • 25 $1.1424
  • 100 $0.9013
  • 250 $0.7828
  • 500 $0.7099
  • 1,000 $0.6422
  • 2,000 $0.6236
  • 3,000 $0.6142
  • 5,000 $0.6038
  • 7,000 $0.5978
  • 10,000 $0.5920
$0.5920 / $2.1700 Buy Now
DISTI # HIN232CBZ-T
Avnet Americas Dual Transmitter/Receiver RS-232 16-Pin SOIC W T/R - Tape and Reel (Alt: HIN232CBZ-T) RoHS: Compliant Min Qty: 4000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 1 $1.0400
$1.0400 Buy Now
DISTI # 968-HIN232CBZ-T
Mouser Electronics RS-232 Interface IC RS232 5V 2D/2R 1UF CAPS 16W COM RoHS: Compliant 4023
  • 1 $2.1700
  • 10 $1.3600
  • 25 $1.1500
  • 100 $0.9020
  • 250 $0.7830
  • 500 $0.7100
  • 1,000 $0.5710
  • 4,000 $0.5500
$0.5500 / $2.1700 Buy Now
DISTI # 86313908
Verical Dual Transmitter/Receiver RS-232 16-Pin SOIC W T/R RoHS: Compliant Min Qty: 48 Package Multiple: 1 Americas - 1719
  • 48 $2.0800
  • 50 $1.3000
  • 100 $1.0900
  • 200 $0.8650
  • 500 $0.8080
  • 1,000 $0.6810
$0.6810 / $2.0800 Buy Now
DISTI # HIN232CBZ-T
Avnet Silica Dual TransmitterReceiver RS232 16Pin SOIC W TR (Alt: HIN232CBZ-T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Silica - 0
Buy Now

Part Details for HIN232CBZ-T

HIN232CBZ-T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

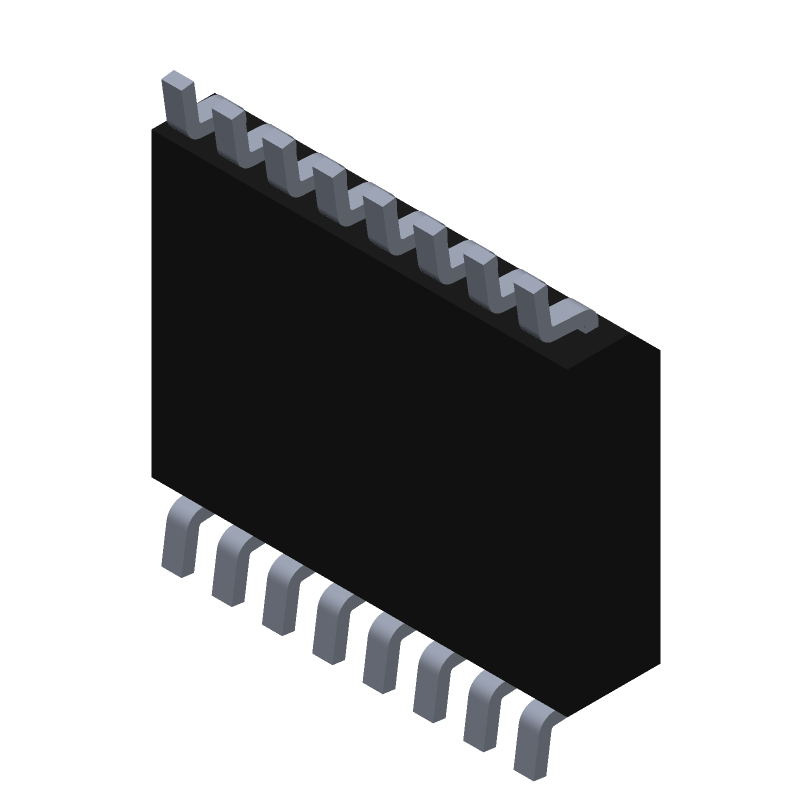

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

HIN232CBZ-T Part Data Attributes

Parametric Data
HIN232CBZ-T Renesas Electronics Corporation
Buy Now Datasheet
Compare Parts:
HIN232CBZ-T Renesas Electronics Corporation +5V Powered RS-232 Transmitters/Receivers, SOICW, /Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer RENESAS ELECTRONICS CORP
Part Package Code SOICW
Package Description SOIC-16
Pin Count 16
Manufacturer Package Code M16.3
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 12 Weeks
Date Of Intro 2017-10-26
Samacsys Manufacturer Renesas Electronics
Differential Output NO
Driver Number of Bits 2
Input Characteristics SCHMITT TRIGGER
Interface IC Type LINE TRANSCEIVER
Interface Standard V.28; EIA-232-E
JESD-30 Code R-PDSO-G16
JESD-609 Code e3
Length 10.3 mm
Moisture Sensitivity Level 2
Number of Functions 2
Number of Terminals 16
Operating Temperature-Max 70 °C
Operating Temperature-Min
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Receiver Number of Bits 2
Seated Height-Max 2.65 mm
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Nom 5 V
Surface Mount YES
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 7.5 mm
