HIF3BA-30PA-2.54DSA(63) by: Hirose Electric Co Ltd

Board Connector,

Part Details for HIF3BA-30PA-2.54DSA(63) by Hirose Electric Co Ltd

Results Overview of HIF3BA-30PA-2.54DSA(63) by Hirose Electric Co Ltd

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Robotics and Drones

HIF3BA-30PA-2.54DSA(63) Information

HIF3BA-30PA-2.54DSA(63) by Hirose Electric Co Ltd is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
HM2R30PACA20N9LF Amphenol Communications Solutions Back Plane Connectors, 2mm Hard Metric Series, Millipacs, Right Angle Receptacle,Type C with Pegs,Press Fit Tail,55 Signal Pin, 250 mating cycles and ROHS Compliant
HM2R30PA5100AALF Amphenol Communications Solutions Back Plane Connectors, 2mm Hard Metric Series, Millipacs, Right Angle Receptacle,Type C with Pegs,Press Fit Tail,55 Signal Pin, and ROHS Compliant
HM2R30PA5108N9STLF Amphenol Communications Solutions Back Plane Connectors, 2mm Hard Metric Series, Millipacs, Right Angle Receptacle,Type C with Pegs,Press Fit Tail,55 Signal Pin, 250 mating cycles,

Price & Stock for HIF3BA-30PA-2.54DSA(63)

Part # Distributor Description Stock Price Buy
DISTI # 66AK5134
Newark Ribbon Cable Connectors Compliant With Mil-C-83503 Standard |Hirose/hrs HIF3BA-30PA-2.54DSA(63) RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $4.1000
  • 500 $3.6200
$3.6200 / $4.1000 Buy Now
DISTI # 26-HIF3BA-30PA-2.54DSA(63)-ND
DigiKey CONN HEADER VERT 30POS 2.54MM Min Qty: 1 Lead time: 12 Weeks Container: Tray 139
In Stock
  • 1 $4.1900
  • 10 $3.5580
  • 100 $3.0235
  • 500 $2.6990
  • 1,000 $2.5702
$2.5702 / $4.1900 Buy Now
DISTI # HIF3BA-30PA-2.54DSA(63)
Avnet Americas - Trays (Alt: HIF3BA-30PA-2.54DSA(63)) RoHS: Not Compliant Min Qty: 100 Package Multiple: 100 Lead time: 12 Weeks, 0 Days Container: Tray 0
  • 100 $2.9630
$2.9630 Buy Now
DISTI # 798-F3BA30PA254DSA63
Mouser Electronics Headers & Wire Housings RoHS: Compliant 87
  • 1 $4.1900
  • 10 $3.4200
  • 100 $3.3300
  • 200 $2.7800
  • 500 $2.4100
  • 1,000 $2.2600
$2.2600 / $4.1900 Buy Now
Onlinecomponents.com Ribbon Cable Connectors Compliant with MIL-C-83503 Standard RoHS: Compliant 0
  • 100 $3.2000
  • 300 $2.9700
  • 500 $2.5900
  • 1,000 $2.4800
  • 2,500 $2.4100
  • 5,000 $2.3500
  • 7,500 $2.3200
  • 10,000 $2.2800
$2.2800 / $3.2000 Buy Now
DISTI # 87730475
Verical HIF3BA-30PA-2.54DSA(63) Min Qty: 21 Package Multiple: 1 Date Code: 2443 Americas - 81
  • 21 $3.2800
  • 50 $2.6500
$2.6500 / $3.2800 Buy Now
DISTI # HIF3BA30PA2.54DSA
TME connector HIF3BA-30PA-2.54DSA(63) Min Qty: 400 0
  • 400 $2.0700
$2.0700 RFQ
DISTI # 000000000006119089
Sager Headers & Wire Housings Min Qty: 1 0
  • 1 $3.4200
  • 100 $3.1600
  • 250 $2.9300
  • 500 $2.7400
  • 1,000 $2.5700
$2.5700 / $3.4200 Buy Now
DISTI # CL0610-0116-1-63
Avnet Abacus - Tape and Reel (Alt: CL0610-0116-1-63) RoHS: Compliant Min Qty: 400 Package Multiple: 400 Lead time: 14 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
LCSC 2 Tin 2.54mm -55+85 Brass Straight Plugin Wire To Board Connector ROHS 5
  • 1 $5.2744
  • 10 $4.5638
  • 30 $4.1414
  • 100 $3.7129
  • 500 $3.5153
  • 1,000 $3.4263
$3.4263 / $5.2744 Buy Now

Part Details for HIF3BA-30PA-2.54DSA(63)

HIF3BA-30PA-2.54DSA(63) CAD Models

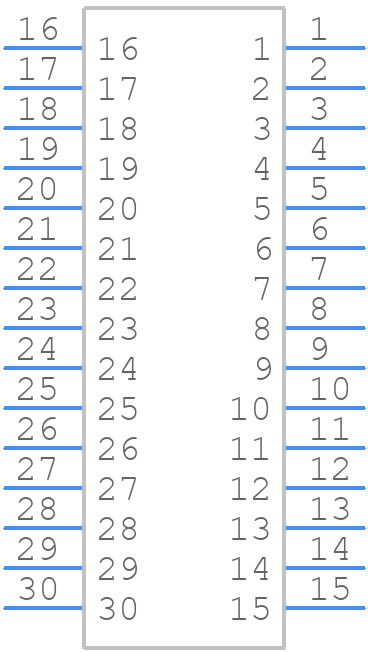

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

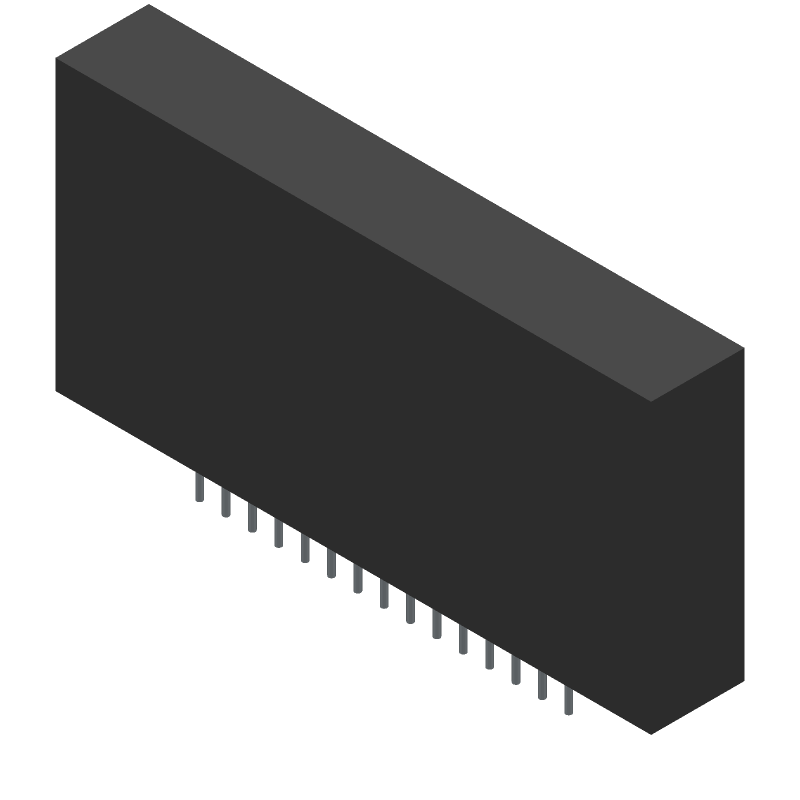

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

HIF3BA-30PA-2.54DSA(63) Part Data Attributes

Parametric Data
HIF3BA-30PA-2.54DSA(63) Hirose Electric Co Ltd
Buy Now Datasheet
Compare Parts:
HIF3BA-30PA-2.54DSA(63) Hirose Electric Co Ltd Board Connector,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer HIROSE ELECTRIC CO LTD
Reach Compliance Code compliant
Factory Lead Time 12 Weeks
Samacsys Manufacturer Hirose
Body Breadth 0.354 inch
Body Depth 0.701 inch
Body Length 2.26 inch
Connector Type BOARD CONNECTOR
Contact Finish Termination Gold (Au)
Contact Gender MALE
Contact Pattern RECTANGULAR
Contact Resistance 15 mΩ
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage 650VAC V
Durability 500 Cycles
Filter Feature NO
Insulation Resistance 1000000000 Ω
Insulator Color BLACK
Insulator Material POLYBUTYLENE TEREPHTHALATE
JESD-609 Code e4
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LATCH & EJECT
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Plating Thickness 8u inch
Polarization Key GUIDE SLOT(S)
Rated Current (Signal) 3 A
Reference Standard MIL; UL
Terminal Length 0.13 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 30
UL Flammability Code 94V-0
