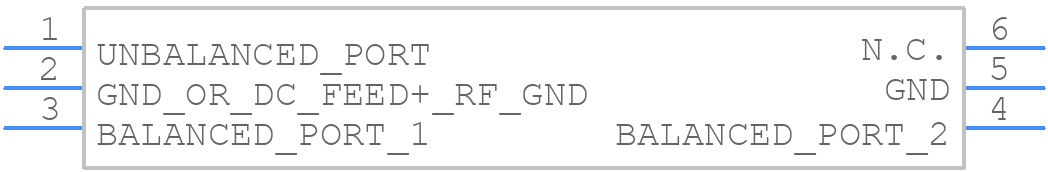

Part Symbol
-
Footprint
-

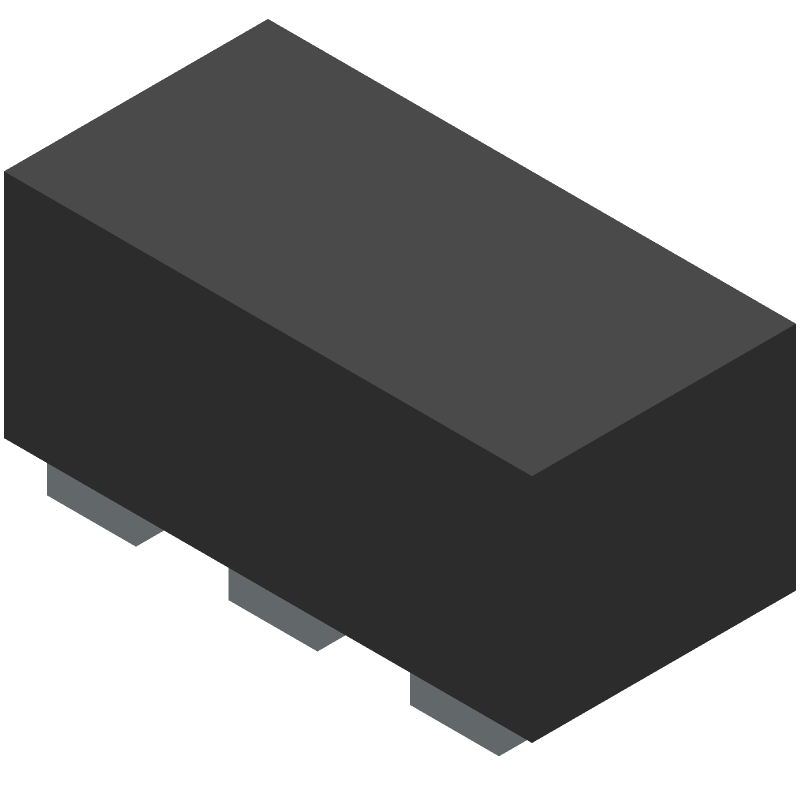

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HHM1776B2 by TDK Corporation
Results Overview of HHM1776B2 by TDK Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Telecommunications
HHM1776B2 Information
HHM1776B2 by TDK Corporation is an RF Transformer.
RF Transformers are under the broader part category of Transformers.
Transformers are passive components that transfer electrical energy between circuits and adjust voltage levels through electromagnetic induction. They are crucial for applications like power transmission and reducing voltage for low-voltage devices. Read more about Transformers on our Transformers part category page.
Price & Stock for HHM1776B2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
30AJ2821
|
Newark | Baluns Transformer, 824-894Mhz, 0603 Rohs Compliant: Yes |Tdk HHM1776B2 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.1690 / $0.2630 | Buy Now |
|
DISTI #
445-6864-1-ND
|
DigiKey | BALUN 824MHZ-894MHZ 50/50 0603 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.1392 / $0.2000 | Buy Now |
|
DISTI #
HHM1776B2
|
Avnet Americas | Balun Transformer, 50ohm, 1.2 dB, 180? ? 10?, 0603 [1608 Metric], 824 MHz, 894 MHz - Tape and Reel (Alt: HHM1776B2) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1133 / $0.1156 | Buy Now |
|
DISTI #
810-HHM1776B2
|
Mouser Electronics | Signal Conditioning LTCC BALUN 824-894MHz RoHS: Compliant | 13263 |
|
$0.1020 / $0.4200 | Buy Now |
|
DISTI #
HHM1776B2
|
Avnet Abacus | Balun Transformer 50ohm 12 dB 180 10 0603 1608 Metric 824 MHz 894 MHz (Alt: HHM1776B2) RoHS: Compliant Min Qty: 8000 Package Multiple: 4000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for HHM1776B2
HHM1776B2 CAD Models
HHM1776B2 Part Data Attributes
|
|
HHM1776B2
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
HHM1776B2
TDK Corporation
RF Transformer, 824MHz Min, 894MHz Max, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | TDK | |
| Cut-off Frequency-Max | 894 MHz | |
| Cut-off Frequency-Min | 824 MHz | |
| Height | 0.6 mm | |
| Insertion Loss | 1.2 dB | |
| Length | 1.6 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | TAPE & REEL | |
| Surface Mount | YES | |
| Transformer Type | RF TRANSFORMER | |
| Width | 0.8 mm |
HHM1776B2 Frequently Asked Questions (FAQ)
-
TDK recommends a symmetrical PCB layout with a solid ground plane, and the component should be placed near the edge of the board to minimize radiation. A 4-layer PCB with a dedicated power plane and a solid ground plane is also recommended.
-
The HHM1776B2 has a high power density, so thermal management is crucial. TDK recommends using a heat sink with a thermal conductivity of at least 1 W/m-K, and applying a thermal interface material with a thermal conductivity of at least 5 W/m-K. The heat sink should be attached using a screw or clip to ensure good thermal contact.
-
The HHM1776B2 has an operating temperature range of -40°C to +125°C, but the maximum operating temperature range depends on the specific application and the derating of the component. TDK recommends consulting the datasheet and application notes for specific guidance.
-
TDK recommends using a robust PCB design with a secure component attachment, such as a screw or clip, to ensure the component remains attached during high-vibration environments. Additionally, using a conformal coating and potting the component can help improve reliability.
-
TDK recommends storing the HHM1776B2 in a dry, clean environment with a temperature range of -40°C to +30°C and a relative humidity of 60% or less. The component should be handled with anti-static precautions, such as using an anti-static wrist strap or mat, to prevent electrostatic discharge damage.
