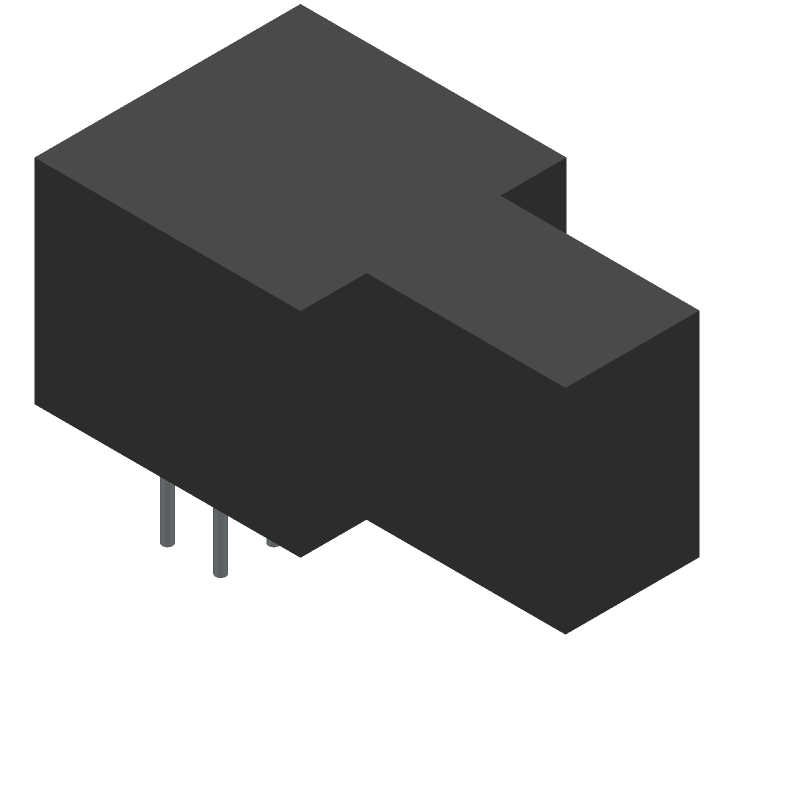

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HFBR-2602 by Avago Technologies
Results Overview of HFBR-2602 by Avago Technologies
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
HFBR-2602 Information
HFBR-2602 by Avago Technologies is a Fiber Optic Receiver.
Fiber Optic Receivers are under the broader part category of Fiber Optics.
Fiber optics are thin glass strands used to transmit light signals over long distances, enabling high-speed data transfer. There are two main types—single mode and multimode fibers. Read more about Fiber Optics on our Fiber Optics part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 61082-082602LF | Amphenol Communications Solutions | BergStak® 0.80mm Pitch, Receptacle, Vertical, Double Row, 80 Positions. | |
| 61082-082602PLF | Amphenol Communications Solutions | BergStak® 0.80mm Pitch, Receptacle, Vertical, Double Row, 80 Positions. | |
| 10069525-202602LF | Amphenol Communications Solutions | Bergstak® 0.80mm Pitch, Board to Board, Vertical, Plug Assembly, 200 Positions, Dual Row. |
Part Details for HFBR-2602
HFBR-2602 CAD Models
HFBR-2602 Part Data Attributes
|
|
HFBR-2602
Avago Technologies
Buy Now
Datasheet
|
Compare Parts:
HFBR-2602
Avago Technologies
FIBER OPTIC RECEIVER, 2Mbps, THROUGH HOLE MOUNT, SMA CONNECTOR, PLASTIC, PACKAGE-8
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | AVAGO TECHNOLOGIES INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.40.60.50 | |
| Samacsys Manufacturer | Avago Technologies | |
| Body Breadth | 12.7 mm | |
| Body Height | 10.2 mm | |
| Body Length or Diameter | 12.7 mm | |
| Built-in Feature | AMPLIFIER | |
| Connection Type | SMA CONNECTOR | |
| Data Rate | 2 Mbps | |
| Emitter/Detector Type | LED | |
| Fiber Optic Device Type | RECEIVER | |
| Fiber Type | POF | |
| JESD-609 Code | e0 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Operating Temperature-Max | 55 °C | |
| Operating Temperature-Min | ||
| Operating Wavelength-Nom | 655 nm | |
| Reception Type | DIGITAL | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Terminal Finish | Tin/Lead (Sn/Pb) |
Alternate Parts for HFBR-2602
This table gives cross-reference parts and alternative options found for HFBR-2602. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of HFBR-2602, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HFBR-2602 | Hewlett Packard Co | Check for Price | Receiver, SMA Connector, Through Hole Mount, PLASTIC, PACKAGE-8 | HFBR-2602 vs HFBR-2602 |
