HFBR-2521Z Information
HFBR-2521Z by Avago Technologies is a Fiber Optic Receiver.
Fiber Optic Receivers are under the broader part category of Fiber Optics.
Fiber optics are thin glass strands used to transmit light signals over long distances, enabling high-speed data transfer. There are two main types—single mode and multimode fibers. Read more about Fiber Optics on our Fiber Optics part category page.
Price & Stock for HFBR-2521Z
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70158101
|
RS | Receiver, 5 MBd High Performance Link, Horizontal Package, 1x4, RoHS Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$7.1740 / $8.4400 | RFQ |
|
|
Bristol Electronics | 40 |
|
RFQ | ||
|
|
Bristol Electronics | 8 |
|
RFQ | ||
|
|
Quest Components | RECEIVER, 5MBPS, DIP, THROUGH HOLE MOUNT | 40 |
|
$32.9902 / $38.8120 | Buy Now |
|
|
Quest Components | RECEIVER, 5MBPS, DIP, THROUGH HOLE MOUNT | 32 |
|
$13.0666 / $15.8918 | Buy Now |
|
|
Quest Components | RECEIVER, 5MBPS, DIP, THROUGH HOLE MOUNT | 7 |
|
$10.5945 / $14.1260 | Buy Now |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 8 |
|
$10.0000 / $15.3800 | Buy Now |
|
|
LCSC | Multipurpose Optical Fiber Connection Plugin Fiber Optical Transceivers ROHS | 3031 |
|
$5.5605 / $7.9825 | Buy Now |
Part Details for HFBR-2521Z

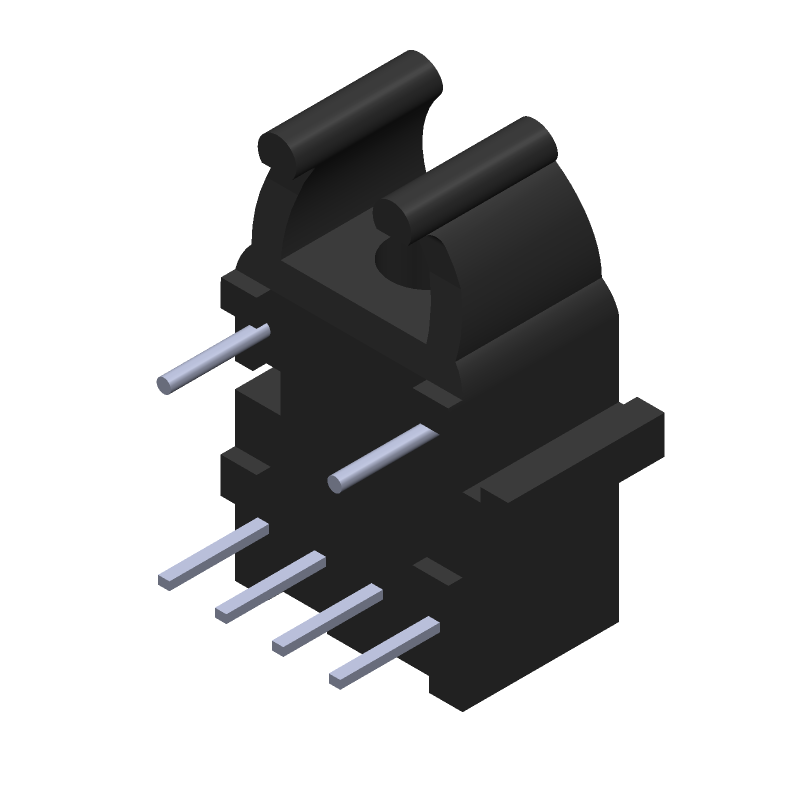

HFBR-2521Z CAD Models
HFBR-2521Z Part Data Attributes
|
|
HFBR-2521Z
Avago Technologies
Buy Now
Datasheet
|
Compare Parts:
HFBR-2521Z
Avago Technologies
FIBER OPTIC RECEIVER, 5Mbps, THROUGH HOLE MOUNT, DIP, ROHS COMPLIANT PACKAGE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AVAGO TECHNOLOGIES INC | |
| Package Description | DIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8517.62.00.50 | |
| Samacsys Manufacturer | Avago Technologies | |
| Body Height | 7.62 mm | |
| Body Length or Diameter | 18.8 mm | |
| Data Rate | 5 Mbps | |
| Fiber Optic Device Type | RECEIVER | |
| Fiber Type | POF | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Operating Wavelength-Nom | 660 nm | |
| Package Style | DIP | |
| Reception Type | DIGITAL | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN |
