HEF40106BTT,112 by:

HEF40106B - Hex inverting Schmitt trigger@en-us TSSOP 14-Pin

Part Details for HEF40106BTT,112 by Nexperia

Results Overview of HEF40106BTT,112 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

HEF40106BTT,112 Information

HEF40106BTT,112 by Nexperia is a Gate.
Gates are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for HEF40106BTT,112

Part # Distributor Description Stock Price Buy
DISTI # 2156-HEF40106BTT,112-954-ND
DigiKey IC INVERTER Min Qty: 1337 Lead time: 1 Weeks Container: Bulk MARKETPLACE PRODUCT 8188
In Stock
  • 1,337 $0.2200
$0.2200 Buy Now
DISTI # V79:2366_23820037
Arrow Electronics Inverter Schmitt Trigger 6-Element CMOS 14-Pin TSSOP Bulk RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1751 Americas - 39
  • 39 $0.1507
  • 1,337 $0.1488
$0.1488 / $0.1507 Buy Now
DISTI # 85988722
Verical Inverter Schmitt Trigger 6-Element CMOS 14-Pin TSSOP Bulk RoHS: Compliant Min Qty: 1391 Package Multiple: 1 Date Code: 2001 Americas - 49728
  • 1,391 $0.2698
$0.2698 Buy Now
DISTI # 88042471
Verical Inverter Schmitt Trigger 6-Element CMOS 14-Pin TSSOP Bulk RoHS: Compliant Min Qty: 1391 Package Multiple: 1 Date Code: 1801 Americas - 1632
  • 1,391 $0.2698
$0.2698 Buy Now
Rochester Electronics Inverter, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, TSSOP14 RoHS: Compliant Status: Obsolete Min Qty: 1 51360
  • 100 $0.2158
  • 500 $0.1942
  • 1,000 $0.1791
  • 10,000 $0.1597
  • 100,000 $0.1338
$0.1338 / $0.2158 Buy Now
DISTI # HEF40106BTT,112
Avnet Silica Inverter Schmitt Trigger Hex 1 Input 14 Pins TSSOP (Alt: HEF40106BTT,112) RoHS: Compliant Min Qty: 96 Package Multiple: 96 Silica - 0
Buy Now
DISTI # HEF40106BTT,112
EBV Elektronik Inverter Schmitt Trigger Hex 1 Input 14 Pins TSSOP (Alt: HEF40106BTT,112) RoHS: Compliant Min Qty: 96 Package Multiple: 96 EBV - 0
Buy Now

Part Details for HEF40106BTT,112

HEF40106BTT,112 CAD Models

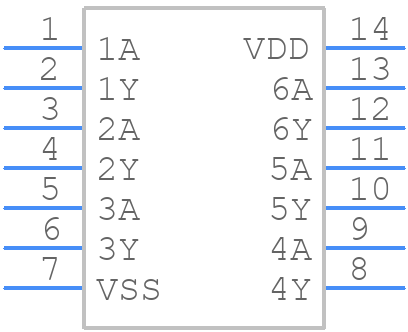

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

HEF40106BTT,112 Part Data Attributes

Parametric Data
HEF40106BTT,112 Nexperia
Buy Now Datasheet
Compare Parts:
HEF40106BTT,112 Nexperia HEF40106B - Hex inverting Schmitt trigger@en-us TSSOP 14-Pin
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer NEXPERIA
Part Package Code TSSOP
Package Description TSSOP-14
Pin Count 14
Manufacturer Package Code SOT402-1
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Factory Lead Time 4 Weeks
Date Of Intro 1995-11-01
Samacsys Manufacturer Nexperia
Family 4000/14000/40000
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Length 5 mm
Logic IC Type INVERTER
Moisture Sensitivity Level 1
Number of Functions 6
Number of Inputs 1
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Propagation Delay (tpd) 180 ns
Qualification Status Not Qualified
Seated Height-Max 1.1 mm
Supply Voltage-Max (Vsup) 15 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 4.4 mm

Alternate Parts for HEF40106BTT,112

This table gives cross-reference parts and alternative options found for HEF40106BTT,112. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of HEF40106BTT,112, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CD40106BPWR Texas Instruments $0.1490 6-ch, 3-V to 18-V inverters with Schmitt-Trigger inputs 14-TSSOP -55 to 125 HEF40106BTT,112 vs CD40106BPWR
HEF40106BTT,118 Nexperia $0.2454 HEF40106B - Hex inverting Schmitt trigger@en-us TSSOP 14-Pin HEF40106BTT,112 vs HEF40106BTT,118
CD40106BPW Texas Instruments $0.2538 6-ch, 3-V to 18-V inverters with Schmitt-Trigger inputs 14-TSSOP -55 to 125 HEF40106BTT,112 vs CD40106BPW
MC14584BDTR2G onsemi $0.3617 Hex Inverter with Schmitt-Trigger Input, TSSOP-14, 2500-REEL HEF40106BTT,112 vs MC14584BDTR2G
HEF40106BTT,118 NXP Semiconductors Check for Price HEF40106B - Hex inverting Schmitt trigger TSSOP 14-Pin HEF40106BTT,112 vs HEF40106BTT,118
HEF40106BTT Nexperia Check for Price Inverter, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO14 HEF40106BTT,112 vs HEF40106BTT
MC14106BDTR2 onsemi Check for Price 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO14, LEAD FREE, TSSOP-14 HEF40106BTT,112 vs MC14106BDTR2
BU4584BFV-E2 ROHM Semiconductor Check for Price Inverter, 4000/14000/40000 Series, 6-Func, 1-Input, CMOS, PDSO14, ROHS COMPLIANT, SSOP-14 HEF40106BTT,112 vs BU4584BFV-E2
CD40106BPWE4 Texas Instruments Check for Price 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO14, GREEN, PLASTIC. TSSOP-14 HEF40106BTT,112 vs CD40106BPWE4
MC14584BDTR2 onsemi Check for Price 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO14, LEAD FREE, TSSOP-14 HEF40106BTT,112 vs MC14584BDTR2

HEF40106BTT,112 Frequently Asked Questions (FAQ)

  • The recommended operating voltage range for HEF40106BTT,112 is 4.5V to 15V.

  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power consumption and ensure good thermal management, such as using a heat sink or providing adequate airflow.

  • The maximum frequency of operation for the HEF40106BTT,112 is typically around 10 MHz, but this can vary depending on the specific application and operating conditions.

  • To handle ESD protection when working with the HEF40106BTT,112, it is recommended to use proper ESD handling procedures, such as using an ESD wrist strap or mat, and ensuring that the device is stored in an ESD-protected environment.

  • The recommended storage temperature range for the HEF40106BTT,112 is -40°C to 125°C.
