HDSP-511E Information
HDSP-511E by Avago Technologies is an LED Display.
LED Displays are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for HDSP-511E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70157883
|
RS | DISPLAY 7SEG GP HER CA 0.56" Min Qty: 1760 Package Multiple: 1 Container: Bulk | 0 |
|
$0.5800 | RFQ |
|
|
Bristol Electronics | 1350 |
|
RFQ | ||
|
|
Quest Components | SMART/NORMAL 7 SEG NUMERIC LED DISPLAY, HIGH EFFICIENCY RED, 14.22MM | 1080 |
|
$0.6400 / $1.6000 | Buy Now |
Part Details for HDSP-511E

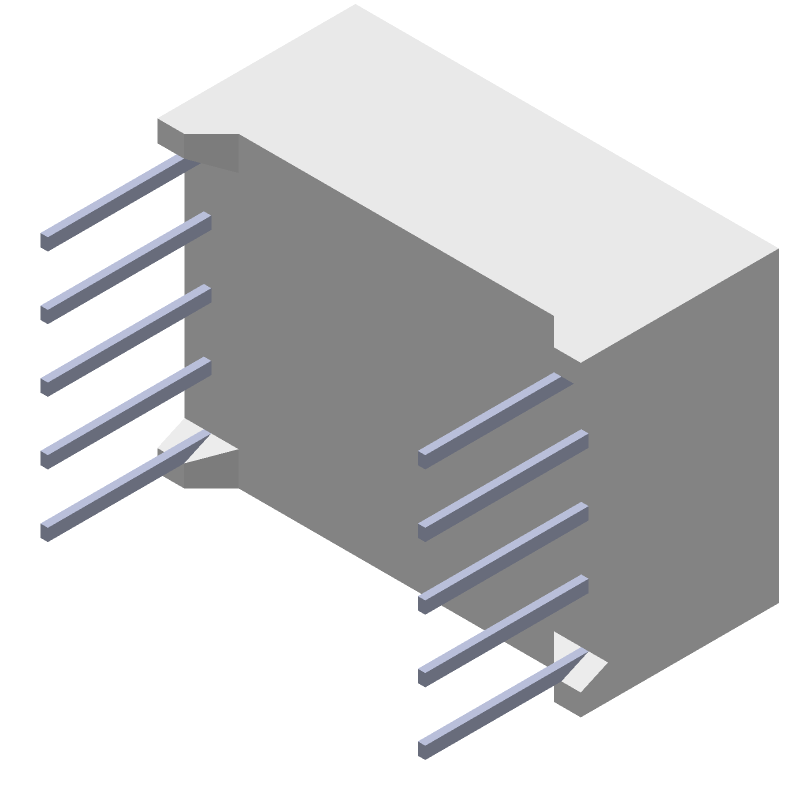

HDSP-511E CAD Models
HDSP-511E Part Data Attributes
|
|
HDSP-511E
Avago Technologies
Buy Now
Datasheet
|
Compare Parts:
HDSP-511E
Avago Technologies
7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 14.22mm, DIP-10
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AVAGO TECHNOLOGIES INC | |
| Package Description | DIP-10 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.20.00 | |
| Samacsys Manufacturer | Avago Technologies | |
| Color | HIGH EFFICIENCY RED | |
| Configuration | COMMON ANODE, 1 DIGIT WITH DECIMAL POINT | |
| Display Height | 14.22 mm | |
| Forward Current-Max | 0.025 A | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -35 °C | |
| Optoelectronic Device Type | SMART/NORMAL 7 SEG NUMERIC LED DISPLAY | |
| Terminal Finish | TIN |
