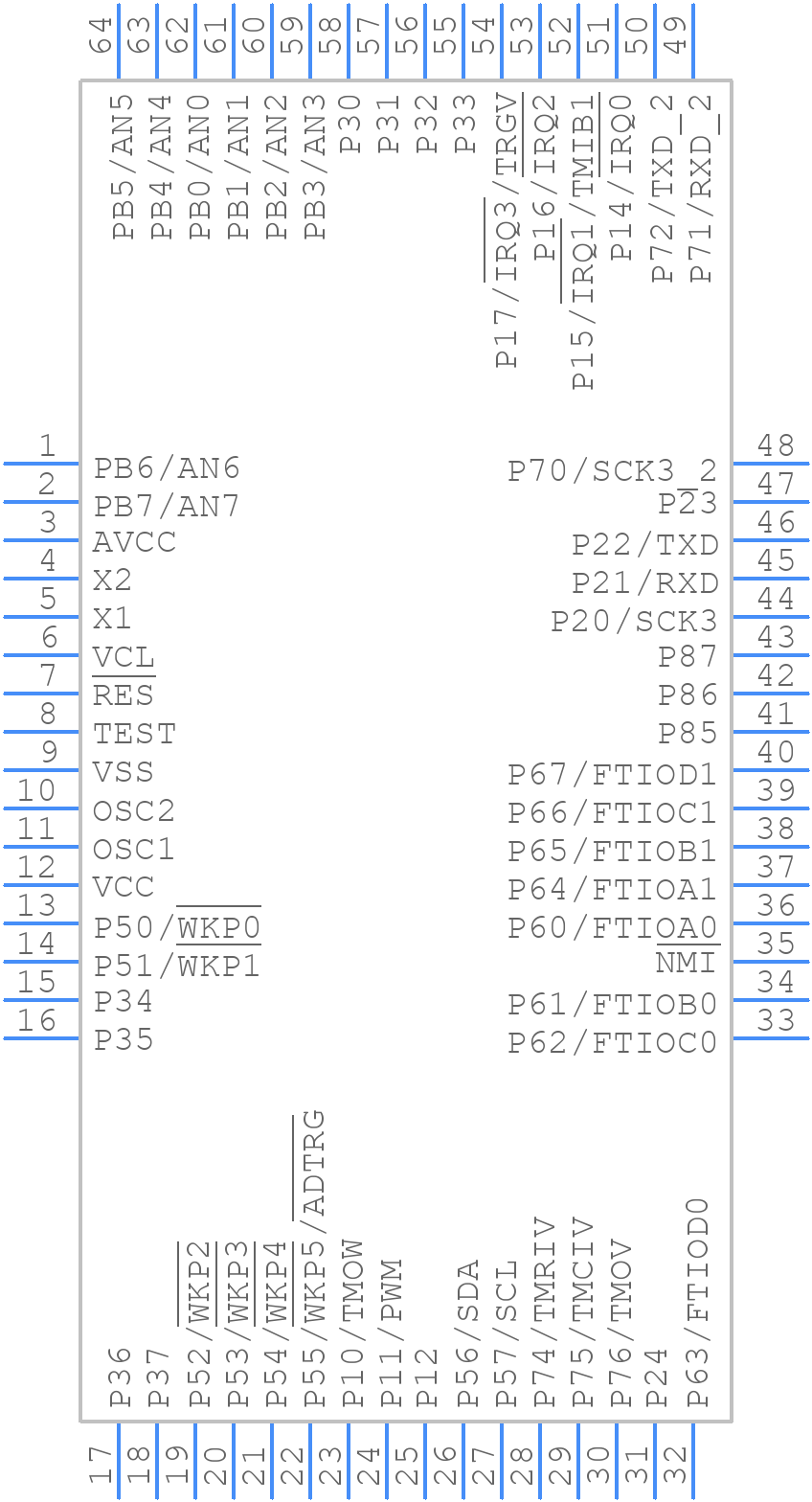

Part Symbol
-
Footprint
-

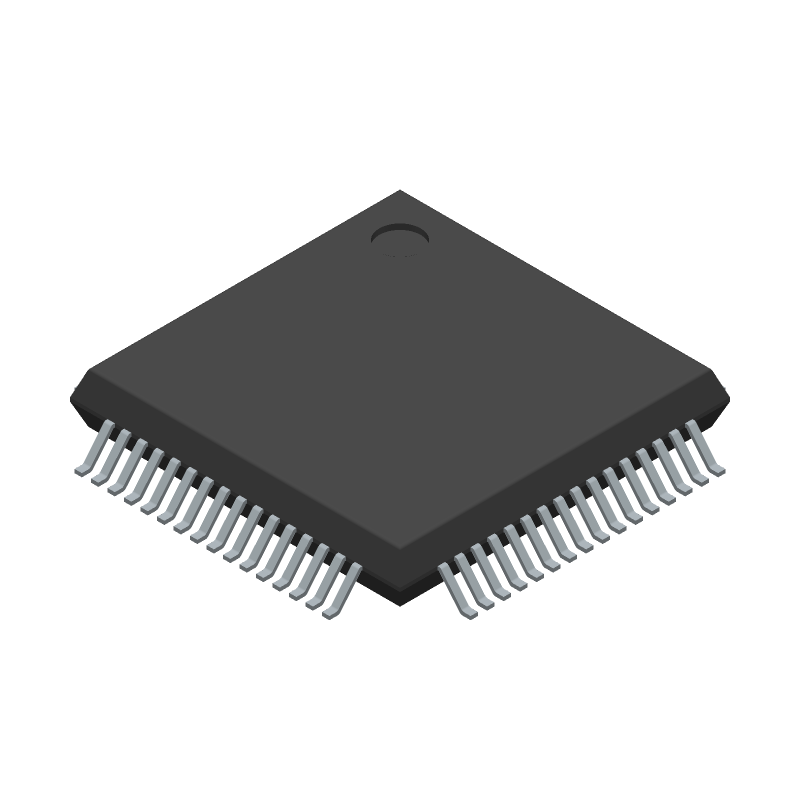

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HD64F3687GFPV by Renesas Electronics Corporation
Results Overview of HD64F3687GFPV by Renesas Electronics Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
HD64F3687GFPV Information
HD64F3687GFPV by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for HD64F3687GFPV
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
23AH3199
|
Newark | Mcu, 16Bit, 20Mhz, Lfqfp-64, Product Range:H8 Family H8/300H Tiny Series H8/3687 Group Microcontrollers, Device Core:H8/300H, Data Bus Width:16 Bit, Operating Frequency Max:20Mhz, Program Memory Size:56Kb, No. Of Pins:64Pins Rohs Compliant: Yes |Renesas HD64F3687GFPV RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
HD64F3687GFPV-ND
|
DigiKey | IC MCU 16BIT 56KB FLASH 64LQFP Min Qty: 1 Lead time: 12 Weeks Container: Tray |
309 In Stock |
|
$13.9594 / $20.5600 | Buy Now |
|
|
GLYN GmbH & Co. KG | 16B.uC 56K Flash 4K Ram LQFP 64/0,5 -20/+75øC 16 | 800 |
|
RFQ | |
|
DISTI #
HD64F3687GFPV
|
Avnet Silica | MCU 16bit32bit H8 CISC 56KB Flash 33V5V 64Pin LQFP (Alt: HD64F3687GFPV) RoHS: Compliant Min Qty: 160 Package Multiple: 160 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Vyrian | Peripheral ICs | 184 |
|
RFQ | |
|
|
Win Source Electronics | IC MCU 16BIT 56KB FLASH 64LQFP / MCU 16-bit H8/300H CISC 56KB Flash 3.3V/5V 64-Pin LFQFP | 2400 |
|
$14.1667 / $18.2986 | Buy Now |
Part Details for HD64F3687GFPV
HD64F3687GFPV CAD Models
HD64F3687GFPV Part Data Attributes
|
|
HD64F3687GFPV
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
HD64F3687GFPV
Renesas Electronics Corporation
Microcontrollers with a 32-bit H8/300H CPU core (Non Promotion), LQFP, /
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | RENESAS TECHNOLOGY CORP | |
| Part Package Code | LQFP | |
| Package Description | 10 X 10 MM, 0.50 MM PITCH, LQFP-64 | |
| Pin Count | 64 | |
| Manufacturer Package Code | PLQP0064KC | |
| Reach Compliance Code | unknown | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Additional Feature | ALSO OPERATES AT 3V MINIMUM SUPPLY | |
| Address Bus Width | ||
| Bit Size | 16 | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e6 | |
| Length | 10 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 53 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 75 °C | |
| Operating Temperature-Min | -20 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Qualification Status | Not Qualified | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.7 mm | |
| Speed | 20 MHz | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL EXTENDED | |
| Terminal Finish | TIN BISMUTH | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
