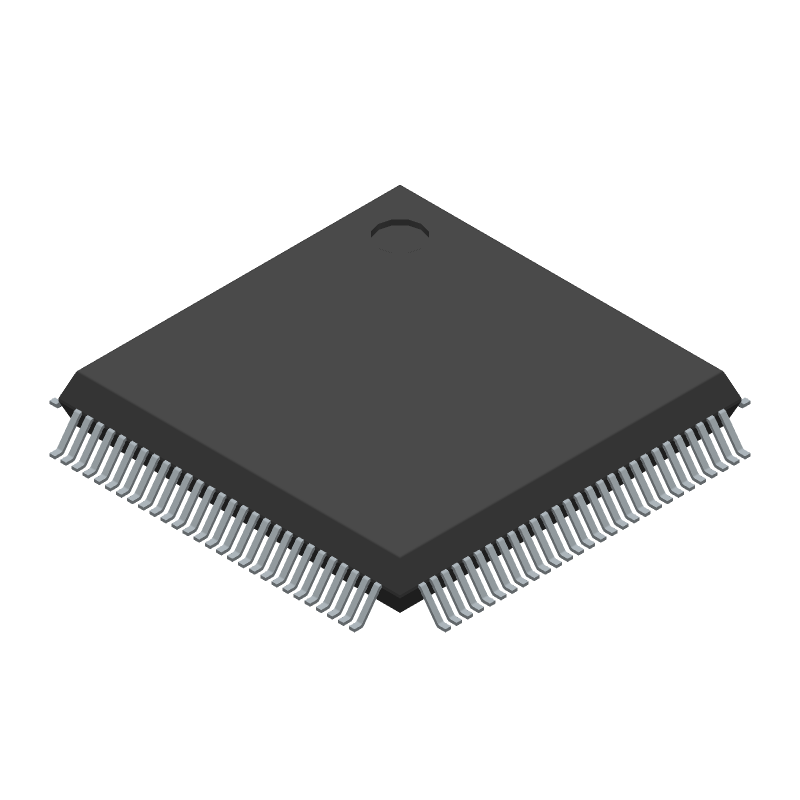

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HD6477042AF28V by Renesas Electronics Corporation
Results Overview of HD6477042AF28V by Renesas Electronics Corporation
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
HD6477042AF28V Information
HD6477042AF28V by Renesas Electronics Corporation is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Part Details for HD6477042AF28V
HD6477042AF28V CAD Models
HD6477042AF28V Part Data Attributes
|
|
HD6477042AF28V
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
HD6477042AF28V
Renesas Electronics Corporation
32-bit Microcontrollers (Non Promotion), QFP, /
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | QFP | |
| Package Description | QFP, QFP112,.91SQ | |
| Pin Count | 112 | |
| Manufacturer Package Code | PRQP0112JA | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Has ADC | YES | |
| Address Bus Width | 22 | |
| Bit Size | 32 | |
| CPU Family | SH7000 | |
| Clock Frequency-Max | 28 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | 16 | |
| JESD-30 Code | S-PQFP-G112 | |
| JESD-609 Code | e6 | |
| Length | 20 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 82 | |
| Number of Terminals | 112 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 75 °C | |
| Operating Temperature-Min | -20 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | QFP | |
| Package Equivalence Code | QFP112,.91SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 4096 | |
| ROM (words) | 131072 | |
| ROM Programmability | OTPROM | |
| Seated Height-Max | 3.05 mm | |
| Speed | 28.7 MHz | |
| Supply Current-Max | 230 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL EXTENDED | |
| Terminal Finish | TIN BISMUTH | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 20 | |
| Width | 20 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
