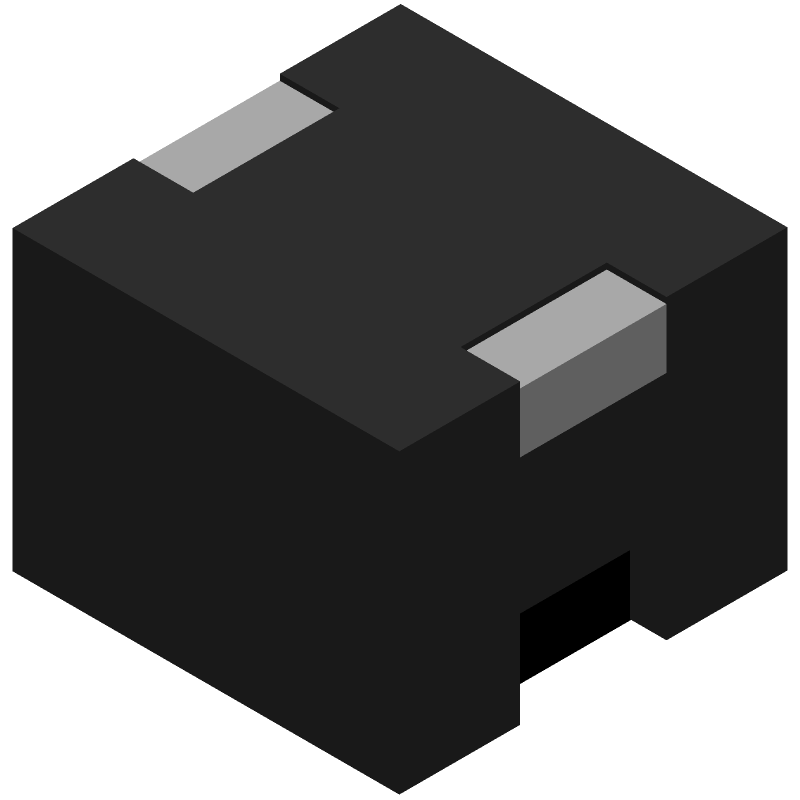

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HC1-1R0-R by Eaton Electronics
Results Overview of HC1-1R0-R by Eaton Electronics
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Agriculture Technology
Medical Imaging
Electronic Manufacturing
HC1-1R0-R Information
HC1-1R0-R by Eaton Electronics is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| HC1-55564-9 | Rochester Electronics LLC | HC1-55564 - CVSD Codec, CVSD |
Price & Stock for HC1-1R0-R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70038041
|
RS | Inductor, High Current Power Inductor, 1.0uH, 25.4A, 1.23 mOhms Min Qty: 250 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$3.1000 | RFQ |
|
DISTI #
HC1-1R0-R
|
TME | Inductor: wire, SMD, 1.12uH, Ioper: 28.01A, 1.32mΩ, ±15%, Isat: 25.4A Min Qty: 1 | 200 |
|
$1.9000 / $2.6600 | Buy Now |
Part Details for HC1-1R0-R
HC1-1R0-R CAD Models
HC1-1R0-R Part Data Attributes
HC1-1R0-R Frequently Asked Questions (FAQ)
-
The recommended PCB land pattern for the HC1-1R0-R is a rectangular pad with dimensions of 2.5mm x 1.5mm, with a 0.5mm clearance around the pad.
-
The HC1-1R0-R is rated for operation up to 125°C, but derating is required above 85°C. Consult the datasheet for specific derating guidelines.
-
Use a soldering iron with a temperature of 260°C or less, and avoid applying excessive force or pressure to the component during soldering.
-
Yes, the HC1-1R0-R is compatible with lead-free soldering processes, but ensure that the soldering temperature does not exceed 260°C.
-
The typical tolerance for the inductance value of the HC1-1R0-R is ±10%.
