H11N1SVM by:

6-Pin DIP Low Input Current Schmitt Trigger Output Optocoupler, PDIP-6, 1000-BLKBG

Part Details for H11N1SVM by onsemi

Results Overview of H11N1SVM by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Transportation and Logistics Renewable Energy Automotive Robotics and Drones

H11N1SVM Information

H11N1SVM by onsemi is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.

Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.

Price & Stock for H11N1SVM

Part # Distributor Description Stock Price Buy
DISTI # 82C5699
Newark Optocoupler, 5Mhz, 4.17Kv, Smdip-6, No. Of Channels:1 Channel, Isolation Voltage:4.17Kv, Data Rate:5Mbps, Optocoupler Case Style:Surface Mount Dip, No. Of Pins:6Pins, Product Range:- Rohs Compliant: Yes |Onsemi H11N1SVM RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 500 $0.6850
$0.6850 Buy Now
DISTI # H11N1SVM-ND
DigiKey OPTOISO 4.17KV OPN COLL 6-SMD Min Qty: 1 Lead time: 15 Weeks Container: Tube 400
In Stock
  • 1 $6.3900
  • 50 $4.1064
  • 100 $3.8772
  • 500 $3.4711
  • 1,000 $3.3392
  • 2,000 $3.2277
$3.2277 / $6.3900 Buy Now
DISTI # H11N1SVM
Avnet Americas Optocoupler Logic-Out Open Collector DC-IN 1-CH 6-Pin PDIP SMD White Bulk - Bulk (Alt: H11N1SVM) RoHS: Not Compliant Min Qty: 215 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Bulk 2995 Partner Stock
  • 215 $3.1486
  • 220 $3.0658
  • 440 $3.0260
  • 1,100 $2.9872
  • 2,200 $2.8765
$2.8765 / $3.1486 Buy Now
DISTI # H11N1SVM
Avnet Americas Optocoupler Logic-Out Open Collector DC-IN 1-CH 6-Pin PDIP SMD White Bulk - Bulk (Alt: H11N1SVM) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Bulk 2995 Factory Stock
  • 1,000 $0.6955
  • 2,000 $0.6772
  • 4,000 $0.6684
  • 6,000 $0.6610
  • 8,000 $0.6576
$0.6576 / $0.6955 Buy Now
DISTI # 512-H11N1SVM
Mouser Electronics High Speed Optocouplers Optocoupler LC Schmitt Trigger RoHS: Compliant 1669
  • 1 $2.8100
  • 250 $2.8000
  • 1,000 $1.3300
  • 2,000 $1.3200
  • 5,000 $1.2600
$1.2600 / $2.8100 Buy Now
DISTI # 73942280
RS Optocouplers, SMT 6-pin DIP, DIN EN/IEC60747-5-5, 5MHz typ, 16mA at 0.5V, 800mW Min Qty: 10 Package Multiple: 1 Lead time: 2 Weeks, 0 Days Container: Bulk 0
  • 10 $4.2400
$4.2400 RFQ
Onlinecomponents.com Optocoupler Logic-Out Open Collector DC-IN 1-CH 6-Pin PDIP SMD White Bulk RoHS: Compliant 0
  • 250 $1.0290
  • 500 $0.7720
  • 750 $0.7210
  • 1,000 $0.7060
$0.7060 / $1.0290 Buy Now
DISTI # 89516632
Verical Optocoupler Logic-Out Open Collector DC-IN 1-CH 6-Pin PDIP SMD Bag RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Americas - 1000
  • 1,000 $0.6474
$0.6474 Buy Now
DISTI # H11N1SVM
TME Optocoupler, SMD, Ch: 1, OUT: Schmitt trigger, 4.17kV, Gull wing 6 Min Qty: 1 0
  • 1 $6.4000
  • 10 $4.4700
  • 25 $3.6600
  • 100 $3.5300
$3.5300 / $6.4000 RFQ
DISTI # H11N1SVM
Avnet Asia Optocoupler Logic-Out Open Collector DC-IN 1-CH 6-Pin PDIP SMD White Bulk (Alt: H11N1SVM) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days 0
  • 1,000 $0.6772
  • 2,000 $0.6684
  • 3,000 $0.6599
  • 5,000 $0.6515
  • 10,000 $0.6354
  • 25,000 $0.6201
  • 50,000 $0.6055
$0.6055 / $0.6772 Buy Now
DISTI # H11N1SVM
Avnet Silica Optocoupler LogicOut Open Collector DCIN 1CH 6Pin PDIP SMD White Bulk (Alt: H11N1SVM) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Silica - 0
Buy Now
DISTI # H11N1SVM
EBV Elektronik Optocoupler LogicOut Open Collector DCIN 1CH 6Pin PDIP SMD White Bulk (Alt: H11N1SVM) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days EBV - 0
Buy Now
Flip Electronics Stock, ship today 2995
RFQ

Part Details for H11N1SVM

H11N1SVM Part Data Attributes

Parametric Data
H11N1SVM onsemi
Buy Now Datasheet
Compare Parts:

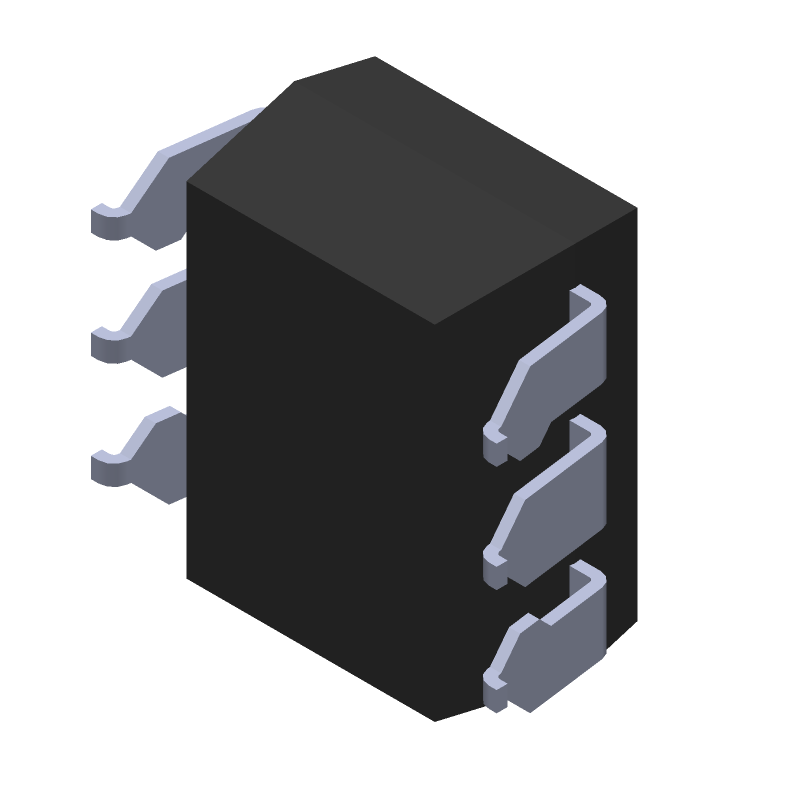

H11N1SVM onsemi 6-Pin DIP Low Input Current Schmitt Trigger Output Optocoupler, PDIP-6, 1000-BLKBG
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ONSEMI
Part Package Code PDIP-6
Package Description DIP-6
Manufacturer Package Code 646BY
Reach Compliance Code compliant
HTS Code 8541.40.80.00
Factory Lead Time 15 Weeks
Samacsys Manufacturer onsemi
Additional Feature OPEN COLLECTOR, UL RECOGNIZED, VDE APPROVED
Configuration SINGLE
Data Rate-Nom 5 MBps
Forward Current-Max 0.03 A
Hysteresis Ratio-Nom 0.65
Isolation Voltage-Max 7500 V
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Elements 1
Number of Functions 1
On-State Current-Max 0.05 A
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Optoelectronic Device Type LOGIC IC OUTPUT OPTOCOUPLER
Power Dissipation-Max 0.15 W
Response Time-Nom 1.5e-7 ns
Supply Voltage-Min 4 V
Supply Voltage-Nom 15 V
Surface Mount YES
Terminal Finish Matte Tin (Sn) - annealed
