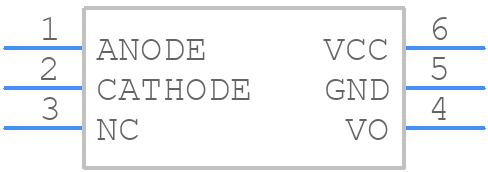

Part Symbol
-

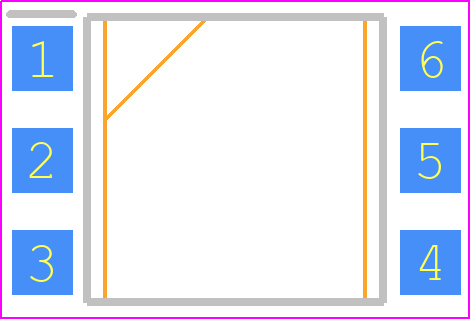

Footprint
-

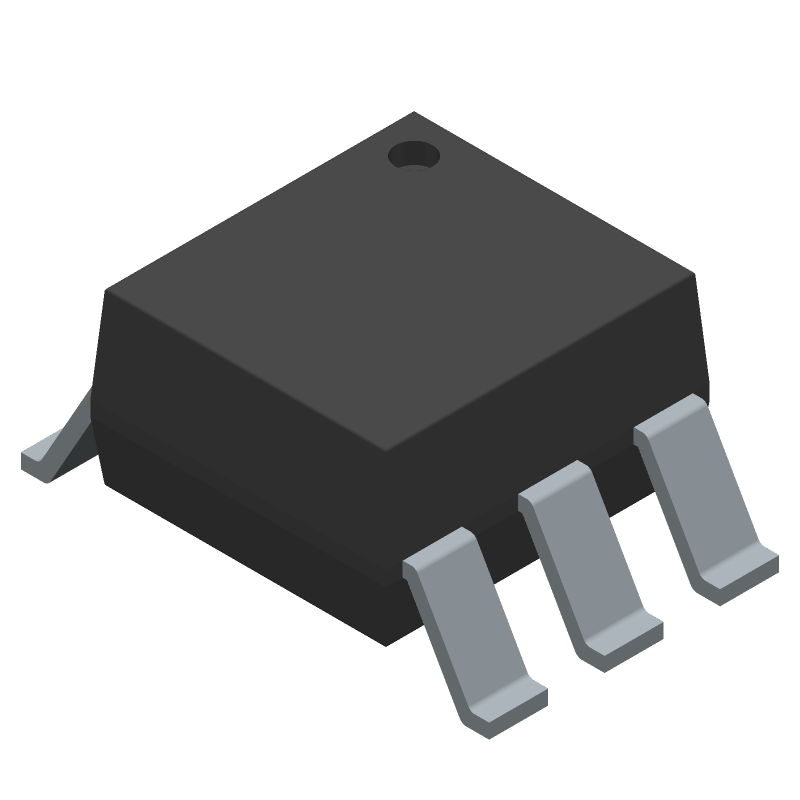

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for H11L1SM by Isocom Components
Results Overview of H11L1SM by Isocom Components
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
Financial Technology (Fintech)
Telecommunications
Communication and Networking
H11L1SM Information
H11L1SM by Isocom Components is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for H11L1SM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
H11L1SMIS-ND
|
DigiKey | OPTOISO 5KV OPEN COLLECTOR 6-SMD Min Qty: 1 Lead time: 3 Weeks Container: Tube |
5460 In Stock |
|
$0.3660 / $1.0900 | Buy Now |
|
DISTI #
87059081
|
Verical | Optocoupler Logic-Out Open Collector DC-IN 1-CH 6-Pin PDIP SMD RoHS: Compliant Min Qty: 2990 Package Multiple: 2990 Date Code: 2402 | Americas - 98670 |
|
$0.3588 | Buy Now |
|
|
Bristol Electronics | 9 |
|
RFQ | ||
|
DISTI #
H11L1SM-ISO
|
TME | Optocoupler, SMD, Ch: 1, OUT: Schmitt trigger, SMD6, H11L1 Min Qty: 1 | 1799 |
|
$0.3800 / $0.8000 | Buy Now |
|
|
NAC | Single Channel 16 V 5000 Vrms Schmitt Trigger Optically Coupled Isolator-DIP-6 RoHS: Compliant Min Qty: 2990 Package Multiple: 65 Container: Tube | 0 |
|
$0.3328 / $0.4940 | Buy Now |
|
|
Utmel Electronic | ISOCOM H11L1SM OPTOCOUPLER, SCHMITT TRIGGER O/P | 18042073 |
|
$0.7977 / $0.9501 | Buy Now |
Part Details for H11L1SM
H11L1SM CAD Models
H11L1SM Part Data Attributes
|
|
H11L1SM
Isocom Components
Buy Now
Datasheet
|
Compare Parts:
H11L1SM
Isocom Components
Logic IC Output Optocoupler, 1-Element, 5300V Isolation, 1MBps, SURFACE MOUNT PACKAGE-6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ISOCOM COMPONENTS LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.40.80.00 | |
| Samacsys Manufacturer | Iso Com | |
| Additional Feature | UL RECOGNIZED, LOGIC LEVEL COMPATIBLE | |
| Configuration | SINGLE | |
| Data Rate-Nom | 1 MBps | |
| Forward Current-Max | 0.05 A | |
| Hysteresis Ratio-Nom | 0.5 | |
| Isolation Voltage-Max | 5300 V | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 1 | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | LOGIC IC OUTPUT OPTOCOUPLER | |
| Power Dissipation-Max | 0.15 W | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 16 V | |
| Surface Mount | YES | |
| Terminal Finish | TIN |
