GWS500-12 Information
GWS500-12 by TDK-Lambda Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for GWS500-12
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
285-GWS500-12-ND
|
DigiKey | AC/DC CONVERTER 12V 500W Min Qty: 1 Lead time: 10 Weeks Container: Bulk |
8 In Stock |
|
$260.3204 / $304.3300 | Buy Now |
|
DISTI #
967-GWS50012
|
Mouser Electronics | Switching Power Supplies 500W 12V 42A AC-DC 115-230VAC RoHS: Compliant | 4 |
|
$260.3200 / $304.3300 | Buy Now |
|
|
Onlinecomponents.com | AC-DC Power Supply - 500W - 12VDC - Input: 85-264VAC - 1U High - Remote on/off RoHS: Compliant |
2 In Stock |
|
$251.4300 / $298.3600 | Buy Now |
|
DISTI #
000000000005398743
|
Sager | Switching Power Supplies 500W 12V 42A AC-DC 115-230VAC Min Qty: 1 | 0 |
|
$255.8900 / $304.3300 | Buy Now |
|
|
Master Electronics | AC-DC Power Supply - 500W - 12VDC - Input: 85-264VAC - 1U High - Remote on/off RoHS: Compliant |
2 In Stock |
|
$251.4300 / $298.3600 | Buy Now |
|
|
Neutron USA | Switching Power Supplies 500W 12V 42A AC-DC 115-230VAC | 39 |
|
$681.4100 | Buy Now |
Part Details for GWS500-12

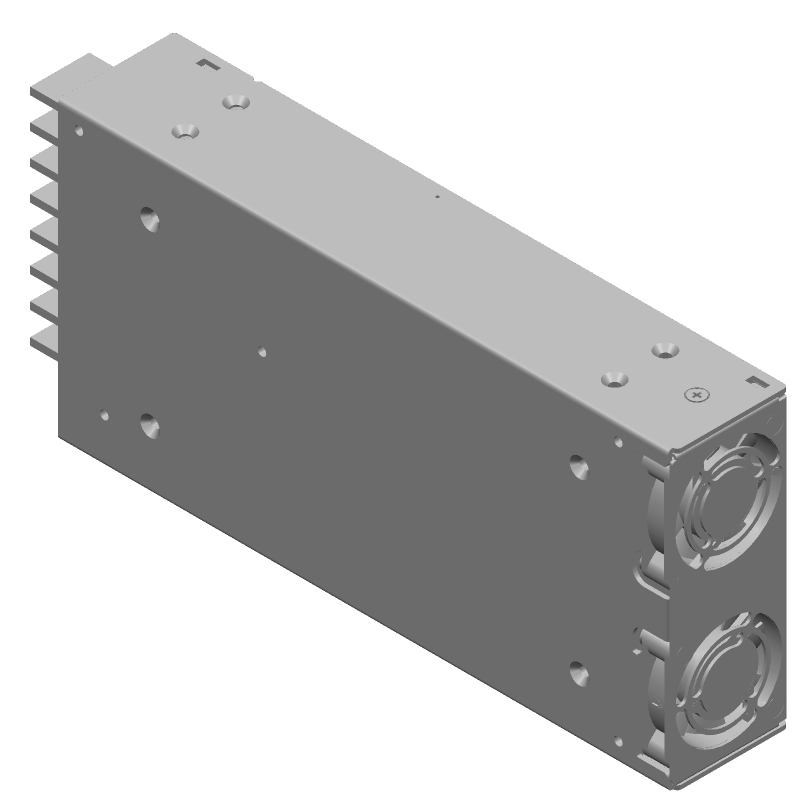

GWS500-12 CAD Models
GWS500-12 Part Data Attributes
|
|
GWS500-12
TDK-Lambda Corporation
Buy Now
Datasheet
|
Compare Parts:
GWS500-12
TDK-Lambda Corporation
AC-DC Regulated Power Supply Module, 500W,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TDK-LAMBDA CORP | |
| Package Description | MODULE | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | TDK Lambda | |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CE, CSA, EN, IEC, UL | |
| Efficiency (Main Output) | 89% | |
| Input Voltage-Max | 264 V | |
| Input Voltage-Min | 85 V | |
| Input Voltage-Nom | 115 V | |
| JESD-30 Code | R-XXMA-X | |
| Line Regulation-Max | 0.00576% | |
| Load Regulation-Max | 0.8% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Current-Max | 42 A | |
| Output Voltage-Max | 13.2 V | |
| Output Voltage-Min | 10.8 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | XMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Protections | OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | UNSPECIFIED | |
| Terminal Position | UNSPECIFIED | |
| Total Power Output-Max | 500 W | |
| Trim/Adjustable Output | YES |
GWS500-12 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the GWS500-12 is -20°C to +71°C, with derating above 50°C.
-
Yes, the GWS500-12 is designed to withstand high-vibration environments, with a vibration test specification of 10-500Hz, 2G acceleration.
-
The MTBF of the GWS500-12 is approximately 550,000 hours at 25°C, calculated according to MIL-HDBK-217F.
-
Yes, the GWS500-12 is compliant with UL60950-1, EN60950-1, and IEC60950-1 safety standards.
-
Yes, the GWS500-12 can be used in a redundant configuration, with features such as parallel operation and current sharing.
