Part Symbol
-
Footprint
-

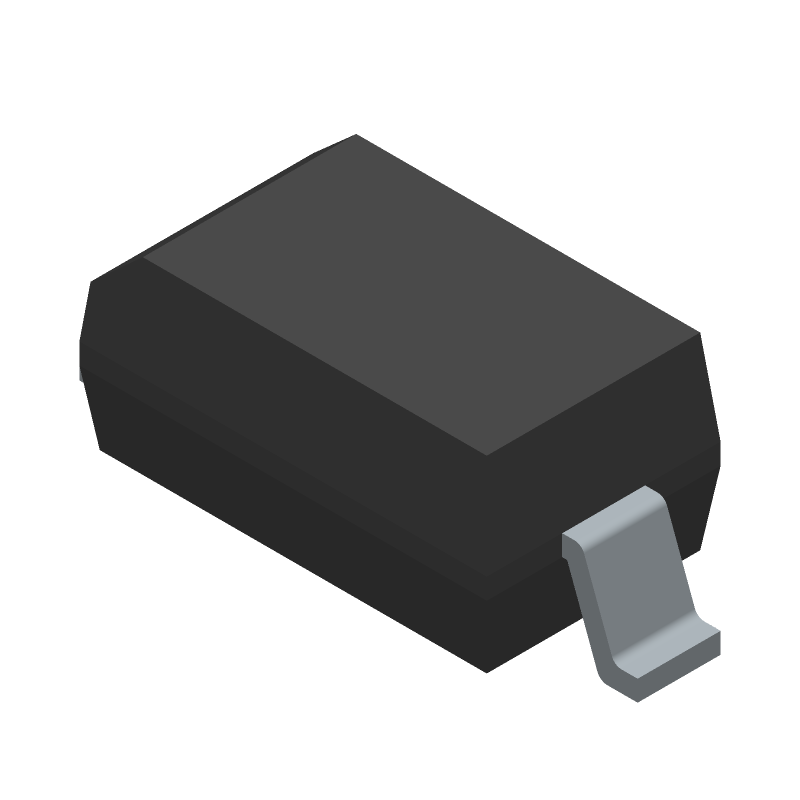

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for GSD2004W-E3-08 by Vishay Intertechnologies
Results Overview of GSD2004W-E3-08 by Vishay Intertechnologies
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
GSD2004W-E3-08 Information
GSD2004W-E3-08 by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for GSD2004W-E3-08
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AK9146
|
Newark | Switching Diode Genpurp Sod123 |Vishay GSD2004W-E3-08 RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 13179 |
|
$0.0250 | Buy Now |
|
DISTI #
06AC6075
|
Newark | Small Signal Diode, 300V, 0.225A, Sod123, Diode Configuration:Single, Repetitive Peak Reverse Voltage:300V, Average Forward Current:225Ma, Forward Voltage Max:1V, Reverse Recovery Time:50Ns, Forward Surge Current:4A, Product Range:- Rohs Compliant: Yes |Vishay GSD2004W-E3-08 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 45 |
|
$0.0230 | Buy Now |
|
DISTI #
09X4203
|
Newark | Switching Diode Genpurp Sod123 |Vishay GSD2004W-E3-08 RoHS: Not Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0370 / $0.0510 | Buy Now |
|
DISTI #
26AK9146
|
Avnet Americas | SWITCHING DIODE GENPURP SOD123 - Product that comes on tape, but is not reeled (Alt: 26AK9146) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 3 Days Container: Ammo Pack | 13179 Partner Stock |
|
$0.0700 / $0.1600 | Buy Now |
|
DISTI #
06AC6075
|
Avnet Americas | SWITCHING DIODE GENPURP SOD123 - Product that comes on tape, but is not reeled (Alt: 06AC6075) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 1 Days Container: Ammo Pack | 45 Partner Stock |
|
$0.1190 / $0.2460 | Buy Now |
|
DISTI #
GSD2004W-E3-08
|
Avnet Americas | SWITCHING DIODE GENPURP SOD123 - Tape and Reel (Alt: GSD2004W-E3-08) RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 11 Weeks, 0 Days Container: Reel | 0 |
|
$0.0259 / $0.0280 | Buy Now |
|
DISTI #
E02:0323_07504896
|
Arrow Electronics | Diode Small Signal Switching Si 300V 0.3A 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks | Europe - 75000 |
|
$0.0310 / $0.0557 | Buy Now |
|
DISTI #
V36:1790_09180334
|
Arrow Electronics | Diode Small Signal Switching Si 300V 0.3A 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 11 Weeks Date Code: 2242 | Americas - 6000 |
|
$0.0268 | Buy Now |
|
DISTI #
V72:2272_09180334
|
Arrow Electronics | Diode Small Signal Switching Si 300V 0.3A 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 2237 Container: Cut Strips | Americas - 1197 |
|
$0.0295 / $0.0782 | Buy Now |
|
DISTI #
52633583
|
Verical | Diode Small Signal Switching Si 300V 0.3A 2-Pin SOD-123 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 | Americas - 75000 |
|
$0.0313 / $0.0372 | Buy Now |
Part Details for GSD2004W-E3-08
GSD2004W-E3-08 CAD Models
GSD2004W-E3-08 Part Data Attributes
|
|
GSD2004W-E3-08
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
GSD2004W-E3-08
Vishay Intertechnologies
Rectifier Diode, 1 Element, 0.225A, 300V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 12 Weeks, 3 Days | |
| Samacsys Manufacturer | Vishay | |
| Application | HIGH VOLTAGE FAST RECOVERY | |
| Breakdown Voltage-Min | 300 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 4 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.225 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Power Dissipation-Max | 0.35 W | |
| Rep Pk Reverse Voltage-Max | 300 V | |
| Reverse Current-Max | 0.1 µA | |
| Reverse Recovery Time-Max | 0.05 µs | |
| Reverse Test Voltage | 240 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL |
GSD2004W-E3-08 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature profile for the GSD2004W-E3-08 is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
-
Yes, the GSD2004W-E3-08 is suitable for high-frequency applications up to 1 GHz due to its low capacitance and inductance values.
-
Yes, the GSD2004W-E3-08 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
-
The maximum operating temperature range for the GSD2004W-E3-08 is -55°C to 150°C.
-
Yes, the GSD2004W-E3-08 is suitable for high-reliability applications due to its high-quality materials and manufacturing process, which ensure a low failure rate and long lifespan.
