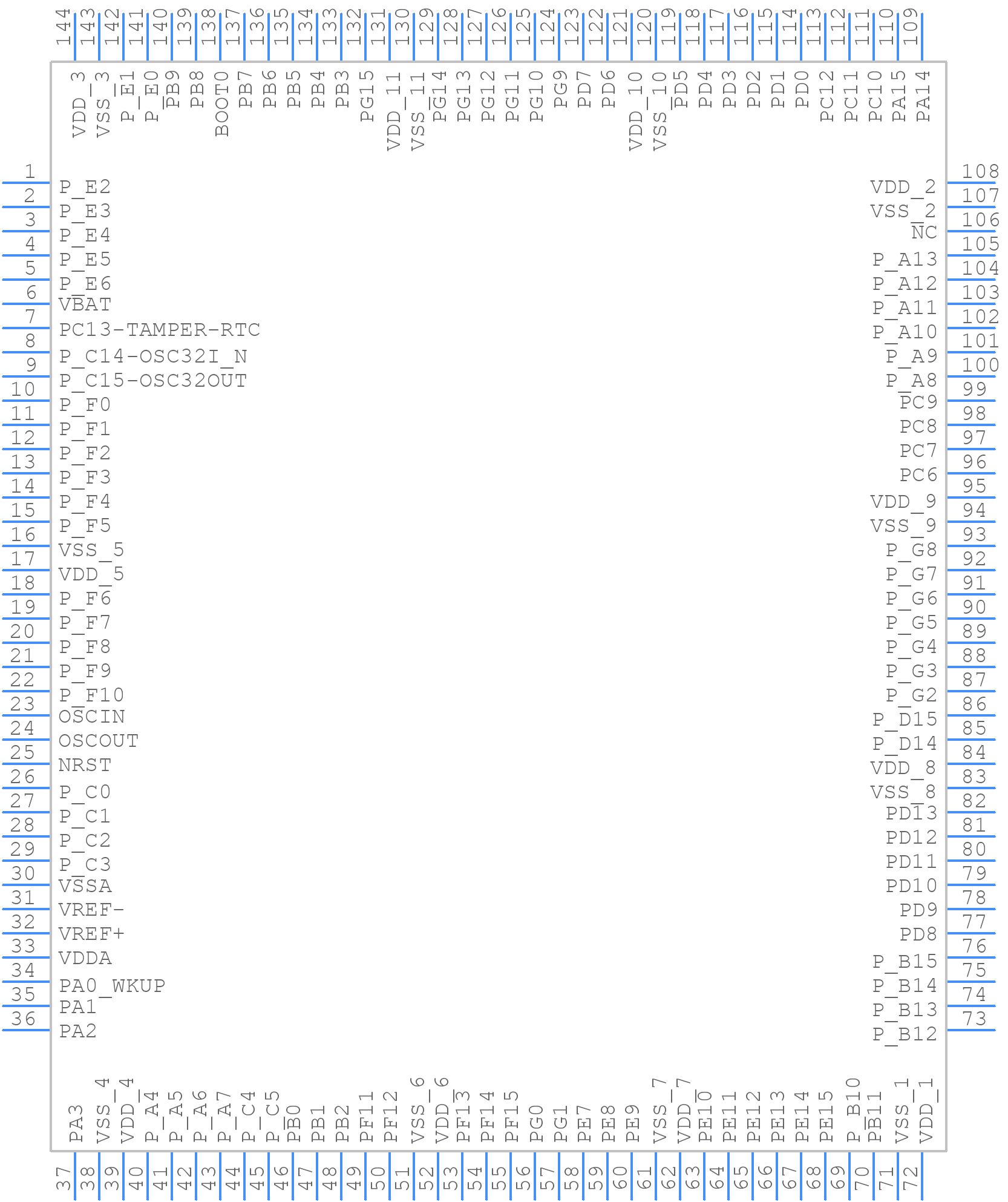

Part Symbol
-

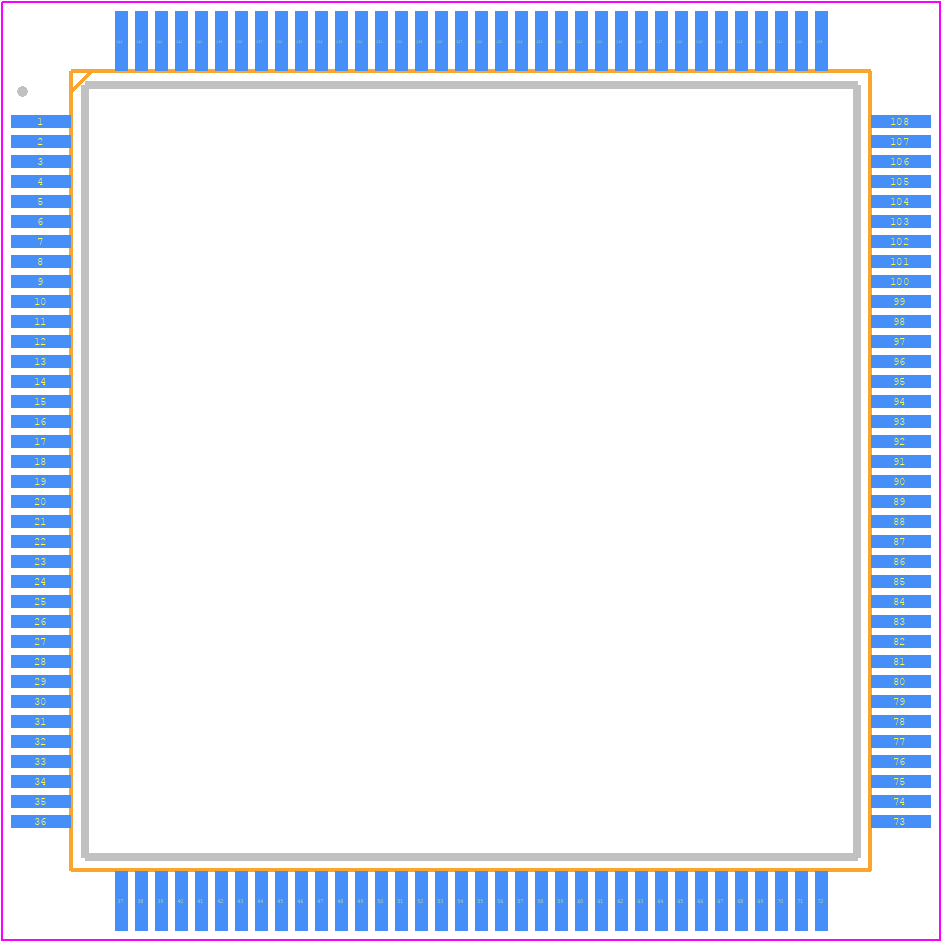

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for GD32F207ZET6 by GigaDevice Semiconductor (Beijing) Inc
Results Overview of GD32F207ZET6 by GigaDevice Semiconductor (Beijing) Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
GD32F207ZET6 Information
GD32F207ZET6 by GigaDevice Semiconductor (Beijing) Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for GD32F207ZET6
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Futuretech Components Ltd | Microcontroller,Tray,OEM/CM/EMS Only | 360 |
|
RFQ |
Part Details for GD32F207ZET6
GD32F207ZET6 CAD Models
GD32F207ZET6 Part Data Attributes
|
|
GD32F207ZET6
GigaDevice Semiconductor (Beijing) Inc
Buy Now
Datasheet
|
Compare Parts:
GD32F207ZET6
GigaDevice Semiconductor (Beijing) Inc
ARM® Cortex®-M3 32-bit MCU, Max Speed (MHz): 120; Memory (Bytes) Flash: 512K; Memory (Bytes) SRAM: 128K; I/O: up to 114; Timer GPTM (16bit): 10; Timer Advanced TM (16bit): 2; Timer Basic TM (16bit): 2; Timer SysTick (24bit): 1; Timer WDG: 2; Timer RTC: 1; Connectivity I2C: 3; Connectivity SPI: 3; Connectivity USB 2 FS: OTG; Connectivity I2S: 2; Analog Interface 12bit ADC Units (CHs): 3(24); Analog Interface 12bit DAC Units: 2; Package: LQFP144
|
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | GIGADEVICE SEMICONDUCTOR INC | |
| Part Package Code | LQFP144 | |
| Package Description | LQFP-144 | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | GigaDevice Semiconductor (HK) Limited | |
| Has ADC | YES | |
| Address Bus Width | 26 | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | CORTEX-M3 | |
| Clock Frequency-Max | 32 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | 16 | |
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G144 | |
| Length | 20 mm | |
| Low Power Mode | YES | |
| Number of DMA Channels | 14 | |
| Number of External Interrupts | 16 | |
| Number of I/O Lines | 114 | |
| Number of Serial I/Os | 8 | |
| Number of Terminals | 144 | |
| Number of Timers | 12 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP144,.87SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| RAM (bytes) | 131072 | |
| RAM (words) | 131072 | |
| ROM (words) | 524288 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 120 MHz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time-Min | SECONDS | |
| Width | 20 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
GD32F207ZET6 Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the GD32F207ZET6 is 120 MHz, but it can be overclocked to 168 MHz with a reduced voltage range.
-
The clock source for the GD32F207ZET6 can be configured using the Clock Control Register (CKCU). The clock source can be set to HSI (High-Speed Internal), HSE (High-Speed External), or PLL (Phase-Locked Loop) mode.
-
The GD32F207ZET6 has 512 KB of Flash memory and 128 KB of SRAM (Static Random Access Memory).
-
Yes, the GD32F207ZET6 has a DMA controller that supports up to 12 channels, allowing for efficient data transfer between peripherals and memory.
-
The GD32F207ZET6 has several low-power modes, including Sleep, Stop, and Standby modes. These modes can be configured using the Power Control Register (PWR) and the Clock Control Register (CKCU).
