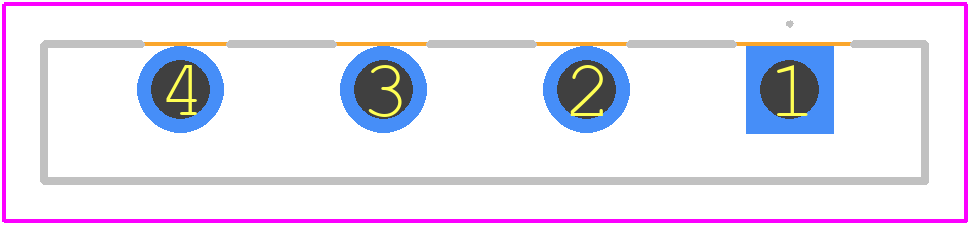

Footprint
-

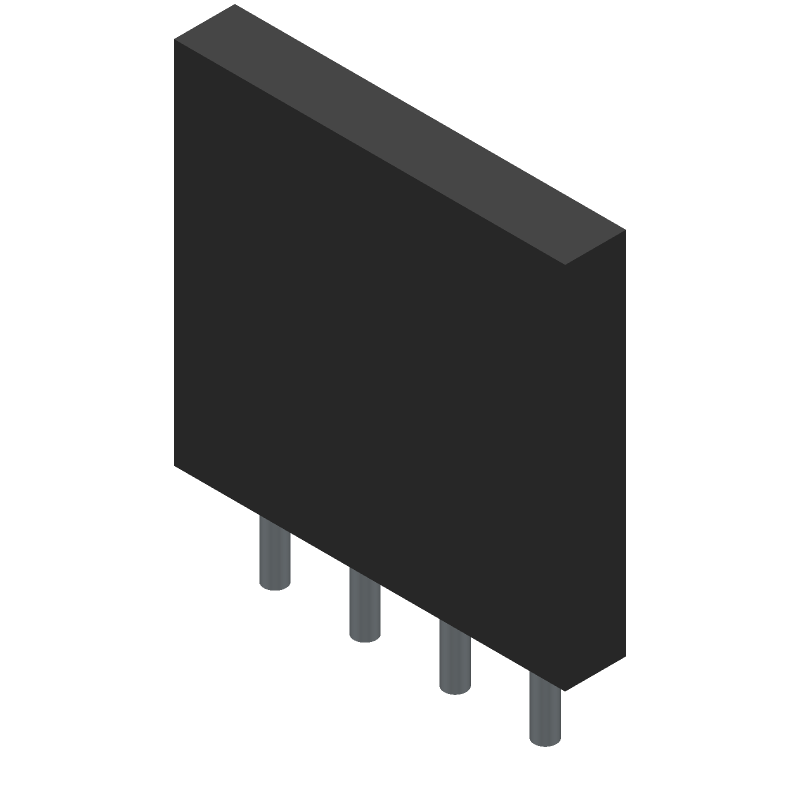

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for GBU807H by Taiwan Semiconductor
Results Overview of GBU807H by Taiwan Semiconductor
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
GBU807H Information
GBU807H by Taiwan Semiconductor is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for GBU807H
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1801-GBU807H-ND
|
DigiKey | BRIDGE RECT 1PHASE 1KV 8A GBU Min Qty: 1 Lead time: 6 Weeks Container: Tube |
980 In Stock |
|
$0.5350 / $1.6200 | Buy Now |
|
DISTI #
GBU807H
|
Avnet Americas | Diode Rectifier Bridge Quad 1000V 8A 4-Pin GBU Tube - Rail/Tube (Alt: GBU807H) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 6 Weeks, 0 Days Container: Tube | 0 |
|
$0.5136 / $0.5487 | Buy Now |
|
DISTI #
821-GBU807H
|
Mouser Electronics | Bridge Rectifiers 8A, 1000V, Standard Bridge Rectifier RoHS: Compliant | 0 |
|
$0.5350 / $1.4500 | Order Now |
|
DISTI #
GBU807H
|
EBV Elektronik | Diode Rectifier Bridge Quad 1000V 8A 4Pin GBU Tube (Alt: GBU807H) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for GBU807H
GBU807H CAD Models
GBU807H Part Data Attributes
|
|
GBU807H
Taiwan Semiconductor
Buy Now
Datasheet
|
Compare Parts:
GBU807H
Taiwan Semiconductor
Bridge Rectifier Diode, 1 Phase, 8A, 1000V V(RRM), Silicon,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TAIWAN SEMICONDUCTOR CO LTD | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Taiwan Semiconductor | |
| Case Connection | ISOLATED | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | BRIDGE RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JESD-30 Code | R-PSFM-T4 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 200 A | |
| Number of Elements | 4 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Reference Standard | AEC-Q101; UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Reverse Current-Max | 5 µA | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE |
