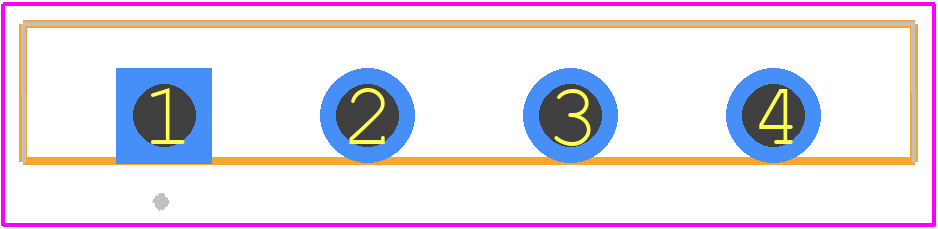

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for GBU806 by Diodes Incorporated
Results Overview of GBU806 by Diodes Incorporated
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
GBU806 Information
GBU806 by Diodes Incorporated is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for GBU806
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
GBU806DI-ND
|
DigiKey | BRIDGE RECT 1PHASE 600V 8A GBU Min Qty: 1 Lead time: 12 Weeks Container: Tube |
44839 In Stock |
|
$0.5250 / $1.7000 | Buy Now |
|
DISTI #
GBU806
|
Avnet Americas | Bridge Rectifier, Single Phase, 600 V, 8 A, SIP, 4 Pins, 1 V - Rail/Tube (Alt: GBU806) RoHS: Compliant Min Qty: 20 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Tube | 17340260 Factory Stock |
|
$0.4491 / $0.4894 | Buy Now |
|
DISTI #
621-GBU806
|
Mouser Electronics | Bridge Rectifiers 8.0A 600V RoHS: Compliant | 1208 |
|
$0.5300 / $1.6500 | Buy Now |
|
DISTI #
A03:0893_13588000
|
Arrow Electronics | Rectifier Bridge Diode Single 600V 8A 4-Pin Case GBU Tube Min Qty: 160 Package Multiple: 20 Lead time: 14 Weeks Date Code: 2510 | Asia - 11440 |
|
$0.3992 / $0.5622 | Buy Now |
|
DISTI #
V79:2366_28369291
|
Arrow Electronics | Rectifier Bridge Diode Single 600V 8A 4-Pin Case GBU Tube Min Qty: 227 Package Multiple: 1 Date Code: 2206 | Americas - 8323 |
|
$0.4345 | Buy Now |
|
DISTI #
E02:0323_01118864
|
Arrow Electronics | Rectifier Bridge Diode Single 600V 8A 4-Pin Case GBU Tube Min Qty: 201 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2352 | Europe - 7960 |
|
$0.4971 / $0.5567 | Buy Now |
|
DISTI #
70438296
|
RS | Bridge Rectifier Single 600V 8A GBU4 Min Qty: 5 Package Multiple: 1 Container: Bulk | 0 |
|
$2.3300 / $2.7500 | RFQ |
|
|
Future Electronics | GBU806 Series 8 A 600 V Bridge Rectifier Through Hole - GBU-4 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Container: Tube | 6547Tube |
|
$0.3450 / $0.3850 | Buy Now |
|
|
Bristol Electronics | Min Qty: 10 | 218 |
|
$0.2050 / $0.5468 | Buy Now |
|
|
Quest Components | 3.2 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE | 174 |
|
$0.5908 / $1.1815 | Buy Now |
Part Details for GBU806
GBU806 CAD Models
GBU806 Part Data Attributes
|
|
GBU806
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
GBU806
Diodes Incorporated
Bridge Rectifier Diode, 1 Phase, 8A, 600V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, GBU, 4 PIN
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Package Description | ROHS COMPLIANT, PLASTIC, GBU, 4 PIN | |
| Pin Count | 4 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Breakdown Voltage-Min | 600 V | |
| Case Connection | ISOLATED | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | BRIDGE RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PSFM-T4 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 200 A | |
| Number of Elements | 4 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE |
Alternate Parts for GBU806
This table gives cross-reference parts and alternative options found for GBU806. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of GBU806, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| GBU8J-E3/51 | Vishay Intertechnologies | $1.5890 | Bridge Rectifier Diode, 1 Phase, 3.9A, 600V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, CASE GBU, 4 PIN | GBU806 vs GBU8J-E3/51 |
