GBPC25005-E4/51 Information
GBPC25005-E4/51 by Vishay Intertechnologies is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for GBPC25005-E4/51
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97K0473
|
Newark | Bridge Rectifier Diode, Single, 50 V, 25 A, 1.1 V, Module, 4 Rohs Compliant: Yes |Vishay GBPC25005-E4/51 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1550 |
|
$2.4300 | Buy Now |
|
DISTI #
GBPC25005-E4/51
|
Avnet Americas | 25A,50V,GPP,BRIDGE RECT. - Bulk (Alt: GBPC25005-E4/51) RoHS: Compliant Min Qty: 200 Package Multiple: 100 Lead time: 7 Weeks, 0 Days Container: Bulk | 0 |
|
$2.2216 / $2.3605 | Buy Now |
|
DISTI #
625-GBPC25005-E4
|
Mouser Electronics | Bridge Rectifiers 25 Amp 50 Volt RoHS: Compliant | 264 |
|
$2.3600 / $5.4000 | Buy Now |
|
DISTI #
V36:1790_18783571
|
Arrow Electronics | Diode Rectifier Bridge Single 50V 25A 4-Pin Case GBPC Bulk Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2335 | Americas - 305 |
|
$1.2457 / $2.2562 | Buy Now |
|
DISTI #
72484900
|
Verical | Diode Rectifier Bridge Single 50V 25A 4-Pin Case GBPC Bulk Min Qty: 3 Package Multiple: 1 Date Code: 2335 | Americas - 305 |
|
$1.2457 / $1.4252 | Buy Now |
|
DISTI #
GBPC25005-E4/51
|
TTI | Bridge Rectifiers 25 Amp 50 Volt RoHS: Compliant pbFree: Pb-Free Min Qty: 200 Package Multiple: 100 Container: Bulk | Americas - 0 |
|
$1.9800 / $2.0800 | Buy Now |
|
DISTI #
GBPC25005-E4/51
|
EBV Elektronik | 25A50VGPPBRIDGE RECT (Alt: GBPC25005-E4/51) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Diodes | 518 |
|
RFQ |
Part Details for GBPC25005-E4/51

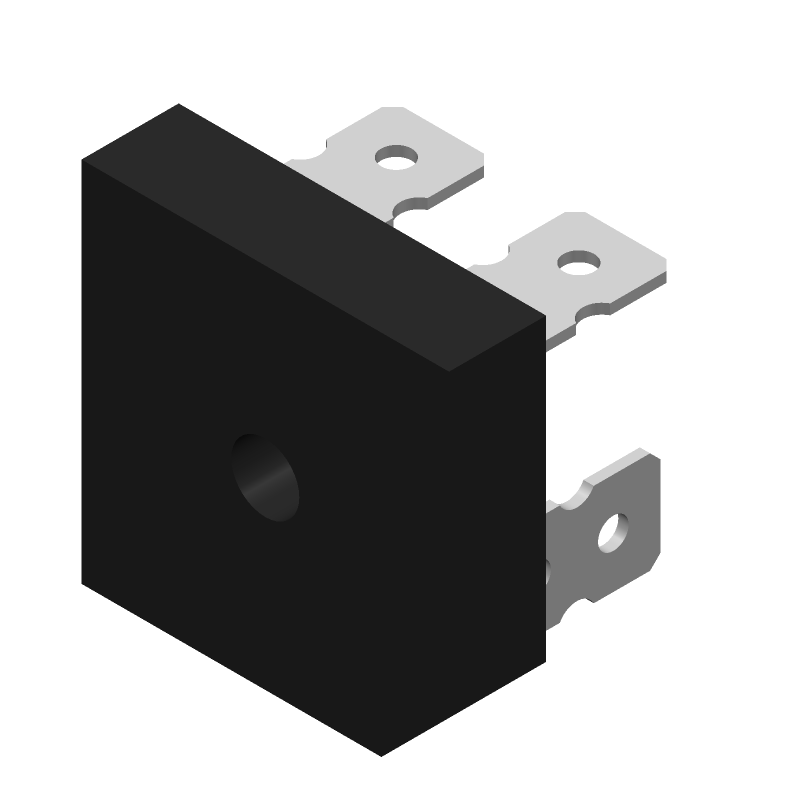

GBPC25005-E4/51 CAD Models
GBPC25005-E4/51 Part Data Attributes
|
|
GBPC25005-E4/51
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
GBPC25005-E4/51
Vishay Intertechnologies
Bridge Rectifier Diode, 1 Phase, 25A, 50V V(RRM), Silicon,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Breakdown Voltage-Min | 50 V | |
| Case Connection | ISOLATED | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | BRIDGE RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.1 V | |
| JESD-30 Code | S-PUFM-D4 | |
| Non-rep Pk Forward Current-Max | 300 A | |
| Number of Elements | 4 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 25 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 50 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Test Voltage | 50 V | |
| Surface Mount | NO | |
| Terminal Finish | NICKEL | |
| Terminal Form | SOLDER LUG | |
| Terminal Position | UPPER |
Alternate Parts for GBPC25005-E4/51
This table gives cross-reference parts and alternative options found for GBPC25005-E4/51. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of GBPC25005-E4/51, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| GBPC25005 | onsemi | $3.6554 | 25 A Bridge Rectifer, GBPC4 28.75x28.75x11.10, 50-BLKBG | GBPC25005-E4/51 vs GBPC25005 |
GBPC25005-E4/51 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
-
While the GBPC25005-E4/51 is primarily designed for general-purpose applications, it can be used in high-frequency applications up to 1 MHz. However, it's crucial to consider the component's parasitic inductance and capacitance, which may affect its performance at higher frequencies.
-
The GBPC25005-E4/51 is a commercial-grade component, and its reliability and performance may not meet the stringent requirements of high-reliability or aerospace applications. For such applications, it's recommended to use components specifically designed and qualified for those markets.
-
The GBPC25005-E4/51 has a maximum operating temperature of 150°C (302°F). While it can tolerate high temperatures, it's essential to derate the component's power handling and consider the potential impact of high temperatures on its reliability and lifespan.
-
To prevent damage and ensure the component's reliability, it's recommended to store the GBPC25005-E4/51 in a dry, cool place, away from direct sunlight and moisture. Handle the component by its body, avoiding touching the leads or glass passivation to prevent electrical discharge damage.
