Part Symbol
-

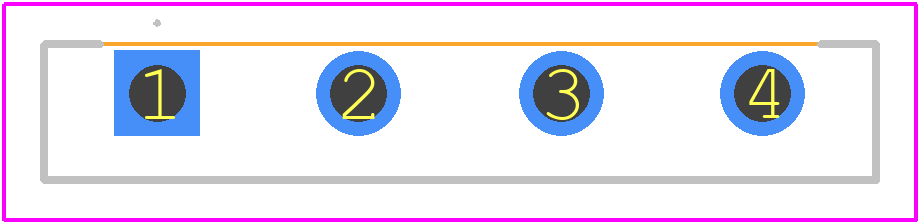

Footprint
-

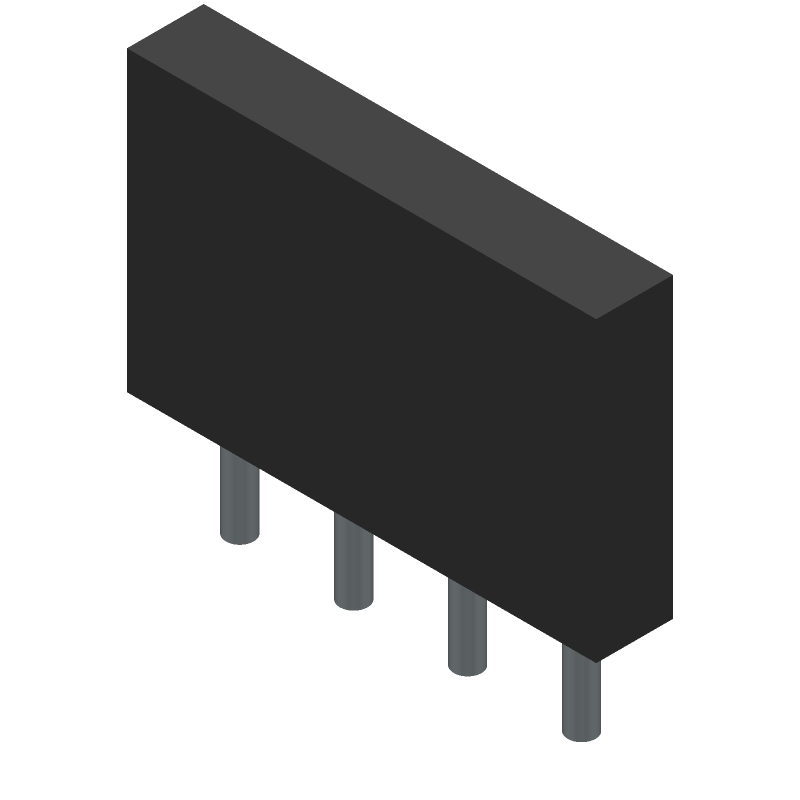

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for GBL10E-E3/P by Vishay Intertechnologies
Results Overview of GBL10E-E3/P by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
GBL10E-E3/P Information
GBL10E-E3/P by Vishay Intertechnologies is a Bridge Rectifier Diode.
Bridge Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for GBL10E-E3/P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
GBL10E-E3/P
|
Avnet Americas | - Rail/Tube (Alt: GBL10E-E3/P) RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 7 Weeks, 0 Days Container: Tube | 0 |
|
$0.5458 / $0.5685 | Buy Now |
|
DISTI #
78-GBL10E-E3/P
|
Mouser Electronics | Bridge Rectifiers 4A,1000V,GPP,INLINE BRIDGE RoHS: Compliant | 21013 |
|
$0.5970 / $1.6800 | Buy Now |
|
DISTI #
GBL10E-E3/P
|
TTI | Bridge Rectifiers 4A,1000V,GPP,INLINE BRIDGE RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.5690 | Buy Now |
|
DISTI #
GBL10E-E3/P
|
EBV Elektronik | (Alt: GBL10E-E3/P) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for GBL10E-E3/P
GBL10E-E3/P CAD Models
GBL10E-E3/P Part Data Attributes
|
|
GBL10E-E3/P
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
GBL10E-E3/P
Vishay Intertechnologies
Bridge Rectifier Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Breakdown Voltage-Min | 1000 V | |
| Case Connection | ISOLATED | |
| Configuration | BRIDGE, 4 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | BRIDGE RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PSIP-T4 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 150 A | |
| Number of Elements | 4 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 2.6 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Reference Standard | UL RECOGNIZED | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Test Voltage | 1000 V | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE |
GBL10E-E3/P Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the GBL10E-E3/P is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a 0.5 mm radius corner and a 0.3 mm spacing between pads.
-
The GBL10E-E3/P is rated for operation up to 150°C, but it's recommended to derate the power dissipation at higher temperatures. Consult the datasheet for specific derating curves.
-
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a soldering flux that is compatible with the component's lead-free finish. Avoid applying excessive heat or force, which can damage the component.
-
The typical lead time for delivery of the GBL10E-E3/P varies depending on the region and availability. Check with authorized distributors or Vishay Intertechnologies' website for the latest lead time information.
-
Yes, the GBL10E-E3/P is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for lead-free and halogen-free materials.
