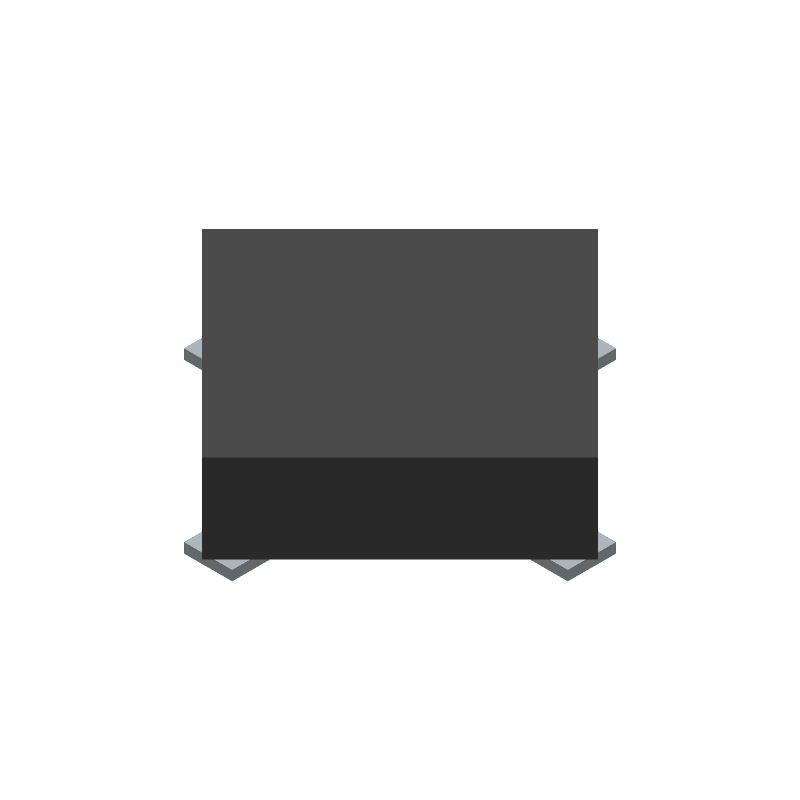

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for GAT-6+ by Mini-Circuits
Results Overview of GAT-6+ by Mini-Circuits
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
GAT-6+ Information
GAT-6+ by Mini-Circuits is an RF/Microwave Attenuator.
RF/Microwave Attenuators are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for GAT-6+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3157-GAT-6+CT-ND
|
DigiKey | 6 DB SMT FIXED ATT, DC 8000 MHZ Min Qty: 1 Lead time: 2 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
512 In Stock |
|
$2.7250 / $4.4500 | Buy Now |
|
DISTI #
139-GAT-6
|
Mouser Electronics | Attenuators 6 dB SMT Fixed Attenuator, DC - 8000 MHz, 50? RoHS: Compliant | 686 |
|
$2.8600 / $4.0300 | Buy Now |
|
|
Bristol Electronics | 20 |
|
RFQ | ||
|
|
Quest Components | 0 MHZ - 8000 MHZ RF/MICROWAVE FIXED ATTENUATOR | 28004 |
|
$1.5225 / $4.3500 | Buy Now |
|
|
Quest Components | 0 MHZ - 8000 MHZ RF/MICROWAVE FIXED ATTENUATOR | 32 |
|
$3.7746 / $5.6619 | Buy Now |
|
|
LCSC | RF Attenuators ROHS | 3 |
|
$4.1112 / $4.3451 | Buy Now |
Part Details for GAT-6+
GAT-6+ CAD Models
GAT-6+ Part Data Attributes
|
|
GAT-6+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
GAT-6+
Mini-Circuits
Fixed Attenuator, 0MHz Min, 8000MHz Max, 3 X 3 MM, ROHS COMPLIANT, MINIATURE, PLASTIC, CASE FG873, 4 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MINI-CIRCUITS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Mini-Circuits | |
| Additional Feature | USABLE TO 10000 MHZ | |
| Attenuation-Nom | 6 dB | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Input Power-Max (CW) | 26.99 dBm | |
| JESD-609 Code | e2 | |
| Number of Terminals | 4 | |
| Operating Frequency-Max | 8000 MHz | |
| Operating Frequency-Min | ||
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -45 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | MODULE,4LEAD(UNSPEC) | |
| RF/Microwave Device Type | FIXED ATTENUATOR | |
| Terminal Finish | TIN SILVER OVER NICKEL | |
| VSWR-Max | 1.3 |
Alternate Parts for GAT-6+
This table gives cross-reference parts and alternative options found for GAT-6+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of GAT-6+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| GAT-6 | Mini-Circuits | Check for Price | Fixed Attenuator, 0MHz Min, 8000MHz Max, 3 X 3 MM, MINIATURE, PLASTIC, CASE FG873, 4 PIN | GAT-6+ vs GAT-6 |
