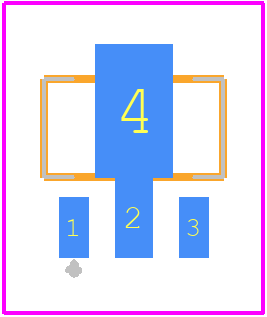

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for GALI-6F+ by Mini-Circuits
Results Overview of GALI-6F+ by Mini-Circuits
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Telecommunications
GALI-6F+ Information
GALI-6F+ by Mini-Circuits is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.
RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.
Price & Stock for GALI-6F+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3157-GALI-6F+CT-ND
|
DigiKey | IC AMP CELLULAR 0HZ-4GHZ SOT89 Min Qty: 1 Lead time: 2 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
485 In Stock |
|
$1.8720 / $2.4300 | Buy Now |
|
DISTI #
139-GALI-6F
|
Mouser Electronics | RF Amplifier ML AMPL / SURF MT / RoHS RoHS: Compliant | 675 |
|
$1.8700 / $2.3100 | Buy Now |
|
|
Bristol Electronics | 26 |
|
RFQ |
Part Details for GALI-6F+
GALI-6F+ CAD Models
GALI-6F+ Part Data Attributes
|
|
GALI-6F+
Mini-Circuits
Buy Now
Datasheet
|
Compare Parts:
GALI-6F+
Mini-Circuits
Wide Band Low Power Amplifier, 0MHz Min, 4000MHz Max, 1 Func, SOT-89, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MINI-CIRCUITS | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Mini-Circuits | |
| Additional Feature | HIGH RELIABILITY | |
| Characteristic Impedance | 50 Ω | |
| Construction | COMPONENT | |
| Gain | 10 dB | |
| Input Power-Max (CW) | 20 dBm | |
| JESD-609 Code | e2 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Operating Frequency-Max | 4000 MHz | |
| Operating Frequency-Min | ||
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -45 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | TO-243 | |
| Power Supplies | 4.8 V | |
| RF/Microwave Device Type | WIDE BAND LOW POWER | |
| Surface Mount | YES | |
| Terminal Finish | TIN SILVER OVER NICKEL | |
| VSWR-Max | 2.2 |
Alternate Parts for GALI-6F+
This table gives cross-reference parts and alternative options found for GALI-6F+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of GALI-6F+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SGA6289Z | Qorvo | Check for Price | Wide Band Low Power Amplifier, 0MHz Min, 4500MHz Max, 1 Func, BIPolar, HALOGEN FREE AND ROHS COMPLIANT, SOT-89, 3 PIN | GALI-6F+ vs SGA6289Z |
| SGA-6286Z | RF Micro Devices Inc | Check for Price | Wide Band Low Power Amplifier, 0MHz Min, 5500MHz Max, 1 Func, BIPolar, GREEN PACKAGE-4 | GALI-6F+ vs SGA-6286Z |
| SGA-5386Z | RF Micro Devices Inc | Check for Price | Wide Band Low Power Amplifier, 0MHz Min, 5000MHz Max, 1 Func, BIPolar, ROHS COMPLIANT PACKAGE-4 | GALI-6F+ vs SGA-5386Z |
| AG603-89 | TriQuint Semiconductor | Check for Price | Wide Band Low Power Amplifier, 0MHz Min, 3000MHz Max, TO-243C, SOT-89, 3 PIN | GALI-6F+ vs AG603-89 |
| SGA-6386 | RF Micro Devices Inc | Check for Price | Wide Band Low Power Amplifier, 0MHz Min, 5000MHz Max, 1 Func, BIPolar, SOT-86, 4 PIN | GALI-6F+ vs SGA-6386 |
| SGA-6289 | RF Micro Devices Inc | Check for Price | Wide Band Low Power Amplifier, 0MHz Min, 4500MHz Max, 1 Func, BIPolar, SOT-89, 3 PIN | GALI-6F+ vs SGA-6289 |
| SGA6289ZSQ | Qorvo | Check for Price | Wide Band Low Power Amplifier, 0MHz Min, 4500MHz Max, 1 Func, BIPolar, HALOGEN FREE AND ROHS COMPLIANT, SOT-89, 3 PIN | GALI-6F+ vs SGA6289ZSQ |
| SGA-6389Z | RF Micro Devices Inc | Check for Price | Wide Band Low Power Amplifier, 0MHz Min, 4500MHz Max, 1 Func, BIPolar, GREEN PACKAGE-3 | GALI-6F+ vs SGA-6389Z |
| MMG3009NT1 | Freescale Semiconductor | Check for Price | 0MHz - 6000MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, ROHS COMPLIANT, PLASTIC, CASE 1514-02, SOT- 89, 3 PIN | GALI-6F+ vs MMG3009NT1 |
| SXA-289 | Sirenza Microdevices | Check for Price | Wide Band Medium Power Amplifier, 5MHz Min, 2000MHz Max, 1 Func, GAAS, PLASTIC PACKAGE-4 | GALI-6F+ vs SXA-289 |
GALI-6F+ Frequently Asked Questions (FAQ)
-
The GALI-6F+ can operate from -40°C to +85°C, but the optimal operating temperature range is from 0°C to 50°C for best performance.
-
The GALI-6F+ requires a bias voltage of 5V ± 0.5V and a bias current of 100mA ± 10mA. Ensure the power supply is stable and decoupled to prevent noise and oscillations.
-
Use a 4-layer PCB with a solid ground plane, and ensure the GALI-6F+ is placed near the edge of the board. Use a star-grounding scheme and decouple the power supply lines with 10nF capacitors.
-
Handle the GALI-6F+ by the package, not the leads. Store the device in an anti-static bag or wrap it in anti-static material. Avoid bending or flexing the leads during assembly.
-
Use a soldering profile with a peak temperature of 240°C ± 5°C, and a dwell time of 30-60 seconds. Ensure the soldering iron is ESD-safe and the PCB is properly cleaned and prepared.
