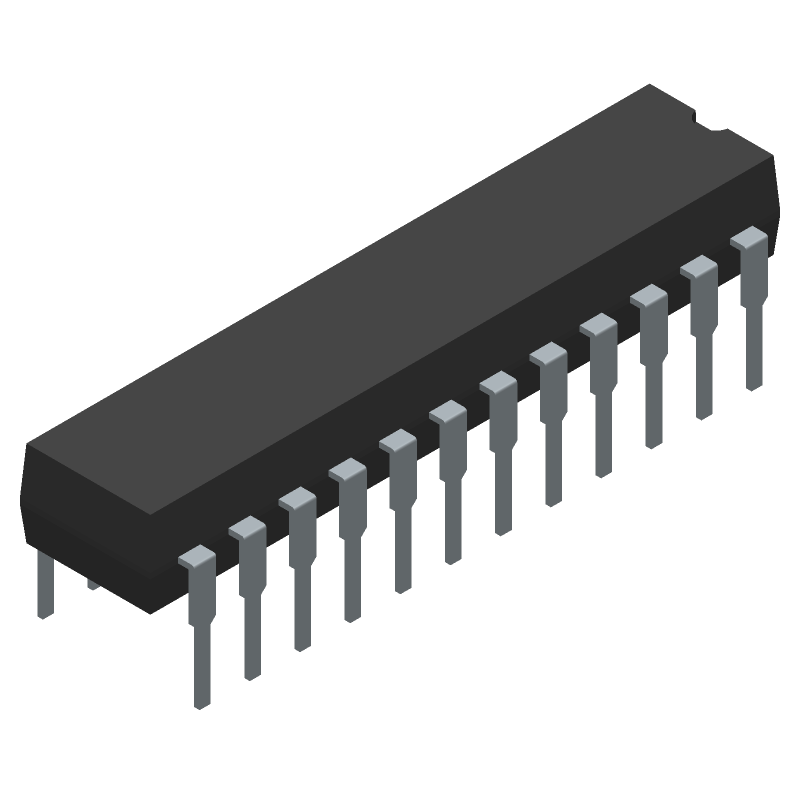

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for GAL20V8B-15LP by Lattice Semiconductor Corporation
Results Overview of GAL20V8B-15LP by Lattice Semiconductor Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Financial Technology (Fintech)
Healthcare
GAL20V8B-15LP Information
GAL20V8B-15LP by Lattice Semiconductor Corporation is a Programmable Logic Device.
Programmable Logic Devices are under the broader part category of Programmable Logic Devices.
Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.
Price & Stock for GAL20V8B-15LP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 52 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 2 | 29 |
|
$2.1840 / $4.3680 | Buy Now |
|
|
Quest Components | IC,SIMPLE-EEPLD,PAL-TYPE,CMOS,DIP,24PIN,PLASTIC | 41 |
|
$2.5400 / $3.8100 | Buy Now |
|
|
Quest Components | IC,SIMPLE-EEPLD,PAL-TYPE,CMOS,DIP,24PIN,PLASTIC | 12 |
|
$2.9250 / $5.8500 | Buy Now |
|
|
Win Source Electronics | IC CPLD 8MC 15NS 24DIP | 3394 |
|
$2.6781 / $4.0171 | Buy Now |
Part Details for GAL20V8B-15LP
GAL20V8B-15LP CAD Models
GAL20V8B-15LP Part Data Attributes
|
|
GAL20V8B-15LP
Lattice Semiconductor Corporation
Buy Now
Datasheet
|
Compare Parts:
GAL20V8B-15LP
Lattice Semiconductor Corporation
EE PLD, 15ns, PAL-Type, CMOS, PDIP24, PLASTIC, DIP-24
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | LATTICE SEMICONDUCTOR CORP | |
| Part Package Code | DIP | |
| Package Description | PLASTIC, DIP-24 | |
| Pin Count | 24 | |
| Reach Compliance Code | not_compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Lattice Semiconductor | |
| Additional Feature | REGISTER PRELOAD; POWER-UP RESET | |
| Architecture | PAL-TYPE | |
| Clock Frequency-Max | 45.5 MHz | |
| JESD-30 Code | R-PDIP-T24 | |
| JESD-609 Code | e0 | |
| Length | 31.75 mm | |
| Number of Dedicated Inputs | 12 | |
| Number of I/O Lines | 8 | |
| Number of Inputs | 20 | |
| Number of Outputs | 8 | |
| Number of Product Terms | 64 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 75 °C | |
| Operating Temperature-Min | ||
| Organization | 12 DEDICATED INPUTS, 8 I/O | |
| Output Function | MACROCELL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP24,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Programmable Logic Type | EE PLD | |
| Propagation Delay | 15 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.334 mm | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL EXTENDED | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for GAL20V8B-15LP
This table gives cross-reference parts and alternative options found for GAL20V8B-15LP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of GAL20V8B-15LP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 5962-8984003LA | Lattice Semiconductor Corporation | Check for Price | EE PLD, 15ns, PAL-Type, CMOS, CDIP24, CERDIP-24 | GAL20V8B-15LP vs 5962-8984003LA |
| GAL20V8B-15LD/883 | Lattice Semiconductor Corporation | Check for Price | EE PLD, 15ns, PAL-Type, CMOS, CDIP24, CERDIP-24 | GAL20V8B-15LP vs GAL20V8B-15LD/883 |
GAL20V8B-15LP Frequently Asked Questions (FAQ)
-
The maximum operating frequency of GAL20V8B-15LP is 150 MHz.
-
GAL20V8B-15LP has 20 macrocells.
-
The power consumption of GAL20V8B-15LP is typically 150 mW at 5V and 25°C.
-
Yes, GAL20V8B-15LP is 5V tolerant, meaning it can accept 5V input signals.
-
GAL20V8B-15LP uses EEPROM (Electrically Erasable Programmable Read-Only Memory) programming technology.
