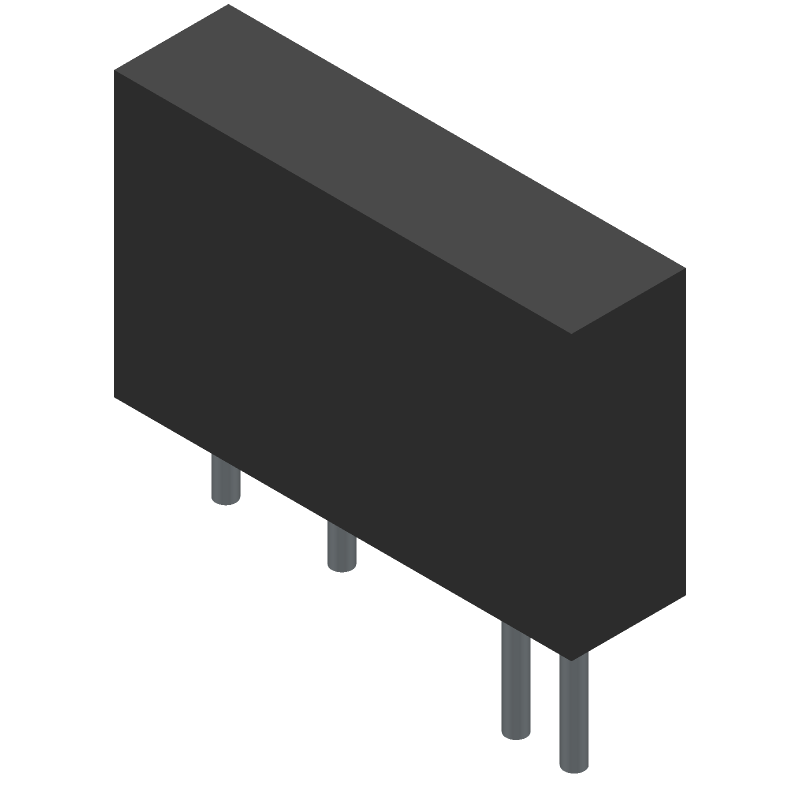

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for G6DS-1A-DC24 by OMRON Electronic Components LLC
Results Overview of G6DS-1A-DC24 by OMRON Electronic Components LLC
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
G6DS-1A-DC24 Information
G6DS-1A-DC24 by OMRON Electronic Components LLC is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Part Details for G6DS-1A-DC24
G6DS-1A-DC24 CAD Models
G6DS-1A-DC24 Part Data Attributes
|
|
G6DS-1A-DC24
OMRON Electronic Components LLC
Buy Now
Datasheet
|
Compare Parts:
G6DS-1A-DC24
OMRON Electronic Components LLC
Power/Signal Relay, SPST, Momentary, 0.01A (Coil), 24VDC (Coil), 180mW (Coil), 5A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | OMRON CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.41.00.20 | |
| Samacsys Manufacturer | Omron Electronics | |
| Body Breadth | 5.08 mm | |
| Body Height | 12.5 mm | |
| Body Length or Diameter | 21.3 mm | |
| Coil Current(DC)-Max | 0.01 A | |
| Coil Operate Voltage(DC) | 18 V | |
| Coil Power | 180 mW | |
| Coil Release Voltage(DC) | 1.2 V | |
| Coil Resistance | 3200 Ω | |
| Coil Voltage(DC)-Max | 24 V | |
| Coil/Input Supply Type | DC | |
| Contact (AC) Max Rating R Load | 5A@250VAC | |
| Contact Current(AC)-Max | 5 A | |
| Contact Current(DC)-Max | 5 A | |
| Contact (DC) Max Rating R Load | 5A@30VDC | |
| Contact Voltage(AC)-Max | 250 V | |
| Contact Voltage(DC)-Max | 30 V | |
| Contact/Output Supply Type | AC/DC | |
| Electrical Life | 100000 Cycle(s) | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operate Time | 10 ms | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | BOX; TUBE | |
| Physical Dimension | 21.3mm x 5.08mm x 12.5mm | |
| Reference Standard | CSA; UL; VDE | |
| Relay Action | MOMENTARY | |
| Relay Function | SPST | |
| Relay Type | POWER/SIGNAL RELAY | |
| Release Time | 5 ms | |
| Surface Mount | NO | |
| Termination Type | SOLDER |
G6DS-1A-DC24 Frequently Asked Questions (FAQ)
-
The maximum switching frequency of the G6DS-1A-DC24 relay is 20 operations per minute.
-
The G6DS-1A-DC24 relay is designed to operate in temperatures between -20°C and 60°C. Operating it in high-temperature environments may reduce its lifespan.
-
To ensure proper driving of the relay, make sure to provide a clean and stable DC power supply, and use a suitable driver circuit to handle the relay's coil voltage and current requirements.
-
The recommended wire size for connecting to the relay's terminals is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).
-
The G6DS-1A-DC24 relay is not designed for use in safety-critical applications. It is recommended to use relays specifically designed for safety-critical applications, such as those with built-in safety features and certifications.
