G5NB-1A-DC12 Information
G5NB-1A-DC12 by OMRON Electronic Components LLC is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| ADC12DL080CIVS/NOPB | Texas Instruments | Dual-Channel, 12-Bit, 80-MSPS, 600-MHz Input Bandwidth Analog-to-Digital Converter (ADC) 64-TQFP -40 to 85 | |
| ADC122S051CIMM/NOPB | Texas Instruments | 2 Channel, 200 ksps to 500 ksps 12-Bit A/D Converter 8-VSSOP -40 to 85 | |
| ADC121S655CIMM/NOPB | Texas Instruments | 12-Bit, 200 kSPS to 500 kSPS, Differential Input, Micro Power A/D Converter 8-VSSOP 0 to 0 |
Price & Stock for G5NB-1A-DC12
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Onlinecomponents.com | Power Relay 12VDC 3A SPST-NO(20.5x7.2x15.3)mm THT RoHS: Compliant | 87500 Factory Stock |
|
$1.0300 / $1.5300 | Buy Now |
|
|
Master Electronics | Power Relay 12VDC 3A SPST-NO(20.5x7.2x15.3)mm THT RoHS: Compliant | 87500 Factory Stock |
|
$1.0300 / $1.5300 | Buy Now |
Part Details for G5NB-1A-DC12

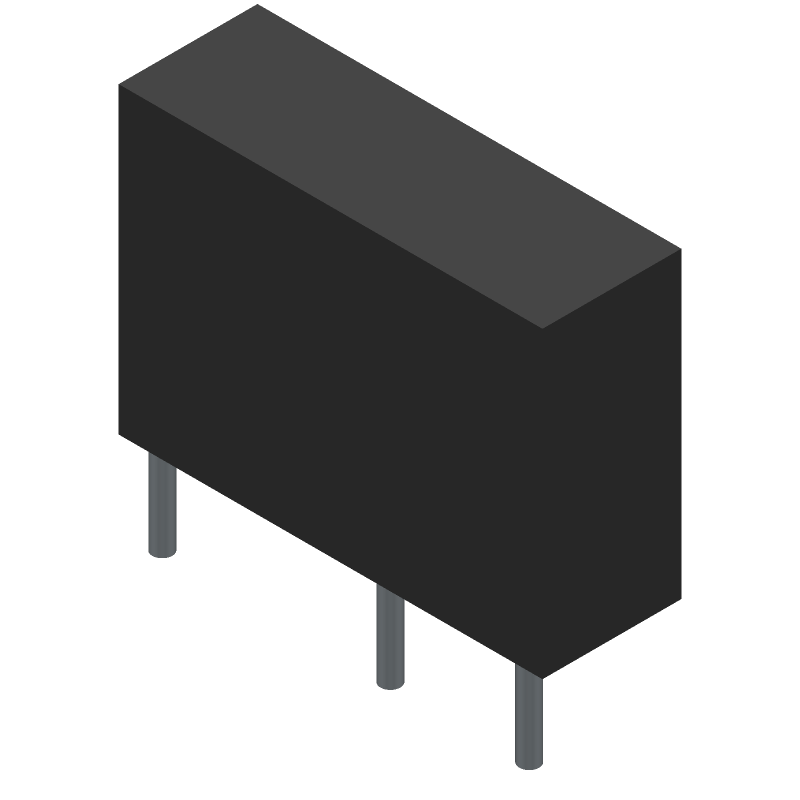

G5NB-1A-DC12 CAD Models
G5NB-1A-DC12 Part Data Attributes
|
|
G5NB-1A-DC12
OMRON Electronic Components LLC
Buy Now
Datasheet
|
Compare Parts:
G5NB-1A-DC12
OMRON Electronic Components LLC
Power/Signal Relay, SPST, Momentary, 0.017A (Coil), 12VDC (Coil), 200mW (Coil), 3A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | OMRON CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.41.00.20 | |
| Samacsys Manufacturer | Omron Electronics | |
| Body Breadth | 7.2 mm | |
| Body Height | 15.3 mm | |
| Body Length or Diameter | 20.5 mm | |
| Coil Current(DC)-Max | 0.017 A | |
| Coil Operate Voltage(DC) | 9 V | |
| Coil Power | 200 mW | |
| Coil Release Voltage(DC) | 1.2 V | |
| Coil Resistance | 720 Ω | |
| Coil Voltage(DC)-Max | 12 V | |
| Coil/Input Supply Type | DC | |
| Contact (AC) Max Rating R Load | 3A@250VAC | |
| Contact Current(AC)-Max | 3 A | |
| Contact Current(DC)-Max | 3 A | |
| Contact (DC) Max Rating R Load | 3A@30VDC | |
| Contact Voltage(AC)-Max | 250 V | |
| Contact Voltage(DC)-Max | 30 V | |
| Contact/Output Supply Type | AC/DC | |
| Electrical Life | 200000 Cycle(s) | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operate Time | 10 ms | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -40 °C | |
| Physical Dimension | 20.5mm x 7.2mm x 15.3mm | |
| Reference Standard | CSA; UL; VDE | |
| Relay Action | MOMENTARY | |
| Relay Function | SPST | |
| Relay Type | POWER/SIGNAL RELAY | |
| Release Time | 10 ms | |
| Surface Mount | NO | |
| Termination Type | SOLDER |
Alternate Parts for G5NB-1A-DC12
This table gives cross-reference parts and alternative options found for G5NB-1A-DC12. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of G5NB-1A-DC12, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| G5NB-1ADC12 | OMRON Corporation | Check for Price | Power/Signal Relay, SPST, Momentary, 0.017A (Coil), 12VDC (Coil), 200mW (Coil), 3A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT | G5NB-1A-DC12 vs G5NB-1ADC12 |
