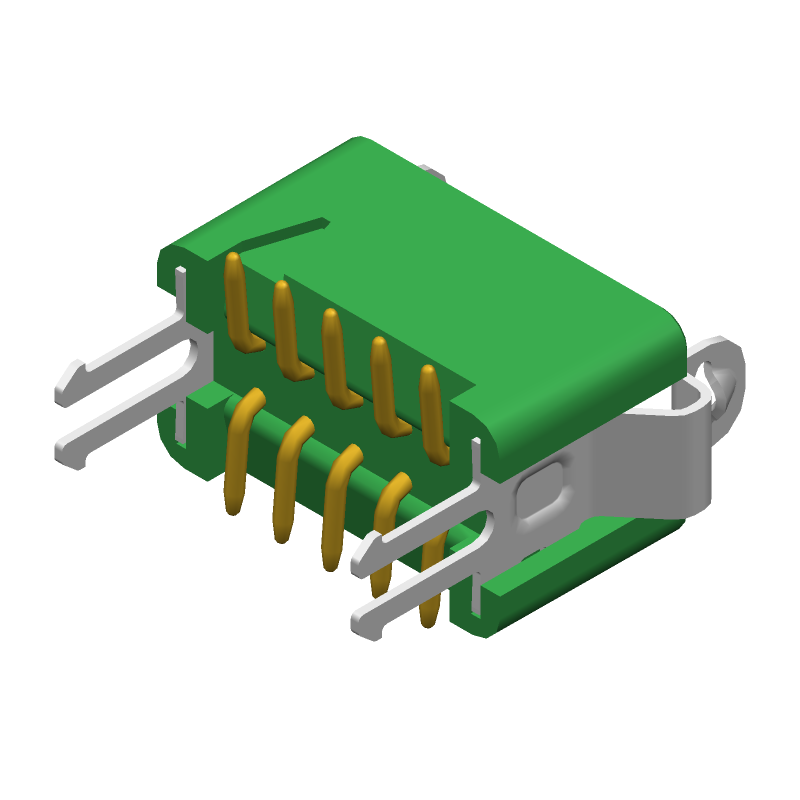

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for G125-MS11005L2R by Harwin
Results Overview of G125-MS11005L2R by Harwin
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
G125-MS11005L2R Information
G125-MS11005L2R by Harwin is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 7UL1G125FS | Toshiba Electronic Devices & Storage Corporation | One-Gate Logic(L-MOS), Buffer, SOT-953 (fSV), -40 to 125 degC | |
| 7UL1G125FU | Toshiba Electronic Devices & Storage Corporation | One-Gate Logic(L-MOS), Buffer, SOT-353 (USV), -40 to 125 degC | |
| 7UL1G125NX | Toshiba Electronic Devices & Storage Corporation | One-Gate Logic(L-MOS), Buffer, XSON6, -40 to 125 degC |
Price & Stock for G125-MS11005L2R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52AC4347
|
Newark | 5+5 Pos. Male Dil Vertical Smt Conn. Latches (T+R) Rohs Compliant: Yes |Harwin G125-MS11005L2R RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
G125-MS11005L2R-ND
|
DigiKey | CONN HDR VERT 10POS Min Qty: 1000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$4.8921 | Buy Now |
|
DISTI #
855-G125-MS11005L2R
|
Mouser Electronics | Power to the Board 1.25MM M VERT SMT 2X05 POS TR RoHS: Compliant | 0 |
|
$4.8900 | Order Now |
|
|
Bristol Electronics | Min Qty: 1 | 122 |
|
$3.7970 / $8.7629 | Buy Now |
|
|
Quest Components | BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.05 INCH PITCH, SURFACE MOUNT TERMINAL, LATCH | 97 |
|
$5.0856 / $11.7360 | Buy Now |
|
|
Quest Components | BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.05 INCH PITCH, SURFACE MOUNT TERMINAL, LATCH | 97 |
|
$7.4932 / $12.1512 | Buy Now |
|
DISTI #
G125-MS11005L2R
|
Avnet Abacus | Conn Shrouded Header 10 POS 125mm Solder ST SMD TR (Alt: G125-MS11005L2R) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 12 Weeks, 0 Days | Abacus - 750 |
|
Buy Now |
Part Details for G125-MS11005L2R
G125-MS11005L2R CAD Models
G125-MS11005L2R Part Data Attributes
|
|
G125-MS11005L2R
Harwin
Buy Now
Datasheet
|
Compare Parts:
G125-MS11005L2R
Harwin
Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | HARWIN PLC | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Harwin | |
| Board Mounting Option | RETENTION CLIP | |
| Body Breadth | 0.248 inch | |
| Body Depth | 0.199 inch | |
| Body Length | 0.4 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Finish Termination | Gold (Au) | |
| Contact Gender | MALE | |
| Contact Material | PHOSPHOR BRONZE | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 25 mΩ | |
| Contact Style | RND PIN-SKT | |
| DIN Conformance | NO | |
| Durability | 1000 Cycles | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 2.8 N | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | GLASS FILLED POLYETHYLENE | |
| JESD-609 Code | e4 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.05 inch | |
| Mating Contact Row Spacing | 0.05 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LATCH | |
| Mounting Option 2 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 3.7 mm | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 2.8 A | |
| Reference Standard | UL | |
| Terminal Pitch | 1.25 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 10 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | 0.2 N |
G125-MS11005L2R Frequently Asked Questions (FAQ)
-
The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
-
Yes, the G125-MS11005L2R connector is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat 2.
-
The operating temperature range of the G125-MS11005L2R connector is -40°C to +125°C, making it suitable for use in a wide range of applications.
-
Yes, the G125-MS11005L2R connector is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
-
The mating cycle life of the G125-MS11005L2R connector is 500 cycles, as specified in the Harwin datasheet.
