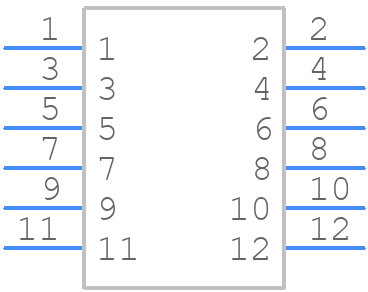

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FTSH-106-01-F-D-RA by Samtec Inc
Results Overview of FTSH-106-01-F-D-RA by Samtec Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
FTSH-106-01-F-D-RA Information
FTSH-106-01-F-D-RA by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LD09P24A4GV00LF | Amphenol Communications Solutions | D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness | |
| DB5W5P543M40LF | Amphenol Communications Solutions | D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 5W5 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Without Accessory, Back: Metal Brackets. | |
| DCV8W8P543M30LF | Amphenol Communications Solutions | D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 8W8 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Metal Brackets. |
Price & Stock for FTSH-106-01-F-D-RA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
FTSH-106-01-F-D-RA-ND
|
DigiKey | CONN HEADER R/A 12POS 1.27MM Min Qty: 1 Lead time: 6 Weeks Container: Tube |
63 In Stock |
|
$0.9000 / $1.9500 | Buy Now |
|
DISTI #
200-FTSH10601FDRA
|
Mouser Electronics | Headers & Wire Housings High Reliability Header Strips RoHS: Compliant | 120 |
|
$0.6240 / $1.9600 | Buy Now |
|
|
Onlinecomponents.com | This micro header features a variety of standard options and is an Extended Life Product™, passing 10 year Mixed Flowing Gas (MFG) and achieving high mating cycles (250 to 2,500). Options include a variety of post heights, a choice of surface mount, throu RoHS: Compliant | 0 |
|
$0.6670 / $1.7120 | Buy Now |
|
DISTI #
85084664
|
Verical | Conn Unshrouded Header HDR 12 POS 1.27mm Solder RA Side Entry Thru-Hole Tube RoHS: Compliant Min Qty: 6 Package Multiple: 1 | Americas - 264 |
|
$1.9600 | Buy Now |
|
DISTI #
5cd8e89ccd7c1c4c3838bdfb
|
Samtec | High Reliability Header Strips, .050" pitch RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 264 |
|
$0.4600 / $1.9600 | Buy Now |
|
|
Master Electronics | This micro header features a variety of standard options and is an Extended Life Product™, passing 10 year Mixed Flowing Gas (MFG) and achieving high mating cycles (250 to 2,500). Options include a variety of post heights, a choice of surface mount, throu RoHS: Compliant | 0 |
|
$0.6670 / $1.7120 | Buy Now |
Part Details for FTSH-106-01-F-D-RA
FTSH-106-01-F-D-RA CAD Models
FTSH-106-01-F-D-RA Part Data Attributes
|
|
FTSH-106-01-F-D-RA
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
FTSH-106-01-F-D-RA
Samtec Inc
Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 1 Week | |
| Samacsys Manufacturer | SAMTEC | |
| Additional Feature | ELP | |
| Body Breadth | 0.135 inch | |
| Body Depth | 0.207 inch | |
| Body Length | 0.297 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | GOLD FLASH OVER NICKEL (50) | |
| Contact Finish Termination | Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Material | PHOSPHOR BRONZE | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Color | BLACK | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.05 inch | |
| Mating Contact Row Spacing | 0.05 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 1.27 mm | |
| Plating Thickness | 3u inch | |
| Rated Current (Signal) | 4.2 A | |
| Terminal Length | 0.09 inch | |
| Terminal Pitch | 1.27 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 12 |
Alternate Parts for FTSH-106-01-F-D-RA
This table gives cross-reference parts and alternative options found for FTSH-106-01-F-D-RA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FTSH-106-01-F-D-RA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| FTSH-106-01-FM-D-RA | Samtec Inc | $1.9008 | Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, | FTSH-106-01-F-D-RA vs FTSH-106-01-FM-D-RA |
| FTSH-106-01-L-D-RA | Samtec Inc | $2.0365 | Board Connector, 12 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT | FTSH-106-01-F-D-RA vs FTSH-106-01-L-D-RA |
FTSH-106-01-F-D-RA Frequently Asked Questions (FAQ)
-
The recommended mating sequence for FTSH-106-01-F-D-RA is to mate the headers first, followed by the sockets. This ensures proper alignment and prevents damage to the connectors.
-
Yes, the FTSH-106-01-F-D-RA is designed to withstand high-vibration environments. Samtec's FTSH series connectors have a ruggedized design and are suitable for use in applications with high vibration, shock, and temperature fluctuations.
-
The maximum operating temperature for FTSH-106-01-F-D-RA is 125°C (257°F). However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
-
The FTSH-106-01-F-D-RA has a specific mating height of 1mm. While it's possible to use it with a different mating height, it's not recommended as it may affect the connector's performance and reliability. Samtec offers other FTSH series connectors with different mating heights, so it's best to choose the one that matches your specific requirements.
-
The FTSH-106-01-F-D-RA has a ruggedized design and is suitable for use in harsh environments. However, it's essential to follow proper cleaning and handling procedures to ensure the connector's reliability and performance. Samtec also offers specialized connectors with enhanced environmental sealing for extreme environments.
