FTS-104-02-F-DV by: Samtec Inc

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

Part Details for FTS-104-02-F-DV by Samtec Inc

Results Overview of FTS-104-02-F-DV by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

FTS-104-02-F-DV Information

FTS-104-02-F-DV by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for FTS-104-02-F-DV

Part # Distributor Description Stock Price Buy
DISTI # 5cd8e843cd7c1c4c38385665
Samtec Micro Low Profile Header Strips RoHS: Compliant Min Qty: 1 Lead time: 10 Weeks, 0 Days Container: Tape & Reel 0
  • 1 $1.8300
  • 50 $1.4900
  • 100 $1.2700
  • 500 $1.1300
  • 1,000 $0.8300
  • 2,000 $0.7300
  • 5,000 $0.5400
  • 10,000 $0.3400
$0.3400 / $1.8300 Buy Now

Part Details for FTS-104-02-F-DV

FTS-104-02-F-DV CAD Models

  • Part Symbol

    Part Symbol

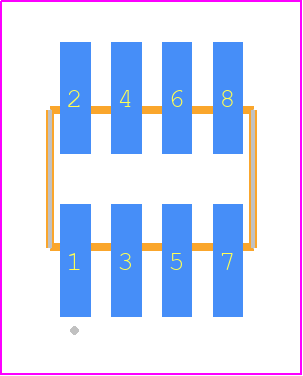

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

FTS-104-02-F-DV Part Data Attributes

Parametric Data
FTS-104-02-F-DV Samtec Inc
Buy Now Datasheet
Compare Parts:
FTS-104-02-F-DV Samtec Inc Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer SAMTEC INC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer SAMTEC
Additional Feature LOW PROFILE
Body Breadth 0.23 inch
Body Depth 0.05 inch
Body Length 0.2 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
MIL Conformance NO
Mating Contact Pitch 0.05 inch
Mating Contact Row Spacing 0.05 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Rated Current (Signal) 3.3 A
Reference Standard UL
Terminal Pitch 1.27 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 8

Alternate Parts for FTS-104-02-F-DV

This table gives cross-reference parts and alternative options found for FTS-104-02-F-DV. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FTS-104-02-F-DV, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
FTS-104-02-FM-DV-TR Samtec Inc $1.1147 Board Connector FTS-104-02-F-DV vs FTS-104-02-FM-DV-TR
FTS-104-02-F-DV-TR Samtec Inc $1.1191 Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT FTS-104-02-F-DV vs FTS-104-02-F-DV-TR
FTS-104-02-G-DV-TR Samtec Inc Check for Price Board Connector FTS-104-02-F-DV vs FTS-104-02-G-DV-TR
Part Number Manufacturer Composite Price Description Compare
FTS-104-01-L-DV-TR Samtec Inc $1.3518 Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT FTS-104-02-F-DV vs FTS-104-01-L-DV-TR
FTS-104-04-F-D Samtec Inc $1.3607 Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, FTS-104-02-F-DV vs FTS-104-04-F-D
FTS-104-02-S-D Samtec Inc $1.9806 Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, FTS-104-02-F-DV vs FTS-104-02-S-D
FTS-104-03-H-DV Samtec Inc Check for Price Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, FTS-104-02-F-DV vs FTS-104-03-H-DV
FTS-104-01-H-D Samtec Inc Check for Price Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, FTS-104-02-F-DV vs FTS-104-01-H-D
FTS-104-03-L-DV-P-FR Samtec Inc Check for Price Board Connector, FTS-104-02-F-DV vs FTS-104-03-L-DV-P-FR
FTS-104-01-G-DV-P-TR Samtec Inc Check for Price Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, FTS-104-02-F-DV vs FTS-104-01-G-DV-P-TR
FTS-104-02-SM-D Samtec Inc Check for Price Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, FTS-104-02-F-DV vs FTS-104-02-SM-D
FTS-104-04-LM-D Samtec Inc Check for Price Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, FTS-104-02-F-DV vs FTS-104-04-LM-D
FTS-104-03-SM-D Samtec Inc Check for Price Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, FTS-104-02-F-DV vs FTS-104-03-SM-D
