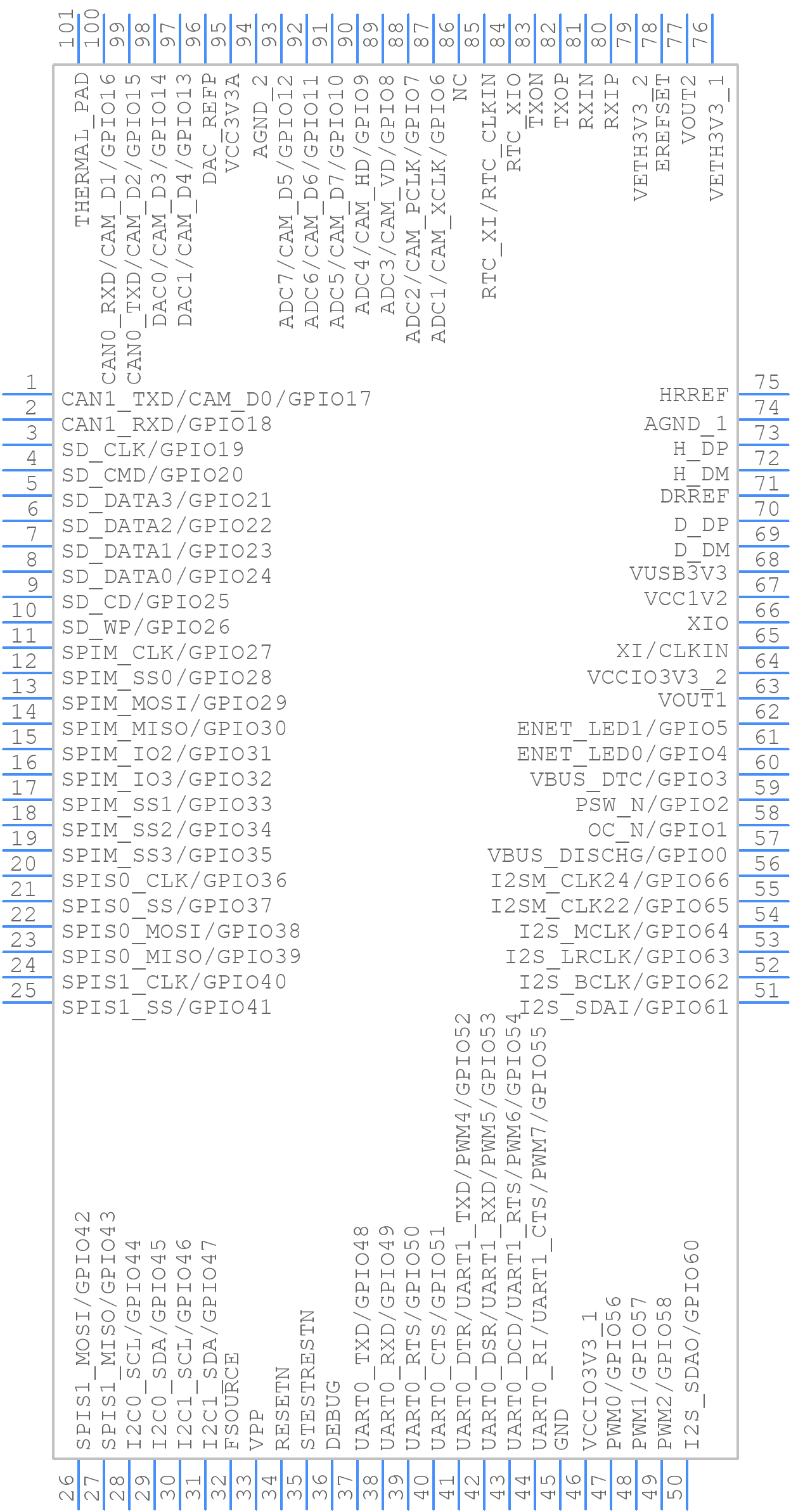

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FT900Q-T by FTDI Chip
Results Overview of FT900Q-T by FTDI Chip
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
FT900Q-T Information
FT900Q-T by FTDI Chip is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Part Details for FT900Q-T
FT900Q-T CAD Models
FT900Q-T Part Data Attributes
|
|
FT900Q-T
FTDI Chip
Buy Now
Datasheet
|
Compare Parts:
FT900Q-T
FTDI Chip
RISC Microcontroller, 32-Bit, FLASH, 100MHz, CMOS, PQCC100, QFN-100
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | FUTURE TECHNOLOGY DEVICES INTERNATIONAL LTD | |
| Package Description | HVQCCN, | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | FTDI Chip | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| DAC Channels | YES | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQCC-N100 | |
| Length | 12 mm | |
| Number of I/O Lines | 66 | |
| Number of Terminals | 100 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| RAM (bytes) | 65536 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 0.9 mm | |
| Speed | 100 MHz | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 12 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
FT900Q-T Frequently Asked Questions (FAQ)
-
The FT900Q-T can operate in the industrial temperature range of -40°C to 85°C.
-
Yes, the FT900Q-T is compatible with USB 3.0 systems, but it only operates at USB 2.0 speeds.
-
The FT900Q-T can be configured for I2C or SPI interfaces through the use of external resistors and capacitors, as well as configuration bits in the device's EEPROM.
-
The FT900Q-T has a maximum data transfer rate of 12 Mbps in USB 2.0 mode.
-
Yes, the FT900Q-T is compatible with both 3.3V and 5V systems, and can be powered from a single 3.3V or 5V supply.
