Diodes / Rectifier Diodes / FR107G-T
Datasheets
FR107G-T by:

Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2

Part Details for FR107G-T by Rectron Semiconductor

Results Overview of FR107G-T by Rectron Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Energy and Power Systems

FR107G-T Information

FR107G-T by Rectron Semiconductor is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for FR107G-T

Part # Distributor Description Stock Price Buy
DISTI # 583-FR107G-T
Mouser Electronics Rectifiers 1A 1000V 150ns GP RoHS: Compliant 0
  • 5,000 $0.0390
  • 15,000 $0.0390
  • 25,000 $0.0290
$0.0290 / $0.0390 Order Now
Onlinecomponents.com   RoHS: Compliant 0
  • 15,000 $0.0333
  • 30,000 $0.0243
  • 60,000 $0.0233
  • 105,000 $0.0229
  • 150,000 $0.0224
  • 255,000 $0.0220
  • 510,000 $0.0217
$0.0217 / $0.0333 Buy Now

Part Details for FR107G-T

FR107G-T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

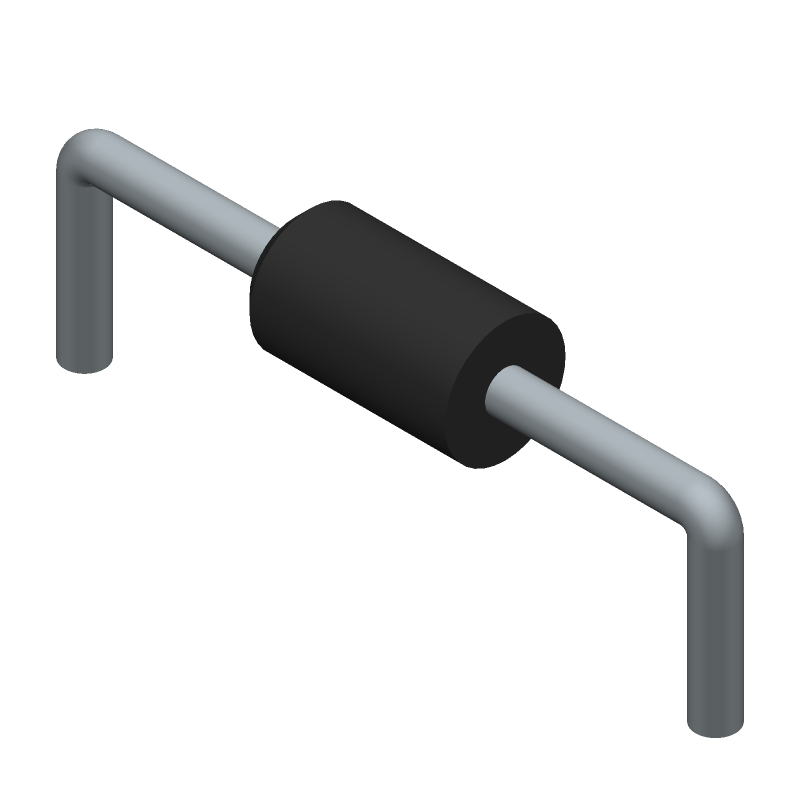

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

FR107G-T Part Data Attributes

Parametric Data
FR107G-T Rectron Semiconductor
Buy Now Datasheet
Compare Parts:
FR107G-T Rectron Semiconductor Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer RECTRON LTD
Part Package Code DO-41
Pin Count 2
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.10.00.80
Samacsys Manufacturer Rectron
Additional Feature HIGH RELIABILITY
Application FAST RECOVERY
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (VF) 1.3 V
JEDEC-95 Code DO-41
JESD-30 Code O-PALF-W2
JESD-609 Code e3
Non-rep Pk Forward Current-Max 30 A
Number of Elements 1
Number of Phases 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Output Current-Max 1 A
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style LONG FORM
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 1000 V
Reverse Current-Max 5 µA
Reverse Recovery Time-Max 0.5 µs
Reverse Test Voltage 1000 V
Surface Mount NO
Terminal Finish MATTE TIN
Terminal Form WIRE
Terminal Position AXIAL

Alternate Parts for FR107G-T

This table gives cross-reference parts and alternative options found for FR107G-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FR107G-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
HER106G International Semiconductor Inc Check for Price Rectifier Diode, 1 Element, 1A, Silicon, DO-41 FR107G-T vs HER106G
FR107M02 Rectron Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41 FR107G-T vs FR107M02
FR107-LF Won-Top Electronics Co Ltd Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2 FR107G-T vs FR107-LF
FR107GP-BP Micro Commercial Components Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2 FR107G-T vs FR107GP-BP
BA159R1 Taiwan Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, FR107G-T vs BA159R1
FR107G-B Rectron Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2 FR107G-T vs FR107G-B
RGP10M-M3/54 Vishay Semiconductors Check for Price DIODE 1 A, 1000 V, SILICON, SIGNAL DIODE, DO-204AL, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, DO-41, 2 PIN, Signal Diode FR107G-T vs RGP10M-M3/54
FR107-T3 Sangdest Microelectronics (Nanjing) Co Ltd Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2 FR107G-T vs FR107-T3
BA159 SEMIKRON Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN FR107G-T vs BA159
1N4007H09 Rectron Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, DO-41, 2 PIN FR107G-T vs 1N4007H09
Part Number Manufacturer Composite Price Description Compare
HER108-T3 Won-Top Electronics Co Ltd Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2 FR107G-T vs HER108-T3
1N4007HR Digitron Semiconductors Check for Price Rectifier Diode FR107G-T vs 1N4007HR
1N4948 Surge Components Inc Check for Price Rectifier Diode, 1 Element, 1A, Silicon, DO-41, FR107G-T vs 1N4948
PR1007R Lite-On Semiconductor Corporation Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2 FR107G-T vs PR1007R
HER108 International Semiconductor Inc Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, PLASTIC PACKAGE-2 FR107G-T vs HER108
FR107G-E Rectron Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, FR107G-T vs FR107G-E
1N4935GP Surge Components Inc Check for Price Rectifier Diode, 1 Element, 1A, Silicon, DO-41, DO-41, 2 PIN FR107G-T vs 1N4935GP
PR1007G Vishay Intertechnologies Check for Price Rectifier Diode, 1 Phase, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, FR107G-T vs PR1007G
FR107R0 Taiwan Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, DO-41, 2 PIN FR107G-T vs FR107R0
UF1010G_B0_10001 PanJit Semiconductor Check for Price Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, FR107G-T vs UF1010G_B0_10001

FR107G-T Related Parts

FR107G-T Frequently Asked Questions (FAQ)

  • The recommended storage temperature for FR107G-T is -40°C to 125°C.

  • Yes, FR107G-T is suitable for high-reliability applications due to its low leakage current and high surge current capability.

  • Yes, FR107G-T can be used in parallel to increase current handling, but it's essential to ensure that the devices are properly matched and thermally coupled to avoid uneven current sharing.

  • The typical recovery time for FR107G-T is around 10-20 ns, which is relatively fast compared to other rectifier diodes.

  • Yes, FR107G-T is compatible with lead-free soldering processes, making it suitable for modern electronic assembly requirements.
