FQA36P15 Information
FQA36P15 by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FQA36P15
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
61M6400
|
Newark | Mosfet Transistor, P Channel, -36 A, -150 V, 90 Mohm, -10 V, -4 V Rohs Compliant: Yes |Onsemi FQA36P15 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
45J3232
|
Newark | P Channel Mosfet, -150V, 36A, To-3P, Channel Type:P Channel, Drain Source Voltage Vds:150V, Continuous Drain Current Id:36A, Transistor Mounting:Through Hole, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:4V, Msl:- Rohs Compliant: Yes |Onsemi FQA36P15 RoHS: Compliant Min Qty: 120 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$1.9700 / $2.4300 | Buy Now |
|
DISTI #
FQA36P15-ND
|
DigiKey | MOSFET P-CH 150V 36A TO3PN Min Qty: 450 Lead time: 10 Weeks Container: Tube | Temporarily Out of Stock |
|
$2.3936 | Buy Now |
|
DISTI #
FQA36P15
|
Avnet Americas | Trans MOSFET P-CH 150V 36A 3-Pin(3+Tab) TO-3P(N) T/R - Rail/Tube (Alt: FQA36P15) RoHS: Compliant Min Qty: 450 Package Multiple: 450 Lead time: 111 Weeks, 0 Days Container: Tube | 30 |
|
RFQ | |
|
DISTI #
512-FQA36P15
|
Mouser Electronics | MOSFETs 150V P-Channel QFET RoHS: Compliant | 0 |
|
$2.3600 / $4.9300 | Order Now |
|
DISTI #
FQA36P15
|
TME | Transistor: P-MOSFET, unipolar, -150V, -25.5A, 294W, TO3PN Min Qty: 1 | 0 |
|
$2.6600 / $3.9900 | RFQ |
|
DISTI #
FQA36P15
|
Avnet Silica | Trans MOSFET PCH 150V 36A 3Pin3Tab TO3PN TR (Alt: FQA36P15) RoHS: Compliant Min Qty: 450 Package Multiple: 30 Lead time: 8 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
FQA36P15
|
EBV Elektronik | Trans MOSFET PCH 150V 36A 3Pin3Tab TO3PN TR (Alt: FQA36P15) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 8 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 112500 |
|
RFQ |
Part Details for FQA36P15

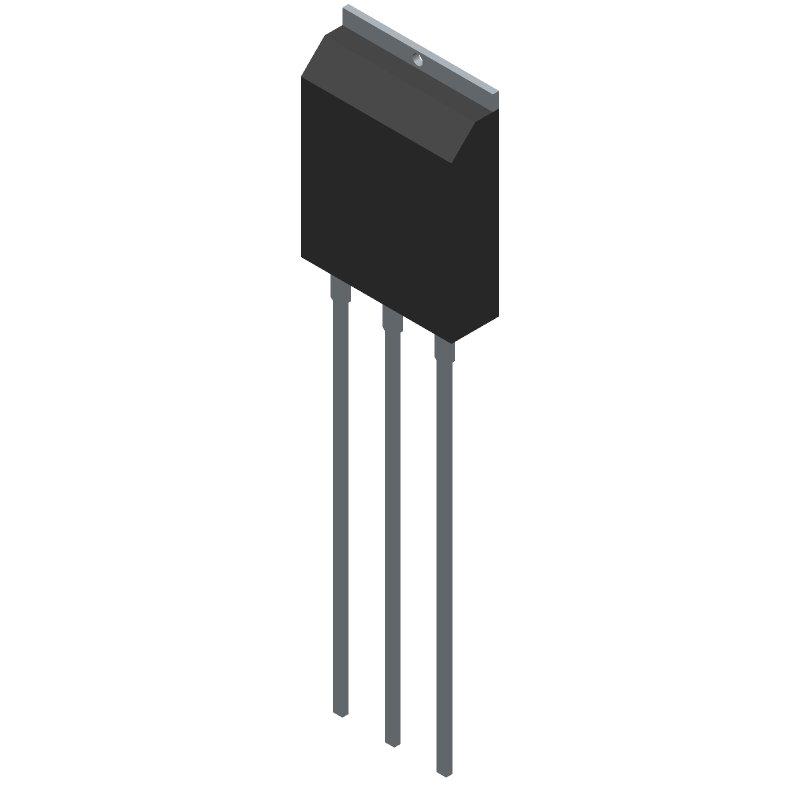

FQA36P15 CAD Models
FQA36P15 Part Data Attributes
|
|
FQA36P15
onsemi
Buy Now
Datasheet
|
Compare Parts:
FQA36P15
onsemi
Power MOSFET, P-Channel, QFET®, -150 V, -36 A, 90 mΩ, TO-3P, TO-3P-3L, 450-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-3P-3L | |
| Manufacturer Package Code | 340BZ | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | FAST SWITCHING | |
| Avalanche Energy Rating (Eas) | 1400 mJ | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 150 V | |
| Drain Current-Max (ID) | 36 A | |
| Drain-source On Resistance-Max | 0.09 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 294 W | |
| Pulsed Drain Current-Max (IDM) | 144 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
FQA36P15 Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. Ensure a minimum of 1 oz copper thickness and a thermal via array under the device.
-
Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor junction temperature and adjust the system design accordingly.
-
Monitor the device's junction temperature, drain-source voltage, and current. Implement over-temperature, over-voltage, and over-current protection mechanisms to prevent damage.
-
Yes, but ensure the PCB layout is optimized for high-frequency operation, and consider using a gate driver with a low output impedance to minimize ringing and oscillations.
-
Choose a gate resistor value that balances switching speed and oscillation prevention. A value between 10 ohms and 100 ohms is typical, but consult the gate driver datasheet and application notes for specific guidance.
