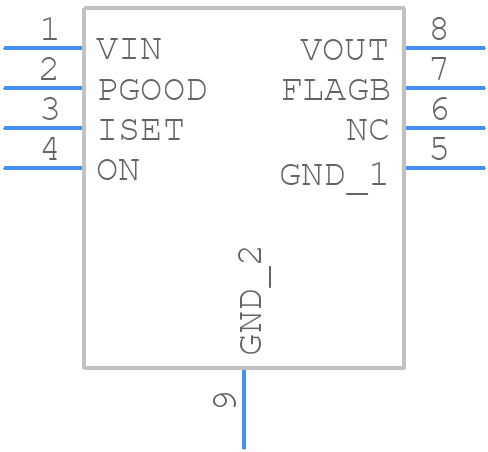

Part Symbol
-
Footprint
-

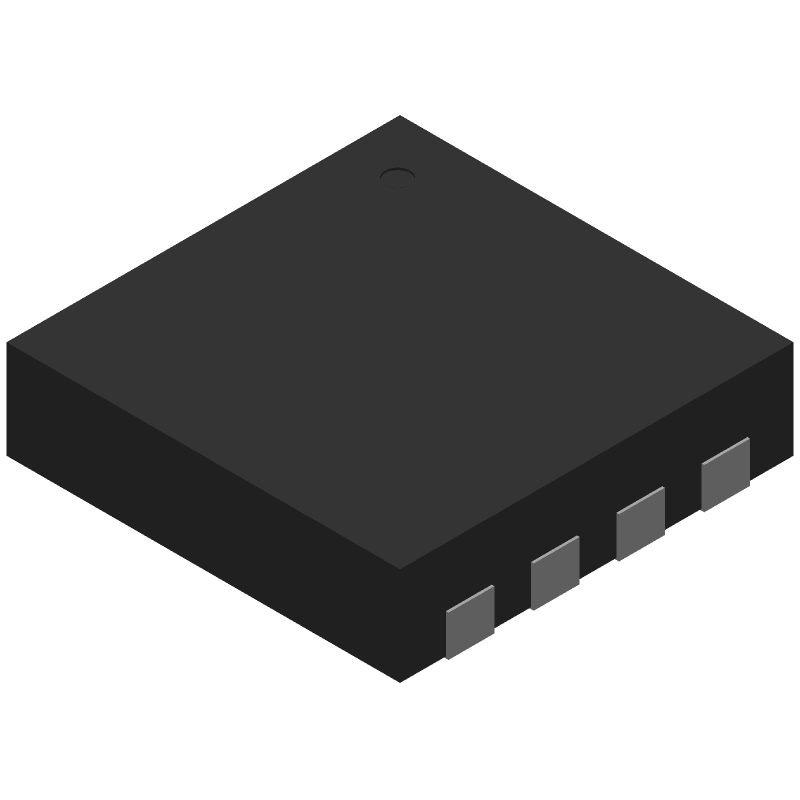

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FPF2702MPX by onsemi
Results Overview of FPF2702MPX by onsemi
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
FPF2702MPX Information
FPF2702MPX by onsemi is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for FPF2702MPX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2083986
|
element14 Asia-Pacific | , , 0.4-2.0A, 8MLP RoHS: Compliant Min Qty: 1 Container: Cut Tape | 287 |
|
$3.9000 / $4.0600 | Buy Now |
|
DISTI #
2083986RL
|
element14 Asia-Pacific | , , 0.4-2.0A, 8MLP RoHS: Compliant Min Qty: 100 Container: Reel | 287 |
|
$3.9000 | Buy Now |
|
DISTI #
SMC-FPF2702MPX
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 27000 |
|
RFQ | |
|
DISTI #
FPF2702MPX
|
Avnet Silica | Current Limit SW 1IN 1OUT 28V to 36V 2A 8Pin MLP EP TR (Alt: FPF2702MPX) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
FPF2702MPX
|
EBV Elektronik | Current Limit SW 1IN 1OUT 28V to 36V 2A 8Pin MLP EP TR (Alt: FPF2702MPX) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 39149 |
|
RFQ | |
|
|
LCSC | 2.8V36V 88m Active Low 2A 1 Load Switch MLP-8(3x3) Power Distribution Switches ROHS | 2977 |
|
$1.1225 / $2.2283 | Buy Now |
|
|
Win Source Electronics | Adjustable Over-Current Protection Load Switches | IC LOAD SWITCH 0.4-2A OCP 8MLP | 30000 |
|
$1.5105 / $1.9511 | Buy Now |
Part Details for FPF2702MPX
FPF2702MPX CAD Models
FPF2702MPX Part Data Attributes
|
|
FPF2702MPX
onsemi
Buy Now
Datasheet
|
Compare Parts:
FPF2702MPX
onsemi
AccuPower™ 0.4~2 A Adjustable Over-Current Protection Load Switches, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Package Description | MLP-8 | |
| Manufacturer Package Code | 511DD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Built-in Protections | OVER CURRENT; THERMAL; UNDER VOLTAGE | |
| Driver Number of Bits | 1 | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current Flow Direction | SOURCE | |
| Output Peak Current Limit-Nom | 0.4 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC8,.12,25 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max | 36 V | |
| Supply Voltage-Min | 2.8 V | |
| Supply Voltage-Nom | 12 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD SILVER | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm |
FPF2702MPX Frequently Asked Questions (FAQ)
-
A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to connect to an internal copper plane or a heat sink.
-
The FPF2702MPX requires a bias voltage of 2.5V to 5.5V on the VCC pin. A 0.1uF decoupling capacitor should be placed close to the VCC pin to filter out noise. Additionally, a 1uF capacitor should be placed between the VIN pin and GND to filter out input noise.
-
The maximum input voltage that can be applied to the VIN pin is 5.5V. Exceeding this voltage may damage the device.
-
The output voltage of the FPF2702MPX is adjustable and can be calculated using the following formula: VOUT = (R1/R2) * (VIN - VREF), where R1 and R2 are the resistors connected to the FB pin, VIN is the input voltage, and VREF is the internal reference voltage (1.25V).
-
The maximum output current that the FPF2702MPX can supply is 2A. Exceeding this current may cause the device to overheat or malfunction.
