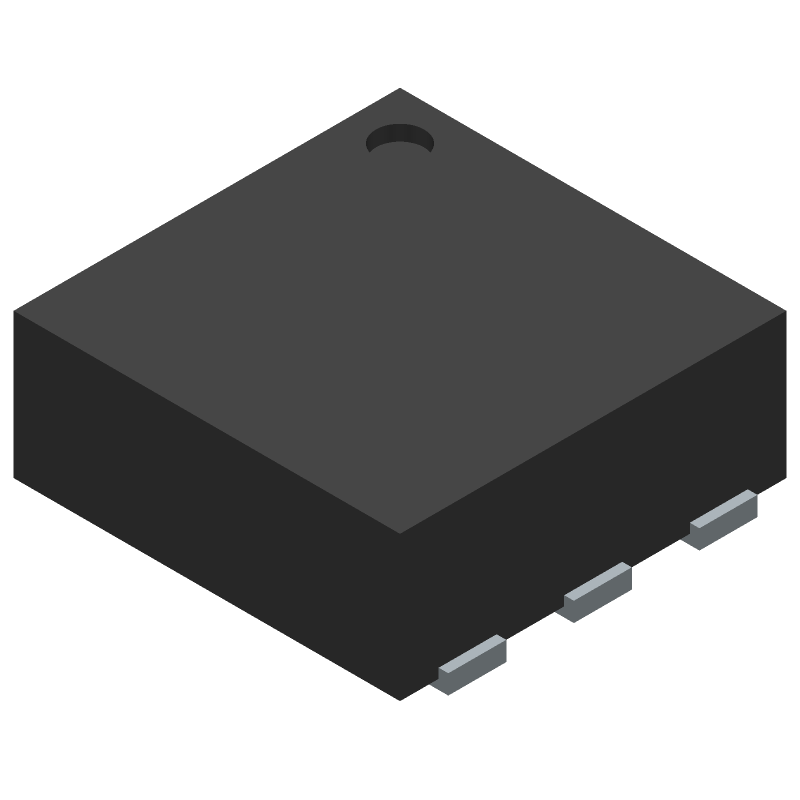

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FPF2165 by onsemi
Results Overview of FPF2165 by onsemi
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
FPF2165 Information
FPF2165 by onsemi is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for FPF2165
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52M3294
|
Newark | High-Side Load Switch, 5.5V, Mlp-6, Full Reel, Power Load Switch Type:High Side, No. Of Channels:1Channels, Input Voltage:5.5V, Current Limit:800Ma, On State Resistance:0.12Ohm, Ic Case/Package:Mlp, No. Of Pins:6Pins, Msl:- Rohs Compliant: Yes |Onsemi FPF2165 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.5260 / $0.6830 | Buy Now |
|
DISTI #
FPF2165CT-ND
|
DigiKey | IC PWR SWITCH P-CH 1:1 6MICROFET Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
121 In Stock |
|
$0.5169 / $1.2000 | Buy Now |
|
DISTI #
FPF2165
|
Avnet Americas | Power Switch 0.15A 6-Pin MLP EP T/R - Tape and Reel (Alt: FPF2165) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Reel | 3859 Factory Stock |
|
$0.4865 / $0.5301 | Buy Now |
|
DISTI #
512-FPF2165
|
Mouser Electronics | Power Switch ICs - Power Distribution Full Function Load Switch RoHS: Compliant | 0 |
|
$0.5160 / $2.0600 | Order Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.5130 / $1.0750 | Buy Now |
|
|
NexGen Digital | 1 |
|
RFQ | ||
|
DISTI #
FPF2165
|
Avnet Asia | Power Switch 0.15A 6-Pin MLP EP T/R (Alt: FPF2165) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days | 0 |
|
$0.4840 / $0.5413 | Buy Now |
|
DISTI #
FPF2165
|
Avnet Silica | Power Switch 015A 6Pin MLP EP TR (Alt: FPF2165) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
FPF2165
|
EBV Elektronik | Power Switch 015A 6Pin MLP EP TR (Alt: FPF2165) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for FPF2165
FPF2165 CAD Models
FPF2165 Part Data Attributes
|
|
FPF2165
onsemi
Buy Now
Datasheet
|
Compare Parts:
FPF2165
onsemi
Full Function Load Switch with Adjustable Current Limit, WDFN-6, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | WDFN-6 | |
| Package Description | 2 X 2 MM, ROHS COMPLIANT, MLP-6 | |
| Manufacturer Package Code | 511CY | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| JESD-30 Code | S-XDSO-N6 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.8 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
Alternate Parts for FPF2165
This table gives cross-reference parts and alternative options found for FPF2165. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FPF2165, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TPS2590RSAT | Texas Instruments | $1.3714 | 3-V to 20-V, 30mΩ, 2-5A eFuse 16-QFN -40 to 125 | FPF2165 vs TPS2590RSAT |
| FPF2164 | Fairchild Semiconductor Corporation | Check for Price | Power Supply Support Circuit, Adjustable, 1 Channel, 2 X 2 MM, ROHS COMPLIANT, MLP-6 | FPF2165 vs FPF2164 |
| FPF2163 | Fairchild Semiconductor Corporation | Check for Price | Power Supply Support Circuit, Adjustable, 1 Channel, 2 X 2 MM, ROHS COMPLIANT, MLP-6 | FPF2165 vs FPF2163 |
| FPF2163 | onsemi | Check for Price | Full Function Load Switch with Adjustable Current Limit, 3000-REEL | FPF2165 vs FPF2163 |
| FPF2164 | onsemi | Check for Price | Full Function Load Switch with Adjustable Current Limit, 3000-REEL | FPF2165 vs FPF2164 |
| FPF2165R | onsemi | Check for Price | Full Function Load Switch with Adjustable Current Limit, 3000-REEL | FPF2165 vs FPF2165R |
| TPS2590RSAR | Texas Instruments | Check for Price | 3-V to 20-V, 30mΩ, 2-5A eFuse 16-QFN -40 to 125 | FPF2165 vs TPS2590RSAR |
| TPS2590RSA | Texas Instruments | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PQCC16, 4 X 4 MM, PLASTIC, QFN-16 | FPF2165 vs TPS2590RSA |
FPF2165 Frequently Asked Questions (FAQ)
-
A good PCB layout for the FPF2165 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it close to the device can help reduce EMI.
-
The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet, and then adjust based on the specific application requirements. It's also important to consider the inductor's saturation current and DC resistance.
-
The FPF2165 is rated for an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's essential to consider the specific application requirements and potential thermal management needs.
-
Yes, the FPF2165 is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive-grade components. However, it's essential to follow the recommended design and layout guidelines to ensure the device operates within its specified parameters.
-
To troubleshoot issues with the FPF2165, start by checking the PCB layout and ensuring that it follows the recommended guidelines. Verify that the input and output capacitors are properly selected and placed. Also, check the inductor value and saturation current. If the issue persists, consult the datasheet and application notes for guidance on debugging and troubleshooting.
