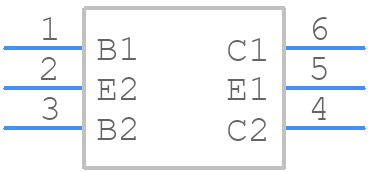

Part Symbol
-
Footprint
-

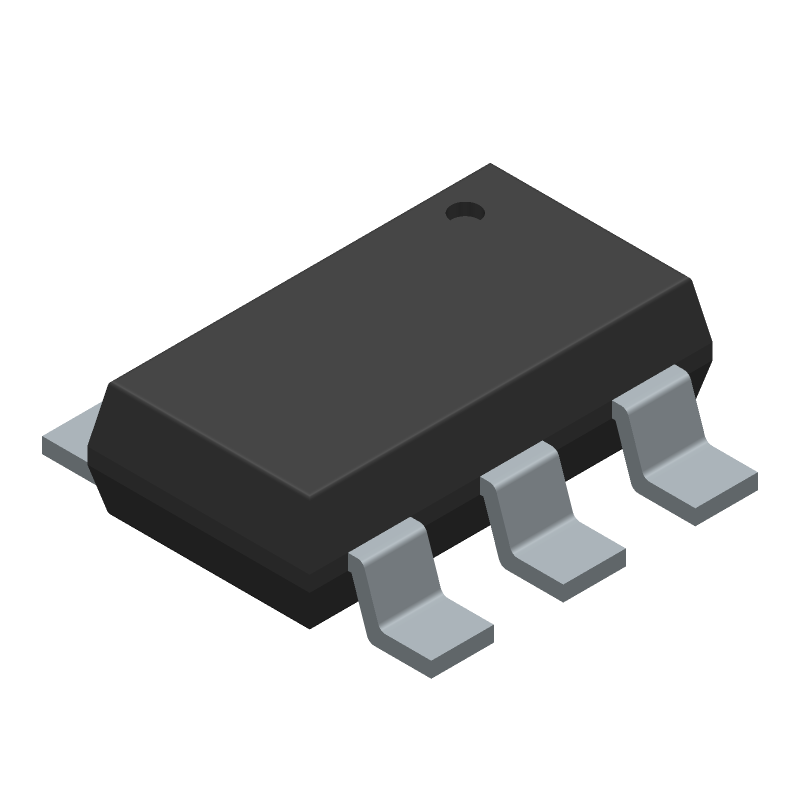

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FMB2222A by onsemi
Results Overview of FMB2222A by onsemi
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Security and Surveillance
Internet of Things (IoT)
Audio and Video Systems
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Entertainment and Gaming
Automotive
FMB2222A Information
FMB2222A by onsemi is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FMB2222A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
98AC1376
|
Newark | 40V Bip Npn Dual Ssot-6 Rohs Compliant: Yes |Onsemi FMB2222A RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1060 / $0.1620 | Buy Now |
|
DISTI #
29X6707
|
Newark | Transistor, Npn, 40V, 0.5A, Supersot-6, Transistor Polarity:Dual Npn, Collector Emitter Voltage Max Npn:40V, Collector Emitter Voltage Max Pnp:-, Continuous Collector Current Npn:500Ma, Continuous Collector Current Pnp:- Rohs Compliant: Yes |Onsemi FMB2222A RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1130 / $0.1700 | Buy Now |
|
DISTI #
31Y1473
|
Newark | Bipolar (Bjt) Array Transistor, Npn, 40 V, 700 Mw, 500 Ma, 35, Supersot Rohs Compliant: Yes |Onsemi FMB2222A RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.1830 / $0.4700 | Buy Now |
|
DISTI #
FMB2222ACT-ND
|
DigiKey | TRANS 2NPN 40V 500MA SUPERSOT-6 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
30211 In Stock |
|
$0.1020 / $0.6200 | Buy Now |
|
DISTI #
FMB2222A
|
Avnet Americas | Bipolar Transistor Array, Dual NPN, 40 V, 500 mA, 700 mW - Tape and Reel (Alt: FMB2222A) RoHS: Compliant Min Qty: 9000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.1020 / $0.1088 | Buy Now |
|
DISTI #
512-FMB2222A
|
Mouser Electronics | Bipolar Transistors - BJT NPN Multi-Chip Trans General Purpose RoHS: Compliant | 23858 |
|
$0.1050 / $0.4900 | Buy Now |
|
DISTI #
V72:2272_06301101
|
Arrow Electronics | Trans GP BJT NPN 40V 0.5A 700mW 6-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2128 Container: Cut Strips | Americas - 7613 |
|
$0.1046 / $0.4885 | Buy Now |
|
|
Onlinecomponents.com | Bipolar (BJT) Transistor Array 2 NPN (Dual) 40V 500mA 300MHz 700mW Surface Mount SuperSOT™-6 RoHS: Compliant |
12000 In Stock |
|
$0.0977 / $0.1118 | Buy Now |
|
DISTI #
85987085
|
Verical | Trans GP BJT NPN 40V 0.5A 700mW 6-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 2616 Package Multiple: 1 Date Code: 2201 | Americas - 16553 |
|
$0.1071 / $0.1434 | Buy Now |
|
DISTI #
83594739
|
Verical | Trans GP BJT NPN 40V 0.5A 700mW 6-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2405 | Americas - 12000 |
|
$0.1339 / $0.1453 | Buy Now |
Part Details for FMB2222A
FMB2222A CAD Models
FMB2222A Part Data Attributes
|
|
FMB2222A
onsemi
Buy Now
Datasheet
|
Compare Parts:
FMB2222A
onsemi
NPN Multi-Chip General Purpose Amplifier, TSOT-23-6, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TSOT-23-6 | |
| Package Description | SUPERSOT-6 | |
| Manufacturer Package Code | 419AG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Collector Current-Max (IC) | 0.5 A | |
| Collector-Emitter Voltage-Max | 40 V | |
| Configuration | SEPARATE, 2 ELEMENTS | |
| DC Current Gain-Min (hFE) | 75 | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.7 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 300 MHz | |
| Turn-off Time-Max (toff) | 220 ns | |
| Turn-on Time-Max (ton) | 28 ns |
Alternate Parts for FMB2222A
This table gives cross-reference parts and alternative options found for FMB2222A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FMB2222A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| FMB100 | onsemi | Check for Price | NPN Multi-Chip General Purpose Amplifier, TSOT-23-6, 3000-REEL | FMB2222A vs FMB100 |
| FMB2227AS62Z | Fairchild Semiconductor Corporation | Check for Price | Small Signal Bipolar Transistor, 0.5A I(C), 30V V(BR)CEO, 2-Element, NPN and PNP, Silicon, SUPERSOT-6 | FMB2222A vs FMB2227AS62Z |
