Capacitors / Film Capacitors / FKP3J001502B00JSSD
Datasheets
FKP3J001502B00JSSD by: Wima

Film Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, -200ppm/Cel TC, 0.00015uF, Through Hole Mount, 3912, RADIAL LEADED, ROHS COMPLIANT

Part Details for FKP3J001502B00JSSD by Wima

Results Overview of FKP3J001502B00JSSD by Wima

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Medical Imaging Robotics and Drones

FKP3J001502B00JSSD Information

FKP3J001502B00JSSD by Wima is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for FKP3J001502B00JSSD

Part # Distributor Description Stock Price Buy
DISTI # 4499-FKP3J001502B00JSSD-ND
DigiKey FKP 3 150 pF 630 VDC 3x8.5x10 PC Min Qty: 10 Container: Bulk MARKETPLACE PRODUCT 8831
In Stock
  • 10 $0.3380
  • 100 $0.3152
  • 200 $0.2961
  • 500 $0.2791
  • 1,000 $0.2699
$0.2699 / $0.3380 Buy Now
DISTI # 1928-FKP3J001502B00JSSD-ND
DigiKey FKP 3 150 PF 630 VDC 3X8.5X10 PC Min Qty: 10000 Lead time: 16 Weeks Container: Bulk Temporarily Out of Stock
  • 10,000 $0.1883
$0.1883 Buy Now
DISTI # 505-FKP3150/630/5
Mouser Electronics Film Capacitors 150pF 630V 5% PCM7.5 RoHS: Compliant 8048
  • 1 $0.6600
  • 10 $0.4460
  • 100 $0.3040
  • 500 $0.2480
  • 1,000 $0.2290
  • 5,000 $0.2080
  • 10,000 $0.1800
  • 25,000 $0.1700
$0.1700 / $0.6600 Buy Now
DISTI # 62443716
Verical Cap Film 150pF 630V PP 5% (10 X 3 X 8.5mm) Radial Plastic Rectangular Can 7.5mm 105°C Bulk RoHS: Compliant Min Qty: 313 Package Multiple: 1 Date Code: 2201 Americas - 8831
  • 313 $0.4013
  • 500 $0.3868
  • 1,000 $0.3742
  • 2,500 $0.3631
  • 5,000 $0.3533
$0.3533 / $0.4013 Buy Now

Part Details for FKP3J001502B00JSSD

FKP3J001502B00JSSD CAD Models

  • Part Symbol

    Part Symbol

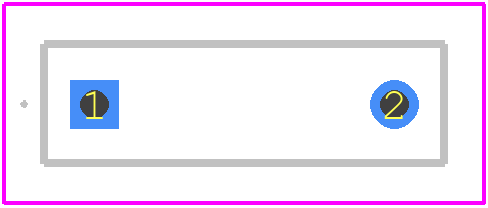

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

FKP3J001502B00JSSD Part Data Attributes

Parametric Data
FKP3J001502B00JSSD Wima
Buy Now Datasheet
Compare Parts:
FKP3J001502B00JSSD Wima Film Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, -200ppm/Cel TC, 0.00015uF, Through Hole Mount, 3912, RADIAL LEADED, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer WIMA GMBH & CO KG
Package Description RADIAL LEADED
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.25.00
Samacsys Manufacturer WIMA
Capacitance 0.00015 µF
Capacitor Type FILM CAPACITOR
Dielectric Material POLYPROPYLENE
Height 8.5 mm
JESD-609 Code e3
Length 10 mm
Mounting Feature THROUGH HOLE MOUNT
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style Radial
Packing Method BULK
Positive Tolerance 5%
Rated (AC) Voltage (URac) 300 V
Rated (DC) Voltage (URdc) 630 V
Surface Mount NO
Temperature Coefficient -200ppm/Cel ppm/°C
Terminal Finish TIN
Terminal Pitch 7.5 mm
Terminal Shape WIRE
Width 3 mm

Alternate Parts for FKP3J001502B00JSSD

This table gives cross-reference parts and alternative options found for FKP3J001502B00JSSD. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FKP3J001502B00JSSD, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
FKP3J001502B00JCSD Wima Check for Price Film Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, 0.00015uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT FKP3J001502B00JSSD vs FKP3J001502B00JCSD
FKP3J001502B00JASD Wima Check for Price Film Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, 0.00015uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT FKP3J001502B00JSSD vs FKP3J001502B00JASD
FKP3J001502B00JB00 Wima Check for Price Film Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, -200ppm/Cel TC, 0.00015uF, Through Hole Mount, RADIAL LEADED FKP3J001502B00JSSD vs FKP3J001502B00JB00
FKP3J001502B00JD00 Wima Check for Price Film Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, -200ppm/Cel TC, 0.00015uF, Through Hole Mount, RADIAL LEADED FKP3J001502B00JSSD vs FKP3J001502B00JD00
FKP3J001502B00JC00 Wima Check for Price Film Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, -200ppm/Cel TC, 0.00015uF, Through Hole Mount, RADIAL LEADED FKP3J001502B00JSSD vs FKP3J001502B00JC00
FKP3J001502B00JH00 Wima Check for Price Film Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, -200ppm/Cel TC, 0.00015uF, Through Hole Mount, RADIAL LEADED FKP3J001502B00JSSD vs FKP3J001502B00JH00
FKP3J001502B00JF00 Wima Check for Price Film Capacitor, Polypropylene, 630V, 5% +Tol, 5% -Tol, -200ppm/Cel TC, 0.00015uF, Through Hole Mount, RADIAL LEADED FKP3J001502B00JSSD vs FKP3J001502B00JF00

FKP3J001502B00JSSD Related Parts

FKP3J001502B00JSSD Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for FKP3J001502B00JSSD is between 250°C to 260°C, with a maximum soldering time of 3 seconds.

  • Yes, FKP3J001502B00JSSD is suitable for high-frequency applications up to 100 kHz due to its low equivalent series resistance (ESR) and high resonance frequency.

  • Yes, FKP3J001502B00JSSD is designed to operate in humid environments and meets the requirements of IEC 60384-16 for humidity robustness.

  • The shelf life of FKP3J001502B00JSSD is 2 years from the date of manufacture, as long as it is stored in its original packaging and under recommended storage conditions.

  • Yes, FKP3J001502B00JSSD is RoHS and REACH compliant, making it suitable for use in EU-based applications.
