Connectors / Headers and Edge Type Connectors / FHP-15-02-T-S-LC
Datasheets
FHP-15-02-T-S-LC by: Samtec Inc

Board Connector, 15 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

Part Details for FHP-15-02-T-S-LC by Samtec Inc

Results Overview of FHP-15-02-T-S-LC by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

FHP-15-02-T-S-LC Information

FHP-15-02-T-S-LC by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for FHP-15-02-T-S-LC

Part # Distributor Description Stock Price Buy
DISTI # 99P6736
Newark ".156" Power Eye Socket Strip" Rohs Compliant: Yes |Samtec FHP-15-02-T-S-LC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $7.5500
  • 10 $7.2400
  • 100 $5.9800
  • 500 $5.0600
  • 1,000 $4.4100
  • 2,500 $4.1900
$4.1900 / $7.5500 Buy Now
DISTI # FHP-15-02-T-S-LC-ND
DigiKey CONN RCPT 15POS 0.156 TIN SMD Min Qty: 9 Lead time: 6 Weeks Container: Tube Temporarily Out of Stock
  • 9 $7.4844
$7.4844 Buy Now
DISTI # FHP-15-02-T-S-LC
Avnet Americas PCB Receptacle, Power Terminal, Board-to-Board, 3.96 mm, 1 Rows, 15 Contacts, Surface Mount, FHP - Rail/Tube (Alt: FHP-15-02-T-S-LC) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Tube 0
  • 1 $6.5954
  • 10 $6.5617
  • 30 $5.2186
  • 50 $5.1917
  • 100 $5.1648
$5.1648 / $6.5954 Buy Now
DISTI # 200-FHP1502TSLC
Mouser Electronics Power to the Board .156" Power Eye Socket Strip RoHS: Compliant 0
  • 1 $6.7300
  • 27 $6.0800
  • 54 $5.6500
  • 108 $5.3800
  • 504 $4.1000
  • 1,008 $3.6700
  • 2,502 $2.8200
$2.8200 / $6.7300 Order Now
Onlinecomponents.com .156" Power Eye Socket Strip RoHS: Compliant 0
  • 5 $7.7900
  • 25 $6.3300
  • 50 $6.2300
  • 100 $6.0400
  • 250 $5.5500
  • 500 $4.2200
  • 1,000 $3.7700
  • 2,500 $2.9000
$2.9000 / $7.7900 Buy Now
DISTI # 5cd8e687cd7c1c4c38362a8e
Samtec .156" Power Eye Socket Strip RoHS: Compliant Min Qty: 1 Lead time: 6 Weeks, 5 Days Container: Tube 0
  • 1 $6.7300
  • 25 $6.0800
  • 50 $5.6500
  • 100 $5.3800
  • 500 $4.1000
  • 1,000 $3.6700
  • 2,500 $2.8200
  • 5,000 $1.9700
$1.9700 / $6.7300 Buy Now
DISTI # 000000000001300111
Sager Power to the Board .156 Power Eye Socket Strip Min Qty: 1 0
  • 1 $6.7300
  • 25 $6.0800
  • 50 $5.6500
  • 100 $5.3800
  • 500 $4.1000
  • 1,000 $3.6700
$3.6700 / $6.7300 Buy Now
Master Electronics .156" Power Eye Socket Strip RoHS: Compliant 0
  • 5 $7.7900
  • 25 $6.3300
  • 50 $6.2300
  • 100 $6.0400
  • 250 $5.5500
  • 500 $4.2200
  • 1,000 $3.7700
  • 2,500 $2.9000
$2.9000 / $7.7900 Buy Now

Part Details for FHP-15-02-T-S-LC

FHP-15-02-T-S-LC CAD Models

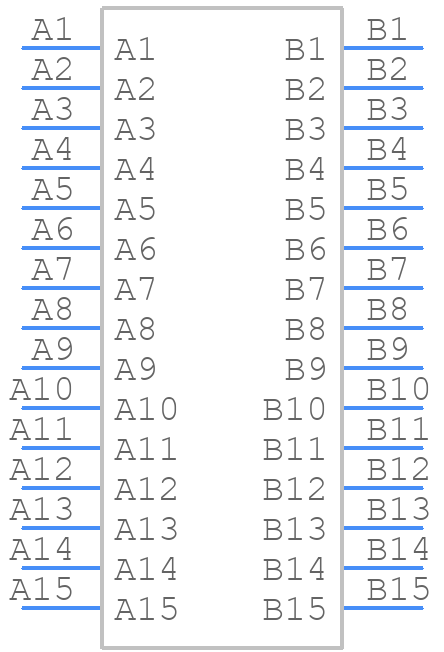

  • Part Symbol

    Part Symbol

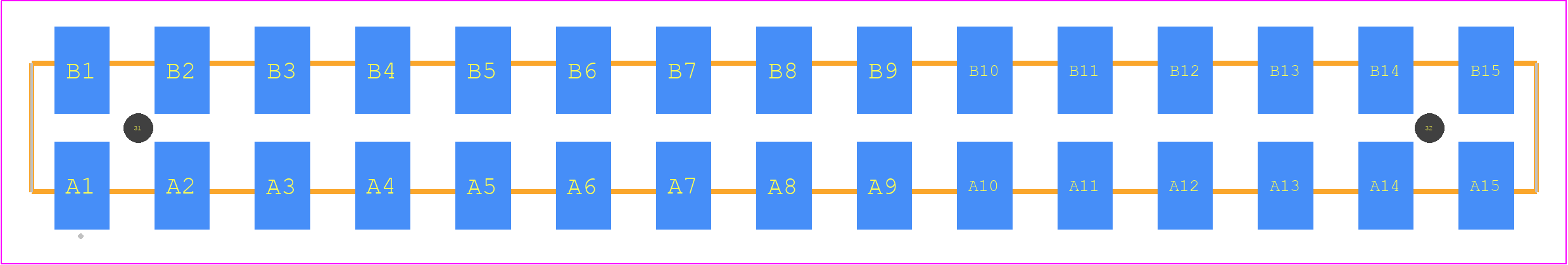

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

FHP-15-02-T-S-LC Part Data Attributes

Parametric Data
FHP-15-02-T-S-LC Samtec Inc
Buy Now Datasheet
Compare Parts:
FHP-15-02-T-S-LC Samtec Inc Board Connector, 15 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 111 Weeks
Samacsys Manufacturer SAMTEC
Body Breadth 0.2 inch
Body Depth 0.368 inch
Body Length 2.34 inch
Body/Shell Style SOCKET
Connector Type BOARD CONNECTOR
Contact Arrangement S0P15
Contact Finish Mating TIN OVER NICKEL
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material BERYLLIUM COPPER
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max 15.568 N
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number of Rows Loaded 1
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
Terminal Pitch 3.96 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 15
Withdrawl Force-Min 14.6784 N
