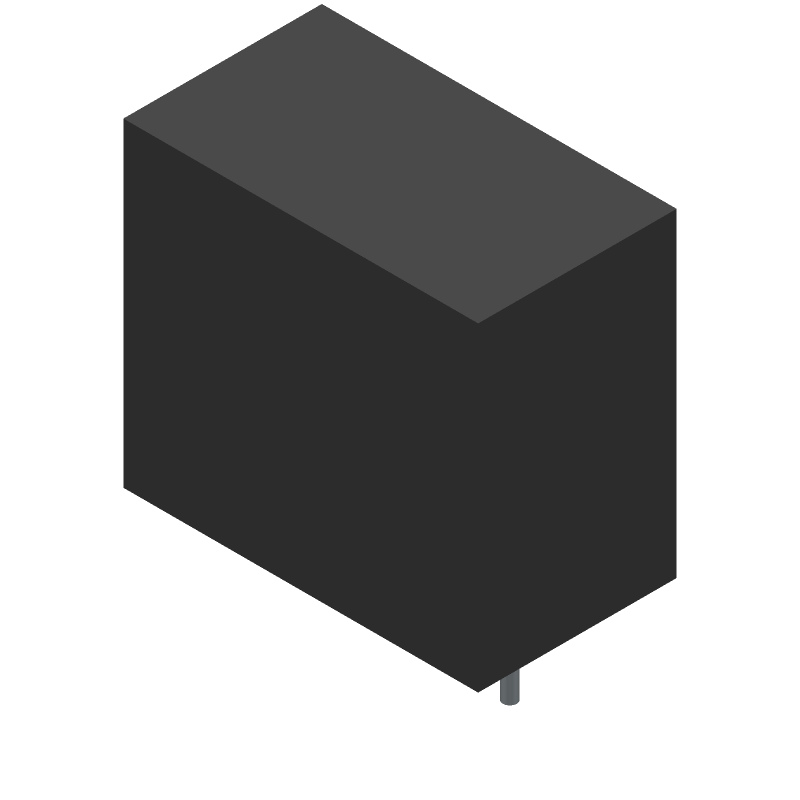

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FHACD1C2V183J0LGZ0 by Chemi-Con
Results Overview of FHACD1C2V183J0LGZ0 by Chemi-Con
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
FHACD1C2V183J0LGZ0 Information
FHACD1C2V183J0LGZ0 by Chemi-Con is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for FHACD1C2V183J0LGZ0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
87564387
|
Verical | Cap Film 0.018uF 1250V PP 5% (17.7 X 9.3 X 9.7mm) Radial 12.5mm 105C Bulk Min Qty: 58 Package Multiple: 1 Date Code: 1807 | Americas - 1757 |
|
$0.5094 | Buy Now |
Part Details for FHACD1C2V183J0LGZ0
FHACD1C2V183J0LGZ0 CAD Models
FHACD1C2V183J0LGZ0 Part Data Attributes
|
|
FHACD1C2V183J0LGZ0
Chemi-Con
Buy Now
Datasheet
|
Compare Parts:
FHACD1C2V183J0LGZ0
Chemi-Con
Film Capacitor, Polypropylene, 1250V, 5% +Tol, 5% -Tol, 0.018uF, Through Hole Mount, 7037, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | NIPPON CHEMI-CON CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.70 | |
| Samacsys Manufacturer | Chemi-Con | |
| Capacitance | 0.018 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYPROPYLENE | |
| Height | 9.7 mm | |
| JESD-609 Code | e3 | |
| Length | 17.7 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 5% | |
| Rated (AC) Voltage (URac) | 300 V | |
| Rated (DC) Voltage (URdc) | 1250 V | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 12.5 mm | |
| Terminal Shape | WIRE | |
| Width | 9.3 mm |
