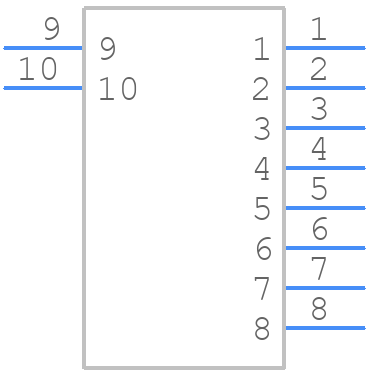

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FH52-8S-0.5SH by Hirose Electric Co Ltd
Results Overview of FH52-8S-0.5SH by Hirose Electric Co Ltd
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
FH52-8S-0.5SH Information
FH52-8S-0.5SH by Hirose Electric Co Ltd is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for FH52-8S-0.5SH
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
H125756CT-ND
|
DigiKey | CONN FFC BOTTOM 8POS 0.5MM R/A Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
3163 In Stock |
|
$0.7039 / $1.3400 | Buy Now |
|
DISTI #
FH52-8S-0.5SH
|
Avnet Americas | Conn FPC/FFC Connector RCP 8 POS 0.5mm Solder RA SMD T/R - Tape and Reel (Alt: FH52-8S-0.5SH) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
798-FH528S0.5SH
|
Mouser Electronics | FFC & FPC Connectors 8P 0.5MM PITCH R/A SMT, AU RoHS: Compliant | 3321 |
|
$0.6250 / $1.4100 | Buy Now |
|
DISTI #
87562069
|
Verical | FH52-8S-0.5SH Min Qty: 73 Package Multiple: 1 Date Code: 2306 | Americas - 1833 |
|
$0.8270 / $1.2700 | Buy Now |
|
|
Quest Components | 2768 |
|
$0.5880 / $1.9600 | Buy Now | |
|
|
Future Electronics | 8 Position 0.5mm Pitch Right Angle SMT FFC/FPC Connector Min Qty: 3000 Package Multiple: 3000 |
3000 null |
|
$0.1880 / $0.1960 | Buy Now |
|
DISTI #
FH52-8S-0.5SH
|
IBS Electronics | FFC FPC CONNECTORS HORIZONTAL MOUNTING ANGLE GRAY BLACK 0.5 MM - PITCH 8 POSITIONS Min Qty: 3000 Package Multiple: 1 | 3000 |
|
$0.2444 / $0.2548 | Buy Now |
|
DISTI #
000000000003973591
|
Sager | FFC & FPC Connectors 8P 0.5MM PITCH R/A SMT, AU | 0 |
|
Buy Now | |
|
DISTI #
CL0580-3305-3-00
|
Avnet Abacus | Conn FPCFFC Connector RCP 8 POS 05mm Solder RA SMD TR (Alt: CL0580-3305-3-00) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
FH52-8S-0.5SH
|
Chip One Stop | Interconnects RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1833 |
|
$0.5700 / $1.2700 | Buy Now |
Part Details for FH52-8S-0.5SH

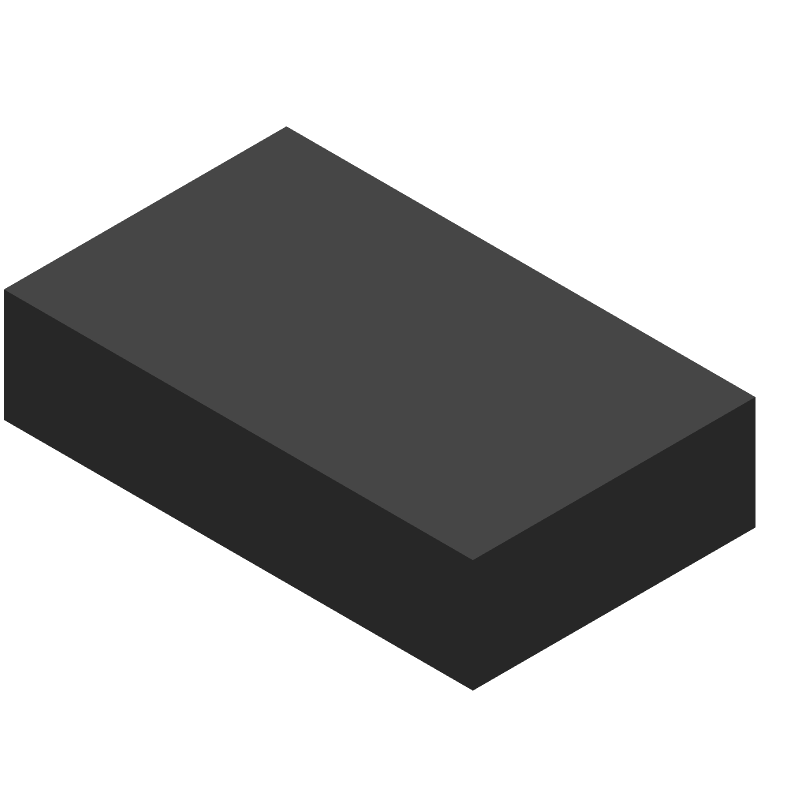

FH52-8S-0.5SH CAD Models
FH52-8S-0.5SH Part Data Attributes
|
|
FH52-8S-0.5SH
Hirose Electric Co Ltd
Buy Now
Datasheet
|
Compare Parts:
FH52-8S-0.5SH
Hirose Electric Co Ltd
Card Edge Connector
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | HIROSE ELECTRIC CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | Hirose | |
| Body Breadth | 0.079 inch | |
| Body Depth | 0.224 inch | |
| Body Length | 0.327 inch | |
| Connector Type | FFC/FPC CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | Gold (Au) | |
| Contact Gender | FEMALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 50 mΩ | |
| Contact Style | BELLOWED TYPE | |
| Dielectric Withstanding Voltage | 150VAC V | |
| Durability | 20 Cycles | |
| Filter Feature | NO | |
| Insulation Resistance | 500000000 Ω | |
| Insulator Color | BLACK/GREY | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e4 | |
| Mating Contact Pitch | 0.02 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 0.5 A | |
| Reference Standard | UL | |
| Terminal Pitch | 0.5 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 8 | |
| UL Flammability Code | 94V-0 |
FH52-8S-0.5SH Frequently Asked Questions (FAQ)
-
The recommended torque is 0.5 N·m to 1.5 N·m, but it's recommended to consult the Hirose application notes for specific guidance.
-
Yes, the FH52-8S-0.5SH is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to consult with Hirose or a qualified engineer to ensure proper implementation.
-
The maximum operating temperature for the FH52-8S-0.5SH is 125°C, but it's recommended to consult the datasheet and application notes for specific temperature ratings and derating guidelines.
-
The FH52-8S-0.5SH is designed to be resistant to harsh environments, but it's recommended to consult with Hirose or a qualified engineer to ensure the connector is suitable for the specific application and environment.
-
The recommended mating cycle for the FH52-8S-0.5SH is 500 cycles, but it's recommended to consult the datasheet and application notes for specific guidance on mating cycles and connector lifespan.
