FFSM0665A Information
FFSM0665A by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for FFSM0665A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84AC6679
|
Newark | Sic Schottky Diode, 650V, 6A, Qfn, Product Range:Elitesic Series, Diode Configuration:Single, Repetitive Peak Reverse Voltage:650V, Average Forward Current:6A, Total Capacitive Charge:22Nc, Diode Case Style:Qfn, No. Of Pins:4 Pin Rohs Compliant: Yes |Onsemi FFSM0665A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$1.7900 / $2.8800 | Buy Now |
|
DISTI #
5556-FFSM0665ACT-ND
|
DigiKey | DIODE SIL CARBIDE 650V 8A 4PQFN Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2845 In Stock |
|
$1.5088 / $4.3300 | Buy Now |
|
DISTI #
FFSM0665A
|
Avnet Americas | Diode SiC Schottky 650V 6A 4-Pin QFN T/R - Tape and Reel (Alt: FFSM0665A) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$1.3411 / $1.5474 | Buy Now |
|
DISTI #
863-FFSM0665A
|
Mouser Electronics | SiC Schottky Diodes 650V 6A SIC SBD RoHS: Compliant | 3253 |
|
$1.5000 / $3.7900 | Buy Now |
|
DISTI #
V79:2366_26238285
|
Arrow Electronics | Diode Schottky SiC 650V 8A 4-Pin PQFN EP T/R Min Qty: 1 Package Multiple: 1 Date Code: 1834 | Americas - 437 |
|
$1.1670 | Buy Now |
|
|
Onlinecomponents.com | Silicon Carbide (SiC) Schottky Diode, 650 V, 6 A, Power88 RoHS: Compliant | 0 |
|
$1.5000 / $4.1000 | Buy Now |
|
DISTI #
87651806
|
Verical | Diode Schottky SiC 650V 8A 4-Pin PQFN EP T/R Min Qty: 3000 Package Multiple: 3000 | Americas - 24000 |
|
$1.7243 | Buy Now |
|
DISTI #
59374100
|
Verical | Diode Schottky SiC 650V 8A 4-Pin PQFN EP T/R Min Qty: 5 Package Multiple: 1 Date Code: 1834 | Americas - 437 |
|
$1.1670 | Buy Now |
|
|
Rochester Electronics | FFSM0665A - SiC Diode - 650V, 6A, PQFN88 RoHS: Not Compliant Status: Active Min Qty: 1 | 3000 |
|
$1.2700 / $1.5900 | Buy Now |
|
DISTI #
FFSM0665A
|
TME | Diode: Schottky rectifying, SiC, SMD, 650V, 8A, reel,tape Min Qty: 1 | 0 |
|
$1.8900 / $3.1500 | RFQ |
Part Details for FFSM0665A
FFSM0665A CAD Models
FFSM0665A Part Data Attributes
|
|
FFSM0665A
onsemi
Buy Now
Datasheet
|
Compare Parts:
FFSM0665A
onsemi

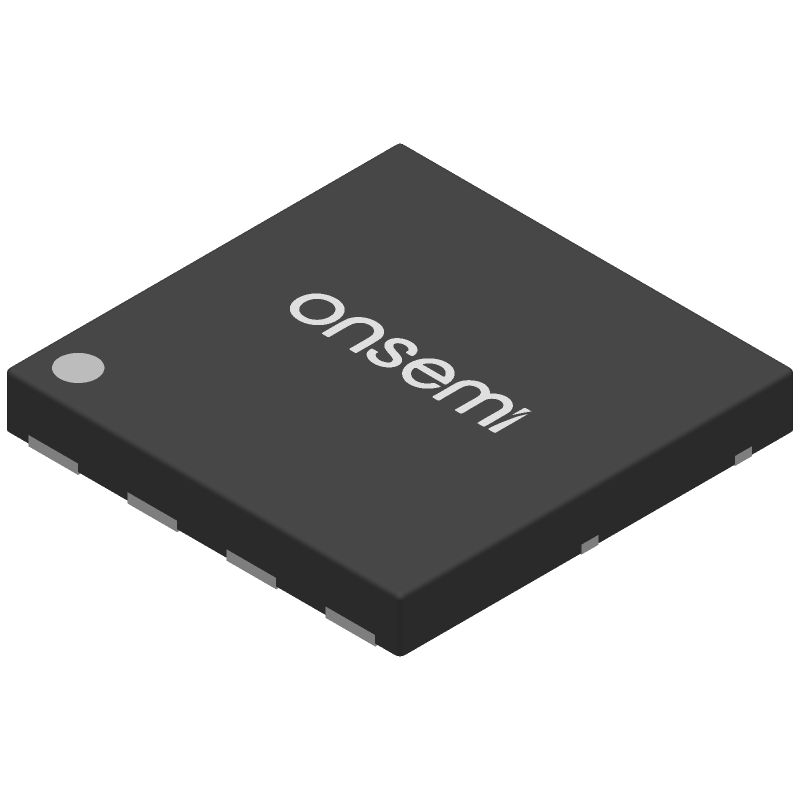

Silicon Carbide (SiC) Schottky Diode, 650 V, 6 A, Power88, PQFN-4, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | PQFN-4 | |
| Package Description | QFN-5 | |
| Manufacturer Package Code | 483AP | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | HIGH RELIABILITY, PD-CASE | |
| Application | EFFICIENCY | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON CARBIDE | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.75 V | |
| JESD-30 Code | S-PSSO-N4 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 415 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 8 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 56 W | |
| Rep Pk Reverse Voltage-Max | 650 V | |
| Reverse Current-Max | 200 µA | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Form | NO LEAD | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
