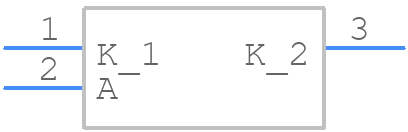

Part Symbol
-

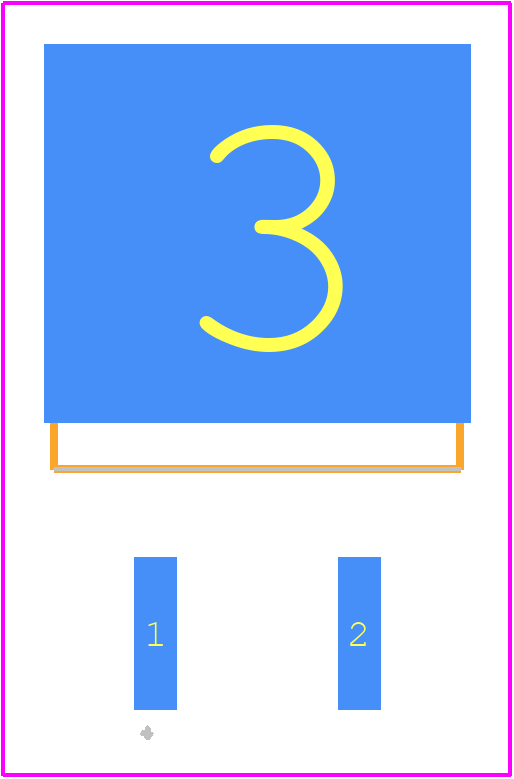

Footprint
-

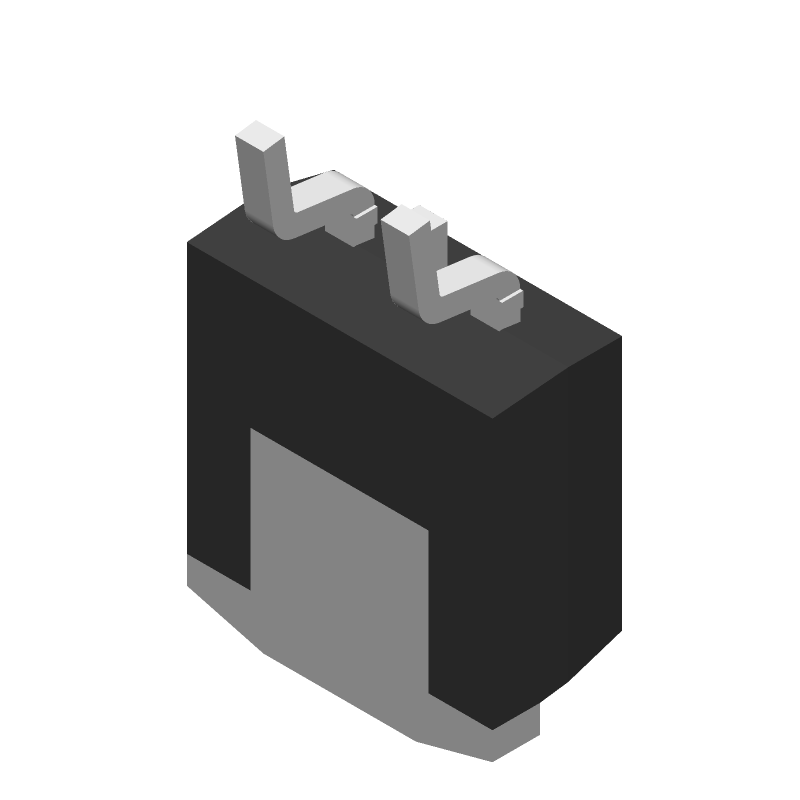

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FFSB10120A-F085 by onsemi
Results Overview of FFSB10120A-F085 by onsemi
- Distributor Offerings: (20 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
FFSB10120A-F085 Information
FFSB10120A-F085 by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for FFSB10120A-F085
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84AC6672
|
Newark | Sic Schottky Diode, 1.2Kv, 10A, To-263, Product Range:Elitesic Series, Diode Configuration:Single, Repetitive Peak Reverse Voltage:1.2Kv, Average Forward Current:10A, Total Capacitive Charge:62Nc, Diode Case Style:To-263 (D2Pak) Rohs Compliant: Yes |Onsemi FFSB10120A-F085 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 581 |
|
$5.9600 / $9.6400 | Buy Now |
|
DISTI #
5556-FFSB10120A-F085CT-ND
|
DigiKey | DIODE SIL CARB 1200V 21A TO263 Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
112 In Stock |
|
$3.6895 / $8.4600 | Buy Now |
|
DISTI #
FFSB10120A-F085
|
Avnet Americas | Silicon Carbide (SiC) Schottky Diode -?EliteSiC, 10A, 1200V, D1, D2PAK Automotive Silicon Carbide (SiC) Schottky Diode, 1200V - Tape and Reel (Alt: FFSB10120A-F085) RoHS: Compliant Min Qty: 800 Package Multiple: 800 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$3.5138 / $3.7841 | Buy Now |
|
DISTI #
863-FFSB10120A-F085
|
Mouser Electronics | SiC Schottky Diodes 1200V 10A AUTO SIC SBD RoHS: Compliant | 1436 |
|
$3.8300 / $7.5100 | Buy Now |
|
|
Future Electronics | FFSB Series 1200 V 10 A Surface Mount Silicon Carbide Schottky Diode - TO-263-3 RoHS: Compliant pbFree: Yes Min Qty: 800 Package Multiple: 800 Lead time: 8 Weeks Container: Reel | 800Reel |
|
$3.4400 | Buy Now |
|
|
Onlinecomponents.com | Rectifier Diode, Schottky, 1 Phase, 1 Element, 21A, 1200V V(RRM), Silicon Carbide, TO-263AB RoHS: Compliant | 0 |
|
$3.6600 / $7.6700 | Buy Now |
|
DISTI #
85983309
|
Verical | Automotive Silicon Carbide (SiC) Schottky Diode, 1200V Automotive Silicon Carbide (SiC) Schottky Diode, 1200V Min Qty: 78 Package Multiple: 1 Date Code: 2201 | Americas - 8000 |
|
$3.8750 / $4.8375 | Buy Now |
|
DISTI #
85992120
|
Verical | Automotive Silicon Carbide (SiC) Schottky Diode, 1200V Automotive Silicon Carbide (SiC) Schottky Diode, 1200V Min Qty: 78 Package Multiple: 1 Date Code: 2101 | Americas - 1600 |
|
$3.8750 / $4.8375 | Buy Now |
|
DISTI #
85983171
|
Verical | Automotive Silicon Carbide (SiC) Schottky Diode, 1200V Automotive Silicon Carbide (SiC) Schottky Diode, 1200V Min Qty: 78 Package Multiple: 1 Date Code: 1801 | Americas - 1530 |
|
$3.8750 / $4.8375 | Buy Now |
|
DISTI #
85980739
|
Verical | Automotive Silicon Carbide (SiC) Schottky Diode, 1200V Automotive Silicon Carbide (SiC) Schottky Diode, 1200V Min Qty: 78 Package Multiple: 1 Date Code: 2301 | Americas - 800 |
|
$3.8750 / $4.8375 | Buy Now |
Part Details for FFSB10120A-F085
FFSB10120A-F085 CAD Models
FFSB10120A-F085 Part Data Attributes
|
|
FFSB10120A-F085
onsemi
Buy Now
Datasheet
|
Compare Parts:
FFSB10120A-F085
onsemi
Silicon Carbide (SiC) Schottky Diode - EliteSiC, 10A, 1200V, D1, D2PAK Automotive Silicon Carbide (SiC) Schottky Diode, 1200V, D2PAK2 (TO-263-2L), 800-REEL, Automotive Qualified
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | D2PAK2 (TO-263-2L) | |
| Package Description | TO-263, D2PAK-3/2 | |
| Manufacturer Package Code | 418BK | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 2018-07-17 | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | HIGH RELIABILITY, PD-CASE | |
| Application | EFFICIENCY | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON CARBIDE | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.75 V | |
| JEDEC-95 Code | TO-263AB | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 90 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 21 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 283 W | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 1200 V | |
| Reverse Current-Max | 200 µA | |
| Reverse Test Voltage | 1200 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
FFSB10120A-F085 Frequently Asked Questions (FAQ)
-
A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. This helps to dissipate heat efficiently and reduces thermal resistance.
-
Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the device's power handling capability at high temperatures.
-
A gate drive voltage of 10-15V is recommended for optimal switching performance. This ensures that the device is fully enhanced and minimizes switching losses.
-
Use a TVS (Transient Voltage Suppressor) diode or a voltage clamp to protect the device from overvoltage conditions. Implement overcurrent protection using a fuse or a current sense resistor with a comparator circuit.
-
A dead time of 100-200ns is recommended to minimize shoot-through current. This ensures that the high-side and low-side devices are not conducting simultaneously, reducing losses and improving efficiency.
