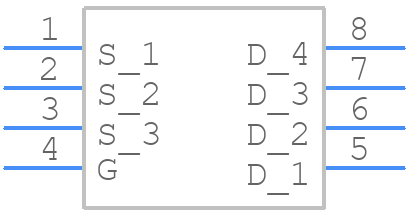

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FDS4435A by onsemi
Results Overview of FDS4435A by onsemi
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
FDS4435A Information
FDS4435A by onsemi is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FDS4435A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78K5929
|
Newark | P Channel Mosfet, -30V, 9A, Soic, Channel Type:P Channel, Drain Source Voltage Vds:30V, Continuous Drain Current Id:9A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:1.7V Rohs Compliant: Yes |Onsemi FDS4435A RoHS: Compliant Min Qty: 625 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
58P0605
|
Newark | P Channel Mosfet, -30V, 9A, Soic, Channel Type:P Channel, Drain Source Voltage Vds:30V, Continuous Drain Current Id:9A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:1.7V Rohs Compliant: Yes |Onsemi FDS4435A RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
|
Bristol Electronics | Min Qty: 3 | 47 |
|
$1.3125 / $2.1000 | Buy Now |
|
|
Quest Components | TRANSISTOR,MOSFET,P-CHANNEL,30V V(BR)DSS,9A I(D),SO | 37 |
|
$1.7500 / $2.8000 | Buy Now |
|
DISTI #
FDS4435A
|
EBV Elektronik | Trans MOSFET PCH 30V 9A 8Pin SOIC N TR (Alt: FDS4435A) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for FDS4435A
FDS4435A CAD Models
FDS4435A Part Data Attributes
|
|
FDS4435A
onsemi
Buy Now
Datasheet
|
Compare Parts:
FDS4435A
onsemi
Small Signal Field-Effect Transistor
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Package Description | SOP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 4 Weeks | |
| Date Of Intro | 2017-11-07 | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 9 A | |
| Drain-source On Resistance-Max | 0.017 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 8 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 2.5 W | |
| Surface Mount | YES | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
FDS4435A Frequently Asked Questions (FAQ)
-
The FDS4435A can operate from -40°C to 150°C, making it suitable for high-reliability applications.
-
To ensure proper biasing, connect the gate to a voltage source through a resistor (e.g., 1 kΩ) and connect the source to ground through a resistor (e.g., 1 kΩ). This will provide a stable voltage reference.
-
To minimize parasitic inductance, use a compact PCB layout with short, wide traces. Place the FDS4435A near the power source and use a solid ground plane to reduce inductance. Avoid using vias or narrow traces near the device.
-
Yes, the FDS4435A is suitable for high-frequency switching applications up to 1 MHz. However, ensure proper PCB layout and decoupling to minimize ringing and electromagnetic interference (EMI).
-
Handle the FDS4435A with ESD-protective equipment and follow proper ESD-handling procedures. Use an ESD-protective wrist strap or mat, and ensure the workspace is ESD-safe.
