FDMS037N08B Information
FDMS037N08B by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FDMS037N08B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
99AC9176
|
Newark | Mosfet, N-Ch, 75V, 100A, 104.2W, Power56, Transistor Polarity:N Channel, Continuous Drain Current Id:100A, Drain Source Voltage Vds:75V, On Resistance Rds(On):0.00301Ohm, Rds(On) Test Voltage Vgs:10V, Threshold Voltage Vgs:4.5V, Rohs Compliant: Yes |Onsemi FDMS037N08B RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
63W2862
|
Newark | Fet 75V 3.7 Mohm Pqfn56/Reel Rohs Compliant: Yes |Onsemi FDMS037N08B RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.1300 / $1.4300 | Buy Now |
|
DISTI #
FDMS037N08BCT-ND
|
DigiKey | MOSFET N-CH 75V 100A 8PQFN Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3568 In Stock |
|
$1.1267 / $2.7300 | Buy Now |
|
DISTI #
FDMS037N08B
|
Avnet Americas | Trans MOSFET N-CH 75V 19.9A 8-Pin Power 56 T/R - Tape and Reel (Alt: FDMS037N08B) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days Container: Reel | 12000 Factory Stock |
|
$1.0679 / $1.0993 | Buy Now |
|
DISTI #
512-FDMS037N08B
|
Mouser Electronics | MOSFETs PT7 75V 3.7mohm PQFN56 RoHS: Compliant | 2699 |
|
$1.1200 / $2.6800 | Buy Now |
|
DISTI #
E02:0323_06926477
|
Arrow Electronics | Trans MOSFET N-CH Si 75V 19.9A 8-Pin PQFN EP T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks Date Code: 2339 | Europe - 3000 |
|
$1.1546 / $1.8008 | Buy Now |
|
|
Onlinecomponents.com | Single N-Channel 75 V 3.7 mOhm 100 nC 104.2 W PowerTrench SMT Mosfet POWER 56-8 RoHS: Compliant | 0 |
|
$1.1200 / $3.0600 | Buy Now |
|
DISTI #
87803952
|
Verical | Trans MOSFET N-CH Si 75V 19.9A 8-Pin PQFN EP T/R Min Qty: 3000 Package Multiple: 3000 | Americas - 12000 |
|
$1.1338 | Buy Now |
|
DISTI #
16634546
|
Verical | Trans MOSFET N-CH Si 75V 19.9A 8-Pin PQFN EP T/R Min Qty: 3000 Package Multiple: 3000 | Americas - 3000 |
|
$1.1507 / $1.7947 | Buy Now |
|
DISTI #
FDMS037N08B
|
TME | Transistor: N-MOSFET, unipolar, 75V, 100A, Idm: 400A, 104.2W, PQFN8 Min Qty: 1 | 0 |
|
$1.3000 / $2.4100 | RFQ |
Part Details for FDMS037N08B

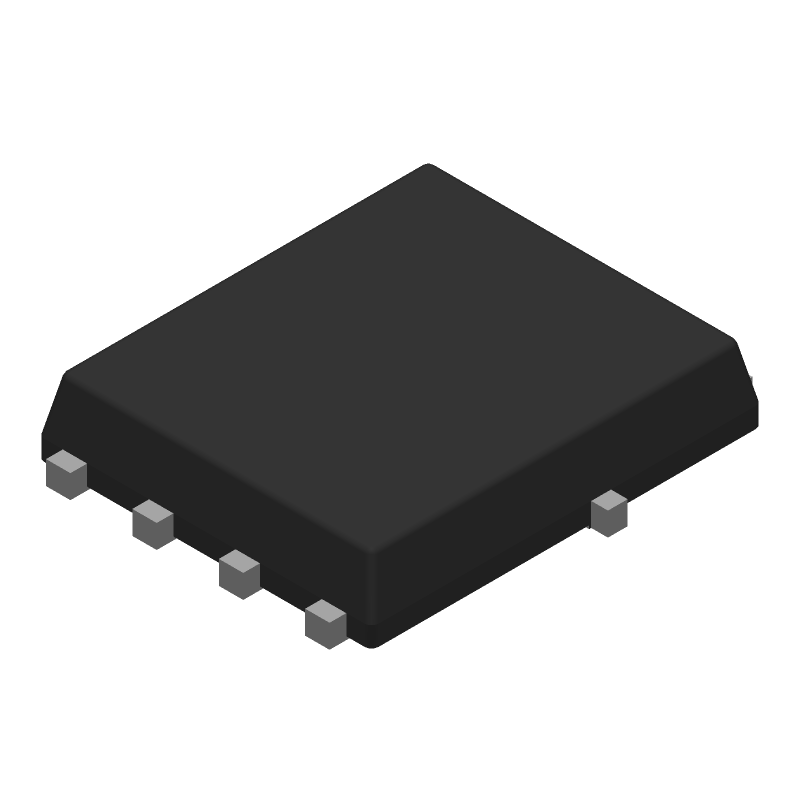

FDMS037N08B CAD Models
