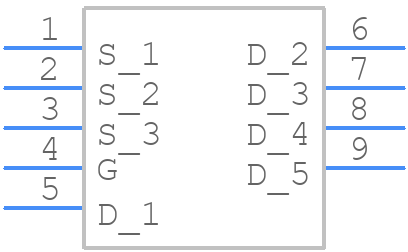

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
N-Channel Power Trench® MOSFET 30V, 16.5A, 14mΩ, WDFN-8, 3000-REEL
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
FDMC8878 by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
61M6264
|
Newark | Mosfet, N, Smd, Mlp, Transistor Polarity:N Channel, Continuous Drain Current Id:16.5A, Drain Source Voltage Vds:30V, On Resistance Rds(On):0.014Ohm, Rds(On) Test Voltage Vgs:20V, Threshold Voltage Vgs:1.7V, Power Dissipation Pd:2.1W, rohs Compliant: Yes |Onsemi FDMC8878 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
Buy Now | |
DISTI #
FDMC8878CT-ND
|
DigiKey | MOSFET N-CH 30V 9.6A/16.5A 8MLP Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
228 In Stock |
|
$0.4955 / $1.8600 | Buy Now |
DISTI #
FDMC8878
|
Avnet Americas | Trans MOSFET N-CH 30V 9.6A 8-Pin Power 33 T/R - Tape and Reel (Alt: FDMC8878) RoHS: Compliant Min Qty: 1725 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 3408 Partner Stock |
|
$0.5007 / $0.5112 | Buy Now |
DISTI #
85987765
|
Verical | Trans MOSFET N-CH Si 30V 9.6A 8-Pin WDFN EP T/R RoHS: Compliant Min Qty: 426 Package Multiple: 1 Date Code: 1701 | Americas - 3000 |
|
$0.5463 / $0.8810 | Buy Now |
DISTI #
85986222
|
Verical | Trans MOSFET N-CH Si 30V 9.6A 8-Pin WDFN EP T/R RoHS: Compliant Min Qty: 426 Package Multiple: 1 Date Code: 2301 | Americas - 1722 |
|
$0.5463 / $0.8810 | Buy Now |
DISTI #
87892365
|
Verical | Trans MOSFET N-CH Si 30V 9.6A 8-Pin WDFN EP T/R RoHS: Compliant Min Qty: 61 Package Multiple: 1 Date Code: 2235 | Americas - 171 |
|
$0.7900 / $1.0600 | Buy Now |
|
Bristol Electronics | 513 |
|
RFQ | ||
|
Bristol Electronics | Min Qty: 5 | 346 |
|
$0.3600 / $1.1250 | Buy Now |
|
Quest Components | POWER FIELD-EFFECT TRANSISTOR, 9.6A I(D), 30V, 0.014OHM, 1-ELEMENT, N-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET | 534 |
|
$0.9787 / $2.1160 | Buy Now |
|
Quest Components | POWER FIELD-EFFECT TRANSISTOR, 9.6A I(D), 30V, 0.014OHM, 1-ELEMENT, N-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET | 473 |
|
$0.4655 / $1.1172 | Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
FDMC8878
onsemi
Buy Now
Datasheet
|
Compare Parts:
FDMC8878
onsemi
N-Channel Power Trench® MOSFET 30V, 16.5A, 14mΩ, WDFN-8, 3000-REEL
|
Pbfree Code | Yes | |
Rohs Code | Yes | |
Part Life Cycle Code | Obsolete | |
Ihs Manufacturer | ONSEMI | |
Part Package Code | WDFN-8 | |
Manufacturer Package Code | 511DH | |
Reach Compliance Code | compliant | |
ECCN Code | EAR99 | |
Factory Lead Time | 2 Days | |
Samacsys Manufacturer | onsemi | |
Case Connection | DRAIN | |
Configuration | SINGLE WITH BUILT-IN DIODE | |
DS Breakdown Voltage-Min | 30 V | |
Drain Current-Max (ID) | 9.6 A | |
Drain-source On Resistance-Max | 0.014 Ω | |
FET Technology | METAL-OXIDE SEMICONDUCTOR | |
JESD-30 Code | S-PDSO-N5 | |
JESD-609 Code | e4 | |
Moisture Sensitivity Level | 1 | |
Number of Elements | 1 | |
Number of Terminals | 5 | |
Operating Mode | ENHANCEMENT MODE | |
Operating Temperature-Max | 150 °C | |
Package Body Material | PLASTIC/EPOXY | |
Package Shape | SQUARE | |
Package Style | SMALL OUTLINE | |
Peak Reflow Temperature (Cel) | 260 | |
Polarity/Channel Type | N-CHANNEL | |
Power Dissipation-Max (Abs) | 31 W | |
Pulsed Drain Current-Max (IDM) | 60 A | |
Qualification Status | Not Qualified | |
Surface Mount | YES | |
Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
Terminal Form | NO LEAD | |
Terminal Position | DUAL | |
Time@Peak Reflow Temperature-Max (s) | 30 | |
Transistor Application | SWITCHING | |
Transistor Element Material | SILICON |
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power handling at high temperatures.
The maximum allowable voltage on the enable pin (EN) is 6V. Exceeding this voltage may damage the device.
Yes, but ensure that the device is properly bypassed and decoupled to minimize electromagnetic interference (EMI). Follow the recommended layout and decoupling guidelines.
Use a TVS diode or a zener diode to clamp the voltage and protect the device from EOS. Also, ensure that the device is operated within the recommended voltage and current ratings.
