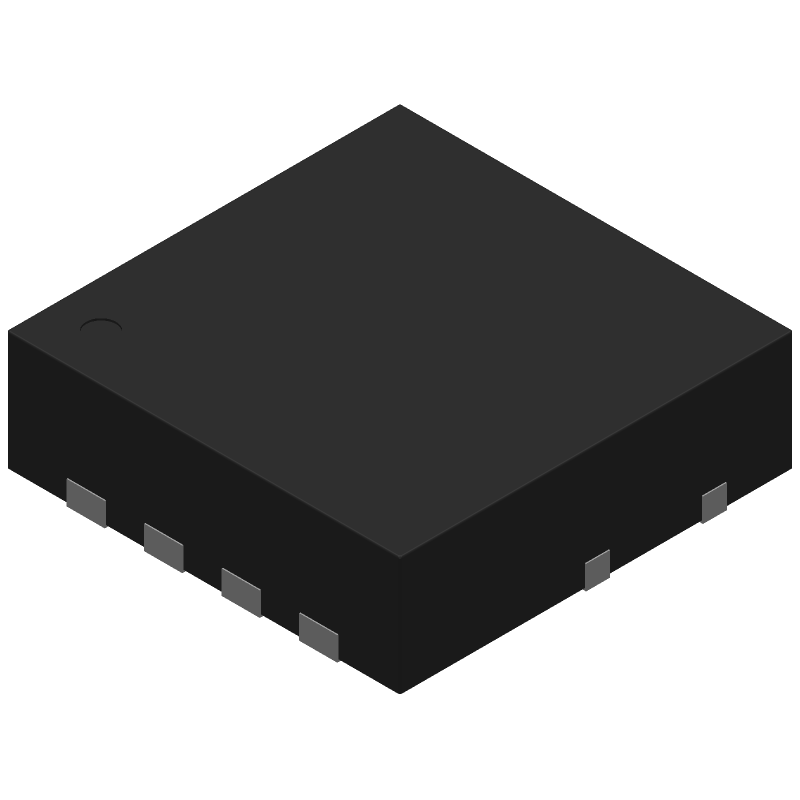

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FDMC8321L by onsemi
Results Overview of FDMC8321L by onsemi
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
FDMC8321L Information
FDMC8321L by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FDMC8321L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
07AH3915
|
Newark | Mosfet, N-Ch, 49A, 40V, Pqfn, Transistor Polarity:N Channel, Continuous Drain Current Id:49A, Drain Source Voltage Vds:40V, On Resistance Rds(On):0.0019Ohm, Rds(On) Test Voltage Vgs:10V, Threshold Voltage Vgs:1.7V, Power Dissipation Rohs Compliant: Yes |Onsemi FDMC8321L RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$1.0400 / $2.6300 | Buy Now |
|
DISTI #
94T9959
|
Newark | Fet 40V 2.5 Mohm Pqfn33/Reel Rohs Compliant: Yes |Onsemi FDMC8321L RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.5290 / $0.6620 | Buy Now |
|
DISTI #
FDMC8321LCT-ND
|
DigiKey | MOSFET N-CH 40V 22A/49A POWER33 Min Qty: 1 Lead time: 19 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
12523 In Stock |
|
$1.0337 / $2.7200 | Buy Now |
|
DISTI #
FDMC8321L
|
Avnet Americas | Trans MOSFET N-CH 40V 22A 8-Pin Power 33 T/R - Tape and Reel (Alt: FDMC8321L) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 19 Weeks, 0 Days Container: Reel | 0 |
|
$0.9514 / $0.9712 | Buy Now |
|
DISTI #
512-FDMC8321L
|
Mouser Electronics | MOSFETs 40V N-Channel PowerTrench MOSFET RoHS: Compliant | 249 |
|
$1.0300 / $2.7600 | Buy Now |
|
DISTI #
E02:0323_04209677
|
Arrow Electronics | Trans MOSFET N-CH Si 40V 22A 8-Pin Power 33 T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 19 Weeks | Europe - 3000 |
|
$1.0645 | Buy Now |
|
DISTI #
V72:2272_06337897
|
Arrow Electronics | Trans MOSFET N-CH Si 40V 22A 8-Pin Power 33 T/R Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks Date Code: 2345 Container: Cut Strips | Americas - 152 |
|
$0.7382 / $1.0966 | Buy Now |
|
|
Onlinecomponents.com | N-Channel Power Trench® MOSFET 40V, 49A, 2.5mΩ RoHS: Compliant | 0 |
|
$0.4787 / $0.5500 | Buy Now |
|
DISTI #
87549835
|
Verical | Trans MOSFET N-CH Si 40V 22A 8-Pin Power 33 T/R Min Qty: 3000 Package Multiple: 3000 | Americas - 3000 |
|
$1.8261 | Buy Now |
|
DISTI #
77689706
|
Verical | Trans MOSFET N-CH Si 40V 22A 8-Pin Power 33 T/R Min Qty: 11 Package Multiple: 1 Date Code: 2345 | Americas - 152 |
|
$0.7382 / $0.9919 | Buy Now |
Part Details for FDMC8321L
FDMC8321L CAD Models
FDMC8321L Part Data Attributes
|
|
FDMC8321L
onsemi
Buy Now
Datasheet
|
Compare Parts:
FDMC8321L
onsemi
N-Channel Power Trench® MOSFET 40V, 49A, 2.5mΩ, PQFN-8, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | PQFN-8 | |
| Package Description | ROHS COMPLIANT, POWER 33, 8 PIN | |
| Manufacturer Package Code | 483AK | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 19 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Avalanche Energy Rating (Eas) | 86 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 40 V | |
| Drain Current-Max (ID) | 22 A | |
| Drain-source On Resistance-Max | 0.0025 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | MO-240BA | |
| JESD-30 Code | S-PDSO-N5 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 5 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 40 W | |
| Pulsed Drain Current-Max (IDM) | 100 A | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
FDMC8321L Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
-
The FDMC8321L requires a bias voltage of 3.3V or 5V. Ensure the bias voltage is stable and within the recommended range. A decoupling capacitor of 10uF or larger is recommended to filter out noise.
-
The FDMC8321L can operate up to 100 MHz, but the maximum frequency depends on the specific application and PCB layout. Consult the datasheet for more information.
-
The FDMC8321L has a thermal pad on the bottom of the package. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Keep the ambient temperature below 85°C for optimal performance.
-
The recommended input impedance is 50 ohms, and the recommended output impedance is 50 ohms or 75 ohms, depending on the application. Consult the datasheet for more information.
