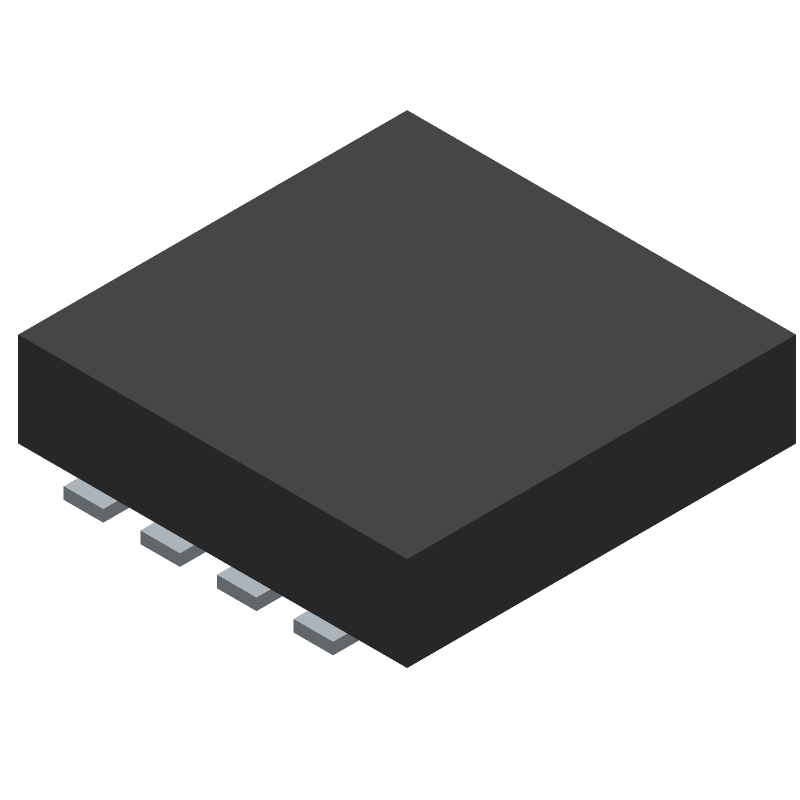

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FDMC7692S by onsemi
Results Overview of FDMC7692S by onsemi
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
FDMC7692S Information
FDMC7692S by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FDMC7692S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
94T2668
|
Newark | Mosfet, N Channel, 30V, 18A, Mlp3.3X3.3, Channel Type:N Channel, Drain Source Voltage Vds:30V, Continuous Drain Current Id:18A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:2V Rohs Compliant: Yes |Onsemi FDMC7692S RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.2430 | Buy Now |
|
DISTI #
64R3018
|
Newark | Mosfet, N Ch, 30V, 18A, Mlp3.3X3.3, Full Reel, Channel Type:N Channel, Drain Source Voltage Vds:30V, Continuous Drain Current Id:18A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:2V Rohs Compliant: Yes |Onsemi FDMC7692S RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1910 / $0.2470 | Buy Now |
|
DISTI #
FDMC7692SCT-ND
|
DigiKey | MOSFET N-CH 30V 12.5A/18A 8MLP Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3081 In Stock |
|
$0.2500 / $0.8900 | Buy Now |
|
DISTI #
FDMC7692S
|
Avnet Americas | Transistor MOSFET N-CH 30V 12.5A 8-Pin WDFN T/R - Tape and Reel (Alt: FDMC7692S) RoHS: Compliant Min Qty: 3125 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 296000 Partner Stock |
|
$0.1882 / $0.1951 | Buy Now |
|
DISTI #
FDMC7692S
|
Avnet Americas | Transistor MOSFET N-CH 30V 12.5A 8-Pin WDFN T/R - Tape and Reel (Alt: FDMC7692S) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
512-FDMC7692S
|
Mouser Electronics | MOSFETs 30V N-Channel PowerTrench SyncFET RoHS: Compliant | 1463 |
|
$0.2040 / $0.8300 | Buy Now |
|
DISTI #
85987939
|
Verical | Trans MOSFET N-CH 30V 12.5A 8-Pin WDFN EP T/R RoHS: Compliant Min Qty: 1498 Package Multiple: 1 Date Code: 2201 | Americas - 30000 |
|
$0.1870 / $0.2504 | Buy Now |
|
DISTI #
85983290
|
Verical | Trans MOSFET N-CH 30V 12.5A 8-Pin WDFN EP T/R RoHS: Compliant Min Qty: 1498 Package Multiple: 1 Date Code: 2101 | Americas - 6000 |
|
$0.1870 / $0.2504 | Buy Now |
|
|
Rochester Electronics | Power Field-Effect Transistor, 12.5A, 30V, 0.0093ohm, N-Channel, MOSFET RoHS: Compliant Status: End of Life / Last Time Buy Min Qty: 1 | 36000 |
|
$0.1496 / $0.2413 | Buy Now |
|
DISTI #
FDMC7692S
|
Richardson RFPD | POWER MOSFET TRANSISTOR RoHS: Compliant Min Qty: 6000 | 0 |
|
$0.1800 | Buy Now |
Part Details for FDMC7692S
FDMC7692S CAD Models
FDMC7692S Part Data Attributes
|
|
FDMC7692S
onsemi
Buy Now
Datasheet
|
Compare Parts:
FDMC7692S
onsemi
N-Channel Power Trench® SyncFET™ 30V, 18A, 9.3mΩ, WDFN-8, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | WDFN-8 | |
| Package Description | 3.30 X 3.30 MM, ROHS COMPLIANT, MLP, 8 PIN | |
| Manufacturer Package Code | 511DQ | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | ULTRA-LOW RESISTANCE | |
| Avalanche Energy Rating (Eas) | 21 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 30 V | |
| Drain Current-Max (ID) | 12.5 A | |
| Drain-source On Resistance-Max | 0.0093 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | S-PDSO-N5 | |
| JESD-609 Code | e4 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 5 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 2.3 W | |
| Pulsed Drain Current-Max (IDM) | 45 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for FDMC7692S
This table gives cross-reference parts and alternative options found for FDMC7692S. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of FDMC7692S, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| FDMC7692S | Fairchild Semiconductor Corporation | Check for Price | Power Field-Effect Transistor, 12.5A I(D), 30V, 0.0093ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, 3.30 X 3.30 MM, ROHS COMPLIANT, MLP, 8 PIN | FDMC7692S vs FDMC7692S |
FDMC7692S Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
-
Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer.
-
The maximum allowable voltage on the input pins is 5.5V, which is the absolute maximum rating. Operating the device above this voltage can cause permanent damage.
-
Yes, the FDMC7692S is suitable for high-frequency switching applications up to 100 kHz. However, ensure proper PCB layout and decoupling to minimize electromagnetic interference (EMI).
-
Handle the device by the body or use an ESD wrist strap or mat to prevent static buildup. Use ESD-sensitive handling and storage procedures to prevent damage.
