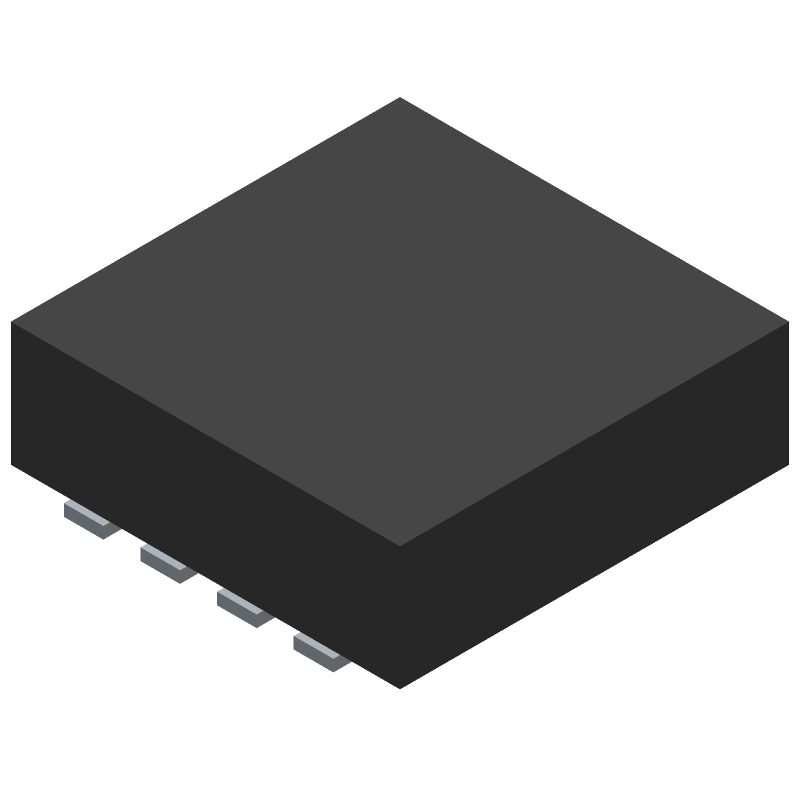

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FDMC610P by onsemi
Results Overview of FDMC610P by onsemi
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
FDMC610P Information
FDMC610P by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FDMC610P
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
46AC0779
|
Newark | Mosfet, P-Ch, -12V, -80A, Power 33-8, Channel Type:P Channel, Drain Source Voltage Vds:12V, Continuous Drain Current Id:80A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:-4.5V, Gate Source Threshold Voltage Max:-700Mv Rohs Compliant: Yes |Onsemi FDMC610P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4586 |
|
$1.3600 / $2.1800 | Buy Now |
|
DISTI #
38X5352
|
Newark | P-Channel Ertrench Mosfet/Reel Rohs Compliant: Yes |Onsemi FDMC610P RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.9440 / $1.1900 | Buy Now |
|
DISTI #
FDMC610PCT-ND
|
DigiKey | MOSFET P-CH 12V 80A POWER33 Min Qty: 1 Lead time: 21 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2680 In Stock |
|
$0.9147 / $2.3900 | Buy Now |
|
DISTI #
FDMC610P
|
Avnet Americas | Power MOSFET, P Channel, 12 V, 80 A, 0.0028 ohm, Power 33, Surface Mount - Tape and Reel (Alt: FDMC610P) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 21 Weeks, 0 Days Container: Reel | 0 |
|
$0.8609 / $0.8924 | Buy Now |
|
DISTI #
512-FDMC610P
|
Mouser Electronics | MOSFETs P-CH PowerTrench MOSFET RoHS: Compliant | 1755 |
|
$0.9140 / $2.2800 | Buy Now |
|
DISTI #
V72:2272_06337867
|
Arrow Electronics | Trans MOSFET P-CH 12V 22A 8-Pin Power 33 T/R Min Qty: 1 Package Multiple: 1 Lead time: 21 Weeks Date Code: 2214 Container: Cut Strips | Americas - 282 |
|
$0.9385 / $1.0820 | Buy Now |
|
|
Onlinecomponents.com | P-channel Powertrench Mosfet - 8LD, Pqfn, Dual, Jedec MO-240 Ba, 3.3X3.3MM, Single Tied Dap RoHS: Compliant | 0 |
|
$0.9080 / $1.9030 | Buy Now |
|
DISTI #
85982798
|
Verical | Trans MOSFET P-CH 12V 22A 8-Pin Power 33 T/R Min Qty: 242 Package Multiple: 1 Date Code: 2101 | Americas - 65959 |
|
$0.9605 / $1.5500 | Buy Now |
|
DISTI #
85987283
|
Verical | Trans MOSFET P-CH 12V 22A 8-Pin Power 33 T/R Min Qty: 242 Package Multiple: 1 Date Code: 2401 | Americas - 20852 |
|
$0.9605 / $1.5500 | Buy Now |
|
DISTI #
85988105
|
Verical | Trans MOSFET P-CH 12V 22A 8-Pin Power 33 T/R Min Qty: 242 Package Multiple: 1 Date Code: 2201 | Americas - 20418 |
|
$0.9605 / $1.5500 | Buy Now |
Part Details for FDMC610P
FDMC610P CAD Models
FDMC610P Part Data Attributes
|
|
FDMC610P
onsemi
Buy Now
Datasheet
|
Compare Parts:
FDMC610P
onsemi
P-Channel PowerTrench® MOSFET -12V. -80A, 3.9mΩ, PQFN-8, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | PQFN-8 | |
| Package Description | ROHS COMPLIANT, POWER 33, 8 PIN | |
| Manufacturer Package Code | 483AK | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 12 V | |
| Drain Current-Max (ID) | 22 A | |
| Drain-source On Resistance-Max | 0.0039 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | MO-240BA | |
| JESD-30 Code | S-PDSO-N5 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 5 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 48 W | |
| Pulsed Drain Current-Max (IDM) | 200 A | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
FDMC610P Frequently Asked Questions (FAQ)
-
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
-
Ensure proper heat sinking, use a thermal interface material (TIM) between the device and heat sink, and follow the recommended PCB layout guidelines. Also, consider derating the device's power handling at high temperatures.
-
The maximum allowed voltage on the gate driver output is 15V, but it's recommended to keep it below 12V to ensure reliable operation and minimize electromagnetic interference (EMI).
-
Yes, the FDMC610P can be used in a half-bridge configuration, but ensure that the bootstrap capacitor is properly sized and the dead time is set correctly to prevent shoot-through currents.
-
Use a shielded cable for the gate driver output, keep the PCB layout compact, and use a common mode choke or ferrite bead to filter the output. Also, ensure proper grounding and decoupling of the device.
