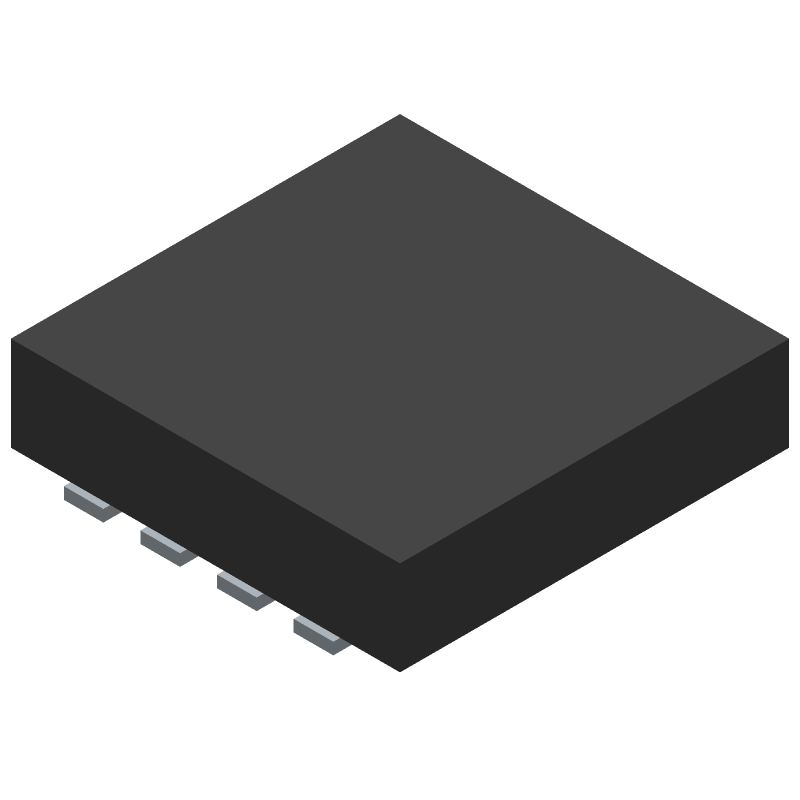

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FDMC2674 by onsemi
Results Overview of FDMC2674 by onsemi
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
FDMC2674 Information
FDMC2674 by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FDMC2674
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
02M6812
|
Newark | N Channel Mosfet, 220V, 7A Power 33, Full Reel, Channel Type:N Channel, Drain Source Voltage Vds:220V, Continuous Drain Current Id:7A, Transistor Mounting:Surface Mount, Rds(On) Test Voltage:10V, Power Dissipation:42W Rohs Compliant: Yes |Onsemi FDMC2674 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
64AH3456
|
Newark | Mosfet, N-Ch, 220V, 7A, Mlp-8, Transistor Polarity:N Channel, Continuous Drain Current Id:7A, Drain Source Voltage Vds:220V, On Resistance Rds(On):0.305Ohm, Rds(On) Test Voltage Vgs:10V, Threshold Voltage Vgs:3.4V, Power Dissipation Rohs Compliant: Yes |Onsemi FDMC2674 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
Buy Now | |
|
DISTI #
FDMC2674
|
TME | Transistor: N-MOSFET, unipolar, 220V, 7A, Idm: 13.8A, 42W, MLP8 Min Qty: 1 | 0 |
|
$0.9400 / $1.4300 | RFQ |
|
DISTI #
FDMC2674
|
Avnet Silica | Trans MOSFET NCH 220V 1A 8Pin MLP EP TR (Alt: FDMC2674) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
FDMC2674
|
EBV Elektronik | Trans MOSFET NCH 220V 1A 8Pin MLP EP TR (Alt: FDMC2674) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for FDMC2674
FDMC2674 CAD Models
FDMC2674 Part Data Attributes
|
|
FDMC2674
onsemi
Buy Now
Datasheet
|
Compare Parts:
FDMC2674
onsemi
N-Channel UltraFET Trench MOSFET 220V, 7.0A, 366mΩ, WDFN-8, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | WDFN-8 | |
| Package Description | 3.30 X 3.30 MM, ROHS COMPLIANT, MLP-8 | |
| Manufacturer Package Code | 511DH | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Avalanche Energy Rating (Eas) | 13 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 220 V | |
| Drain Current-Max (ID) | 1 A | |
| Drain-source On Resistance-Max | 0.366 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | S-PDSO-F5 | |
| JESD-609 Code | e4 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 5 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 2.4 W | |
| Pulsed Drain Current-Max (IDM) | 13.8 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
