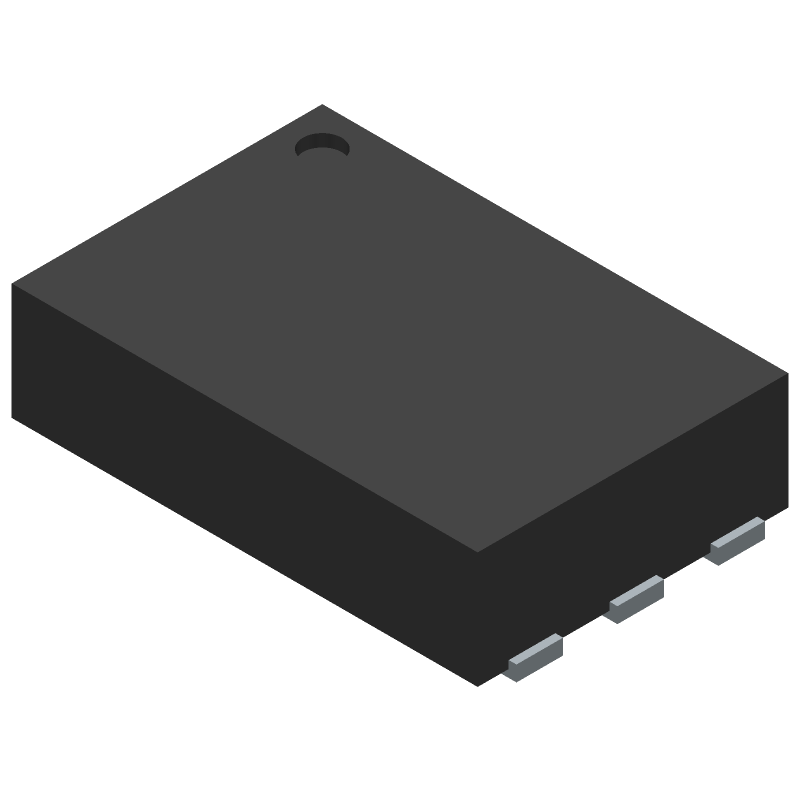

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FDMB2308PZ by onsemi
Results Overview of FDMB2308PZ by onsemi
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
Motor control systems
FDMB2308PZ Information
FDMB2308PZ by onsemi is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FDMB2308PZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
54AH8634
|
Newark | Mosfet, Dual P-Ch, 7A, 150Deg C, 2.2W Rohs Compliant: Yes |Onsemi FDMB2308PZ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1465 |
|
$1.3100 / $2.4900 | Buy Now |
|
DISTI #
96W6419
|
Newark | Dual Commondrain P-Ch. Po/Reel |Onsemi FDMB2308PZ RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.8710 / $1.0900 | Buy Now |
|
DISTI #
FDMB2308PZCT-ND
|
DigiKey | MOSFET 2P-CH 6MLP Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
8954 In Stock |
|
$0.8462 / $2.8300 | Buy Now |
|
DISTI #
FDMB2308PZ
|
Avnet Americas | Transistor MOSFET Array Dual P-CH 20V 7A 6-Pin MLP T/R - Tape and Reel (Alt: FDMB2308PZ) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
FDMB2308PZ
|
Avnet Americas | Transistor MOSFET Array Dual P-CH 20V 7A 6-Pin MLP T/R - Tape and Reel (Alt: FDMB2308PZ) RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Lead time: 0 Weeks, 2 Days Container: Reel | 0 |
|
$0.8122 / $0.9202 | Buy Now |
|
DISTI #
512-FDMB2308PZ
|
Mouser Electronics | MOSFETs Dual Com Drain -20V P-Channel Pwr Trench RoHS: Compliant | 4161 |
|
$0.8460 / $2.4300 | Buy Now |
|
DISTI #
FDMB2308PZ
|
TME | Transistor: P-MOSFET x2, unipolar, -20V, -7A, Idm: -30A, 2.2W, WDFN6 Min Qty: 1 | 0 |
|
$1.1000 / $1.8200 | RFQ |
|
DISTI #
FDMB2308PZ
|
Richardson RFPD | POWER MOSFET TRANSISTOR RoHS: Compliant Min Qty: 1 | 0 |
|
RFQ | |
|
DISTI #
FDMB2308PZ
|
Avnet Silica | Transistor MOSFET Array Dual PCH 20V 7A 6Pin MLP TR (Alt: FDMB2308PZ) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 21 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
FDMB2308PZ
|
EBV Elektronik | Transistor MOSFET Array Dual PCH 20V 7A 6Pin MLP TR (Alt: FDMB2308PZ) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for FDMB2308PZ
FDMB2308PZ CAD Models
FDMB2308PZ Part Data Attributes
|
|
FDMB2308PZ
onsemi
Buy Now
Datasheet
|
Compare Parts:
FDMB2308PZ
onsemi
Dual Common Drain P-Channel PowerTrench® MOSFET -20V, -7A, 36mΩ, WDFN-6, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | WDFN-6 | |
| Package Description | 3 X 2 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, MLP, MICROFET-6 | |
| Manufacturer Package Code | 511CX | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | DRAIN | |
| Configuration | COMMON DRAIN, 2 ELEMENTS WITH BUILT-IN DIODE | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 510 pF | |
| JEDEC-95 Code | MO-229 | |
| JESD-30 Code | R-PDSO-N6 | |
| JESD-609 Code | e4 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 6 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 2.2 W | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Element Material | SILICON | |
| Turn-off Time-Max (toff) | 211 ns | |
| Turn-on Time-Max (ton) | 77 ns |
FDMB2308PZ Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the FDMB2308PZ is -40°C to 150°C.
-
To ensure proper biasing, connect the gate pin to a voltage source through a resistor, and the source pin to ground through a resistor. The recommended bias voltage is 5V to 15V.
-
The maximum current rating for the FDMB2308PZ is 2.3A.
-
To protect the FDMB2308PZ from ESD, handle the device with an anti-static wrist strap or mat, and ensure the PCB has ESD protection circuits.
-
Yes, the FDMB2308PZ is suitable for high-frequency switching applications up to 1 MHz, but ensure proper PCB layout and decoupling to minimize parasitic inductance and capacitance.
