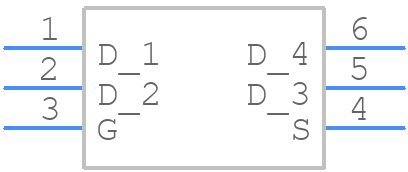

Part Symbol
-
Footprint
-

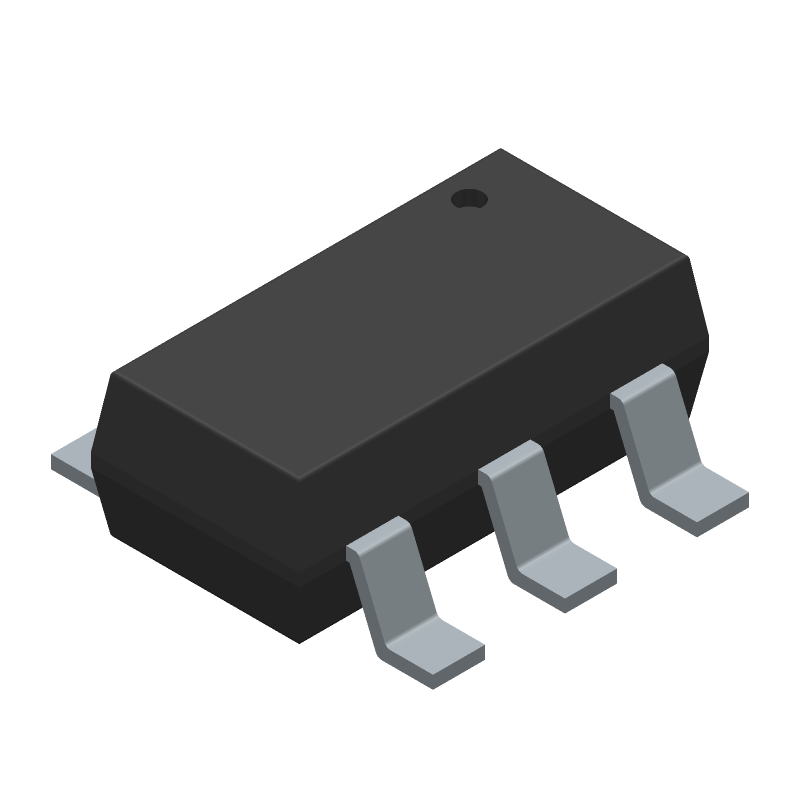

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FDC3612 by onsemi
Results Overview of FDC3612 by onsemi
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
FDC3612 Information
FDC3612 by onsemi is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FDC3612
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47T5013
|
Newark | Mosfet Transistor, N Channel, 2.6 A, 100 V, 125 Mohm, 10 V, 2.3 V Rohs Compliant: Yes |Onsemi FDC3612 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5165 |
|
$0.2390 / $0.6000 | Buy Now |
|
DISTI #
79AH2465
|
Newark | Fet 100V 125.0 Mohm Ssot6 Rohs Compliant: Yes |Onsemi FDC3612 RoHS: Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Reel | 3000 |
|
$0.2020 | Buy Now |
|
DISTI #
86AK4921
|
Newark | Mosfet, N-Ch, 100V, 2.6A, Supersot Rohs Compliant: Yes |Onsemi FDC3612 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.2070 / $0.2170 | Buy Now |
|
DISTI #
FDC3612CT-ND
|
DigiKey | MOSFET N-CH 100V 2.6A SUPERSOT6 Min Qty: 1 Lead time: 11 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
6841 In Stock |
|
$0.1911 / $0.5300 | Buy Now |
|
DISTI #
FDC3612
|
Avnet Americas | - Tape and Reel (Alt: FDC3612) RoHS: Compliant Min Qty: 6000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 3000 |
|
$0.1896 / $0.2018 | Buy Now |
|
DISTI #
512-FDC3612
|
Mouser Electronics | MOSFETs 100V NCh PowerTrench RoHS: Compliant | 30218 |
|
$0.1980 / $0.5200 | Buy Now |
|
DISTI #
V36:1790_06298544
|
Arrow Electronics | Trans MOSFET N-CH 100V 2.6A 6-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 11 Weeks Date Code: 2339 | Americas - 60000 |
|
$0.1790 | Buy Now |
|
DISTI #
E02:0323_00844219
|
Arrow Electronics | Trans MOSFET N-CH 100V 2.6A 6-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Date Code: 2451 | Europe - 21000 |
|
$0.2024 | Buy Now |
|
|
Onlinecomponents.com | Trans Mosfet N-ch 100V 2.6A 6-PIN TSOT-23 T/r / Mosfet N-ch 100V 2.6A SSOT-6 RoHS: Compliant | 0 |
|
$0.1845 / $0.2066 | Buy Now |
|
DISTI #
76879242
|
Verical | Trans MOSFET N-CH 100V 2.6A 6-Pin TSOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2339 | Americas - 60000 |
|
$0.1790 | Buy Now |
Part Details for FDC3612
FDC3612 CAD Models
FDC3612 Part Data Attributes
|
|
FDC3612
onsemi
Buy Now
Datasheet
|
Compare Parts:
FDC3612
onsemi
N-Channel PowerTrench® MOSFET 100V 2.6A, 125mΩ, TSOT-23-6, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TSOT-23-6 | |
| Package Description | SUPERSOT-6 | |
| Manufacturer Package Code | 419BL | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 100 V | |
| Drain Current-Max (ID) | 2.6 A | |
| Drain-source On Resistance-Max | 0.125 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 6 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | N-CHANNEL | |
| Power Dissipation-Max (Abs) | 0.8 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
