Transistors / Power Field-Effect Transistors / FDB070AN06A0-F085
Datasheets
FDB070AN06A0-F085 by:

N-Channel PowerTrench® MOSFET 60V, 80A, 6.1mΩ, TO-263 2L (D2PAK), 800-REEL, Automotive Qualified

Part Details for FDB070AN06A0-F085 by onsemi

Results Overview of FDB070AN06A0-F085 by onsemi

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

FDB070AN06A0-F085 Information

FDB070AN06A0-F085 by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for FDB070AN06A0-F085

Part # Distributor Description Stock Price Buy
DISTI # 48AC0880
Newark Nmos D2Pak 60V 7 Mohm/Reel Rohs Compliant: Yes |Onsemi FDB070AN06A0-F085 RoHS: Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now

Part Details for FDB070AN06A0-F085

FDB070AN06A0-F085 CAD Models

  • Part Symbol

    Part Symbol

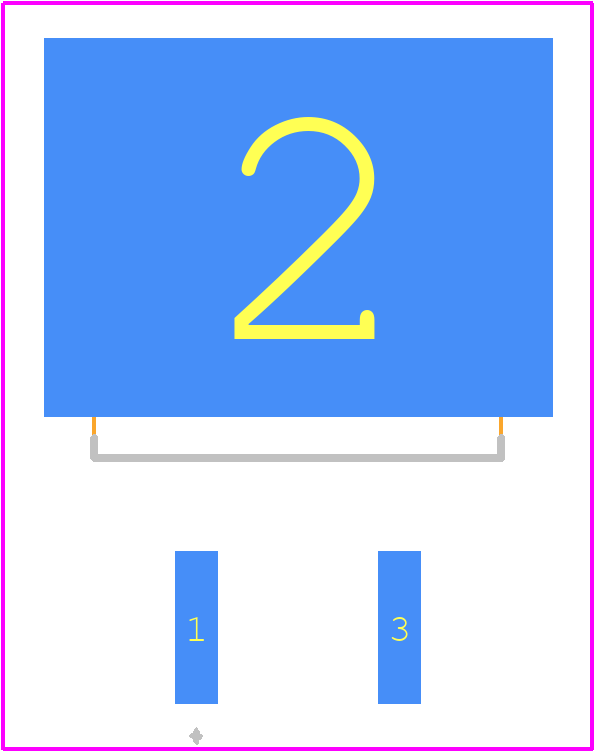

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

FDB070AN06A0-F085 Part Data Attributes

Parametric Data
FDB070AN06A0-F085 onsemi
Buy Now Datasheet
Compare Parts:
FDB070AN06A0-F085 onsemi N-Channel PowerTrench® MOSFET 60V, 80A, 6.1mΩ, TO-263 2L (D2PAK), 800-REEL, Automotive Qualified
Pbfree Code Yes
Part Life Cycle Code End Of Life
Ihs Manufacturer ON SEMICONDUCTOR
Part Package Code TO-263 2L (D2PAK)
Package Description ROHS COMPLIANT PACKAGE-3/2
Manufacturer Package Code 418AJ
Reach Compliance Code compliant
Samacsys Manufacturer onsemi
Configuration Single
Drain Current-Max (Abs) (ID) 15 A
FET Technology METAL-OXIDE SEMICONDUCTOR
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 175 °C
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 175 W
Surface Mount YES
